3300 NSv – Bently Nevada Proximity Probes | 330903-00-10-05-02-CN Metric

Overview

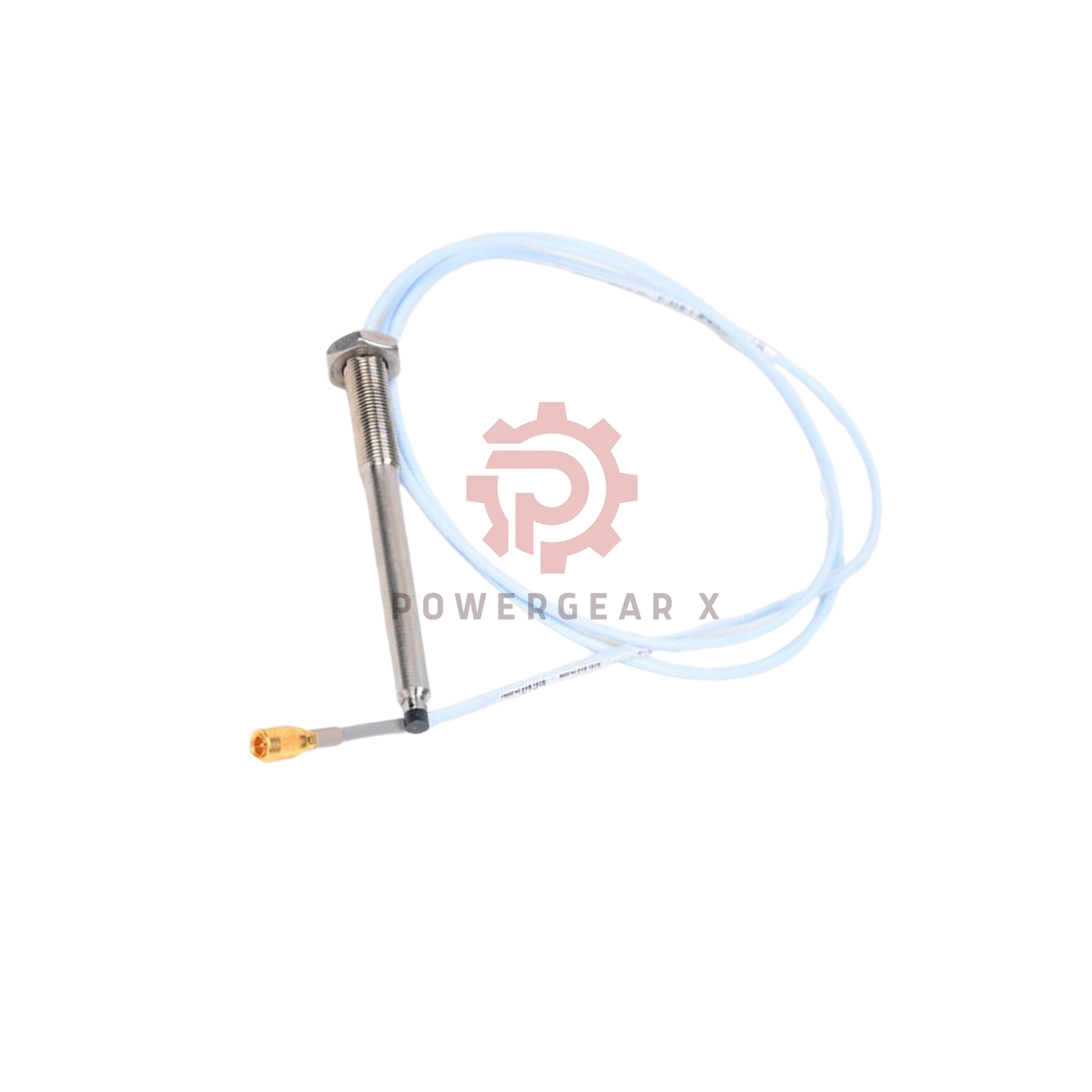

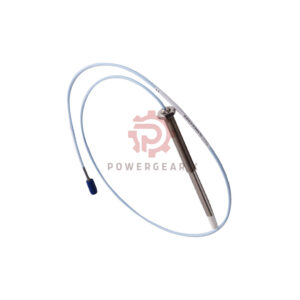

The Bently Nevada 330903-00-10-05-02-CN NSv Proximity Probe delivers robust performance with a 100 mm case for extended installations. Designed for country-specific compliance, it features a standard cable and ClickLoc connector. Like all NSv probes, it exceeds 3300 RAM models in durability and ships factory-sealed with a 12-month warranty.

Model Suffix Details

• -00- 0 mm unthreaded section
• -10- 100 mm case length
• -05- 0.5 m (20 in) cable
• -02- ClickLoc connector + standard cable
• -CN Country-specific certifications

Technical Specifications

• Part Number: 330903-00-10-05-02-CN
• Probe Resistance: 4.0 Ω ±0.5 Ω (0.5 m length)
• Cable Data:
  • Center conductor: 0.220 Ω/m (±0.25%)
  • Shield resistance: 0.066 Ω/m (±0.8%)
  • Capacitance: 69.9 pF/m (±1.5 pF)
• Installation:
  • Thread: M8x1 (12 mm engagement)
  • Max torque: 7.3 N·m (65 in·lb)
  • Bend radius: 25.4 mm minimum
• Signal Range: -1 to -13 Vdc (0.25-1.75 mm)
• Scale Factor: 7.87 V/mm (±12.5% tolerance)
• Temperature: Operates from -52°C to +177°C

Key Features

For more detailed information:3300 NSv Proximity Transducer System Datasheet
