3300 NSv – Bently Nevada 330905-00-25-05-12-05 | Proximity Probes

Product Description

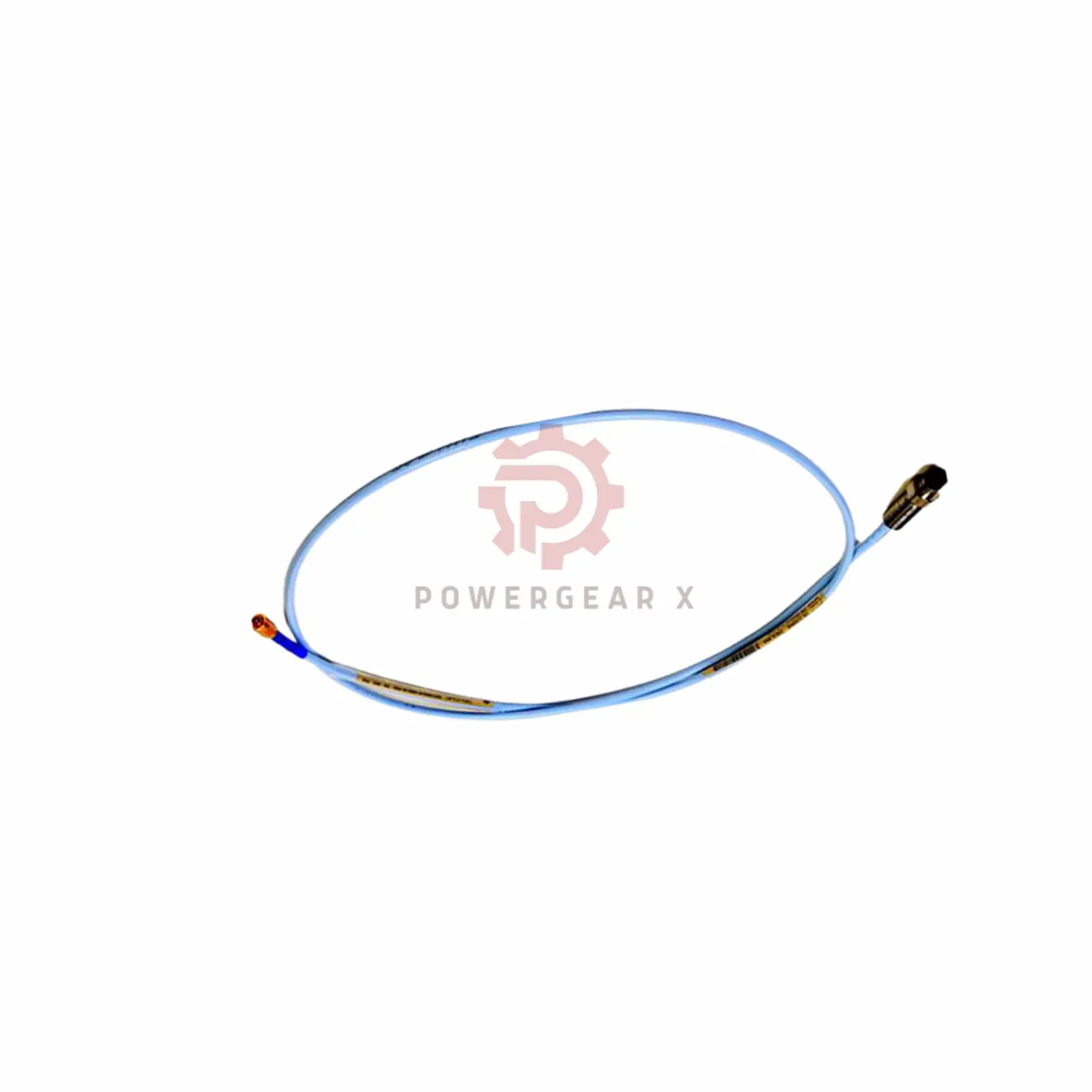

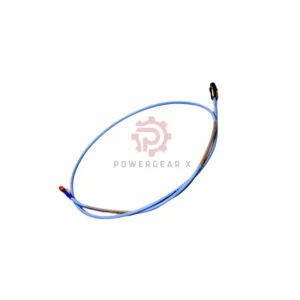

The Bently Nevada 3300 NSv Proximity Probe (Model: 330905-00-25-05-12-05) is a high-performance sensor designed for precision vibration and position monitoring. Featuring an M10x1 thread and 0.5-meter unarmored cable, this probe offers superior chemical resistance and compatibility with previous 3300 RAM probes. Ideal for harsh industrial environments, including process compressors.

Technical Data

• Brand: Bently Nevada
• Range: 1.5 mm (60 mils)
• Accuracy: ±0.06 mm (±2.3 mils)
• Output Signal: -1 to -13 Vdc (ISF: 7.87 V/mm ±12.5%/-20%)
• Operating Temp: -52°C to +177°C
• Frequency Response: 0–10 kHz (±3 dB)
• Cable: 0.5m FEP-insulated, Miniature Coaxial ClickLoc connector

Model Suffix Explanation

The suffix codes in the model 330905-00–25–05–12–05 define specific configurations:

• -00: Unthreaded length option = 0 mm (no unthreaded section).
• -25: Overall case length = 250 mm.
• -05: Total probe cable length = 0.5 meters (20 in).
• -12: Connector type = Miniature coaxial ClickLoc with FluidLoc® cable.
• -05: Agency approvals = Multiple global certifications.

Installation Guide

• Torque: 7.5 N•m (66 in•lb) recommended; 22.6 N•m max.
• Gap Setting: 1.0 mm (40 mils)
• Min. Target Size: 13 mm (0.5″) diameter

Package Contents

• 3300 NSv Probe
• 0.5m FluidLoc cable
• Miniature Coaxial ClickLoc connector
• Installation manual

Contact Us

Phone: +86 180 3000 5825

Email: [email protected]

For more detailed information:3300 NSv Proximity Transducer System Datasheet
