3300 NSv – Bently Nevada | 330903-00-02-50-01-00 | Metric Proximity Probes

Product Overview

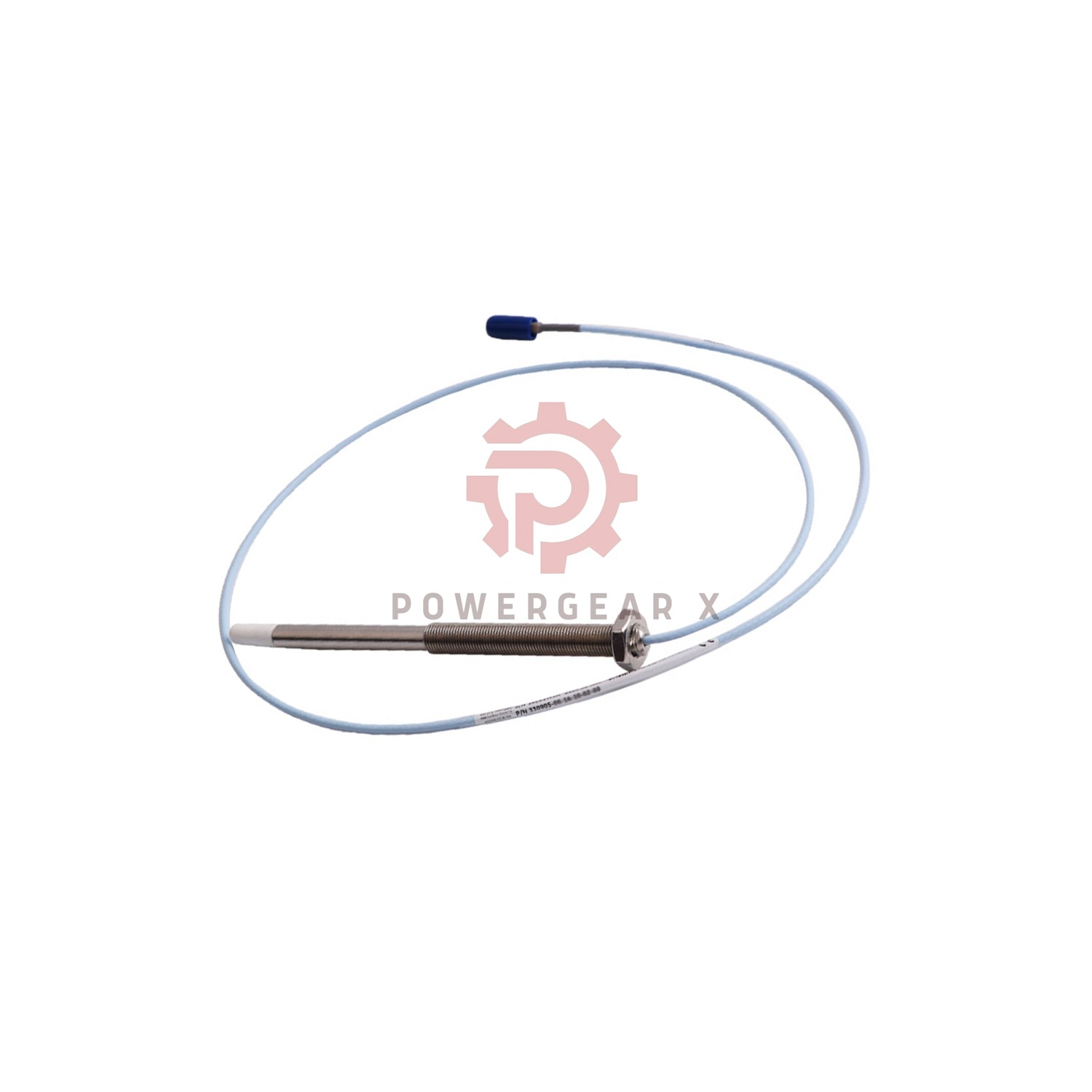

The Bently Nevada 330903-00-02-50-01-00 proximity probe provides reliable vibration monitoring in tight spaces. Designed for industrial compressors and turbines, this 20mm compact sensor features a 5m cable with ClickLoc connector protection. It operates in extreme temperatures (-62°F to 351°F) and offers 3× greater chemical resistance than older RAM probes.

Key Details

• Brand: Bently Nevada
• Model: 330903-00-02-50-01-00
• Code Breakdown:
  • -00-: No protective armor
  • -02-: 20mm stainless steel case
  • -50-: 5.0 meter cable length
  • -01-: ClickLoc connector with protector
  • -00: No safety certifications required

Performance Data

• Electrical:
  • 5.3Ω ±0.7 resistance at 5m
  • 0.220Ω/m center conductor
  • 69.9pF/m cable capacitance
• Mechanical:
  • M8x1 thread (12mm engagement)
  • 25.4mm minimum bend radius
  • 5.1N·m installation torque

Measurement Features

• 7.87V/mm sensitivity (±12.5%)
• 0.25-1.75mm linear measurement range
• 10kHz frequency response

Durability

• 304 stainless steel housing
• Viton O-ring pressure seal

For more detailed information:3300 NSv Proximity Transducer System Datasheet
