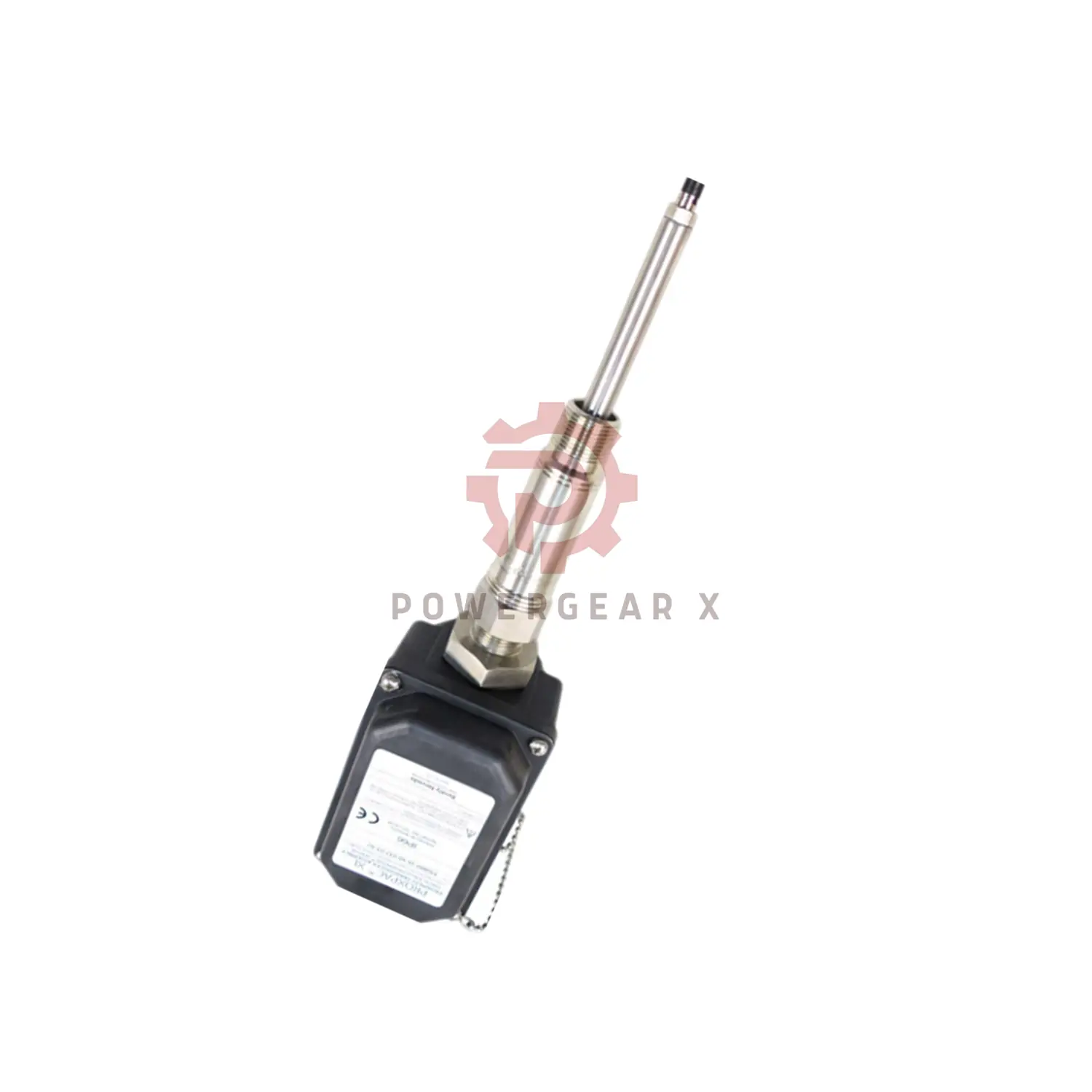

Name: 32000-29-05-10-072-07-02 Bently Nevada 8mm Probe Housing
SKU: 32000-29-05-10-072-07-02
Availability: InStock

Product details

Manufacturer: Bently Nevada (Made in U.S.A.)
- Product series: 32000
  - Full model number: 32000-28-05-05-110-03-02
    - Product type: Metric Proximity Probe Housing Assembly
      - Probe option (28): 3300 XL 8mm probe, multiple approvals
      - Probe cable length (05): 0.5m (20in)
      - Standoff adapter (05): 50mm
      - Probe penetration (110): 110mm
      - Fittings (03): Two plugs, one M20 fitting, one cable seal grip with grommets for armored probe cable
      - Mounting thread (02): 3/4-14 NPT (required for standoff adapter)

Protection ratings:
- Type 4X (CSA certified)
- IP66 (verified by SC115582-1)
- CENELEC EN50014 for electrostatic dissipation in hazardous areas
Materials:
- Housing: Glass-reinforced PPS thermoplastic with conductive fibers
- Sleeve & retaining chain: AISI 304 stainless steel
- Outer sleeve & exterior screws: AISI 303 stainless steel
- O-ring material: Neoprene®
Impact strength:
- BASEEFA certified: 4 Joule impacts at -39°C and +115°C
- CSA verified: 7 Joule impact at ambient temperature
Temperature rating: -51°C to +105°C (-60°F to +221°F)
Weight: 1.2 kg

Why choose 32000-28-05-05-110-03-02? This housing is built for harsh environments. The combination of 3300 XL 8mm probe and 110mm penetration makes it ideal for large rotating machinery like steam turbines and compressors. The 3/4-14 NPT mounting thread ensures a tight seal in high-vibration areas.
Application fit: Perfect for refineries, power plants, and offshore platforms. The IP66 and Type 4X ratings mean it withstands water jets and corrosive environments. The conductive PPS housing prevents static buildup in hazardous zones.
Comparison tip: If you need a shorter penetration or different thread type, check the 31000 series below. For most metric installations, this 32000 model offers the best balance of probe protection and installation flexibility.

Suitable for:
- Bently Nevada 3300 XL 8mm proximity probes
- Radial vibration and axial position monitoring on turbines, compressors, pumps
- Hazardous areas requiring electrostatic dissipation (CENELEC Zone 1/2)
- Outdoor installations needing IP66/Type 4X protection

32000 vs 31000 series housings:
- 32000-28-05-05-110-03-02 (this model): Metric design, 110mm penetration, 3/4-14 NPT thread, includes M20 fitting and cable seal grip. Best for new metric installations with armored cable.
- 31000-16-05-00-036-03-00: Alternative 31000 series housing, different mounting options. Check if you need shorter probe length or inch dimensions.
- 31000-16-05-00-035-02-02: 31000 housing kit with sensor included. Ideal for retrofit if you need both housing and probe in one package.
Selection advice: Choose 32000 for 8mm metric probes and longer penetration. Choose 31000 series for 5/8 inch probes or when inch‑based threads are required.

Included: 1x Bently Nevada 32000 probe housing assembly (fully assembled with fittings)
Documentation: Installation instruction sheet
Warranty: 12 months against manufacturing defects
Shipping: 12-24 hour dispatch. Carriers: FedEx, UPS, DHL (tracked and insured)

What is the difference between 32000 and 3300 series housings?
32000 is the metric housing assembly designed specifically for 3300 XL 8mm probes. 3300 series usually refers to the probe itself, not the housing.
Can I use this housing with an armored probe cable?
Yes, the fittings include a cable seal grip with grommets for armored probe cable – that’s the “03” fittings option.
Is this housing approved for Zone 1 hazardous areas?
The housing meets CENELEC EN50014 for electrostatic dissipation of plastic materials in hazardous areas. It is suitable for Zone 1/2 when properly installed.
What torque should I use for the mounting thread?
Tighten the 3/4-14 NPT thread to 30-35 Nm (22-26 ft·lb). Do not over-tighten as it may damage the PPS housing.
How do I choose between 110mm and other penetration lengths?
Measure the distance from mounting surface to the target. 110mm is standard for large machines. For smaller machines consider 75mm or 50mm options.
Does the housing include the probe?
No, this is housing only. You need to order the 3300 XL 8mm probe separately (probe option 28 specifies compatibility).
What is the lead time for this model?
Stock items ship within 12-24 hours. Contact us for bulk orders.
Can I use this housing with third‑party probes?
It is optimized for Bently Nevada 3300 XL 8mm probes. Other 8mm probes may fit but performance is not guaranteed.
