32000-28-05-05-030-03-02 IP66 Bently Nevada 32000 Series Probe Housing

Product Overview

• Bently Nevada 32000-28-05-05-030-03-02 is a metric proximity probe housing for industrial machinery protection. It holds the 3300 XL 8 mm probe and works in harsh environments.
• This housing has IP66 and Type 4X protection. It resists water, dust, and corrosion. Use it in hazardous areas with electrostatic dissipation rating.
• Made in U.S.A. from glass-reinforced PPS with stainless steel fittings. It handles extreme temperatures from -51°C to +105°C.

Technical Specifications

• Brand & model – Bently Nevada / 32000-28-05-05-030-03-02
• Product type – Metric proximity probe housing
• Probe option – 28 = 3300 XL 8 mm probe, multiple approvals
• Cable length – 05 = 0.5 m (20 in)
• Standoff adapter – 05 = 50 mm
• Probe penetration – 030 = 30 mm
• Fittings – 03 = two plugs, one M20 fitting, cable seal grip for armored cable
• Mounting thread – 02 = 3/4-14 NPT
• Protection ratings – Type 4X (CSA), IP66 (SC115582-1), CENELEC EN50014 for hazardous areas
• Housing material – Glass-reinforced PPS with conductive fibers
• Sleeve material – AISI 304 stainless steel
• Outer sleeve & screws – AISI 303 stainless steel
• O-ring material – Neoprene®
• Impact strength – 4 Joule at -39°C and 115°C (BASEEFA), 7 Joule at room temp (CSA)
• Temperature range – -51°C to +105°C (-60°F to +221°F)
• Weight – 1.2 kg

Model Number Structure & Suffixes

• 32000 – Series – Proximity probe housing
• ├─ 28 – Probe option: 3300 XL 8 mm probe, multiple approvals
• ├─ 05 – Probe cable length: 0.5 m (20 in)
• ├─ 05 – Standoff adapter: 50 mm
• ├─ 030 – Probe penetration: 30 mm
• ├─ 03 – Fittings: Two plugs, one M20 fitting, cable seal grip for armored probe cable
• └─ 02 – Mounting thread: 3/4-14 NPT

Complete part number: 32000-28-05-05-030-03-02

32000 Proximity Probe Housing Assemblies – Key Features

• Hazardous area certified – CENELEC EN50014 for electrostatic dissipation
• Dual protection ratings – IP66 (water/dust) and Type 4X (corrosion resistant)
• Extreme temperature range – -51°C to +105°C for outdoor or process areas
• High impact strength – tested to 4 Joules at -39°C and 115°C
• Corrosion resistant materials – PPS housing with stainless steel fittings

Expert Review – Manager’s Insight

• Why choose this housing? The 32000-28-05-05-030-03-02 gives you proven Bently Nevada reliability for critical machinery monitoring. The 3300 XL 8 mm probe is industry standard for vibration measurement.
• Installation tip: The 3/4-14 NPT mounting thread mates with standard industrial fittings. Use the cable seal grip for armored cable to maintain IP66 rating.
• Durability: Glass-reinforced PPS with conductive fibers prevents static buildup in hazardous areas. Stainless steel sleeve and screws resist corrosion for years.
• Temperature performance: Tested from -51°C to +105°C – suitable for turbines, compressors, pumps in cold climates or hot processes.

Compatible Equipment & Applications

• Rotating machinery: Turbines, compressors, pumps, motors, generators
• Industries: Oil & gas, power generation, petrochemical, mining, pulp & paper
• Monitoring systems: Bently Nevada 3500, 3300, and System 1 platforms
• Hazardous areas: Zone 2 locations with electrostatic dissipation requirements
• Harsh environments: Outdoor, offshore, desert, arctic installations

Model Comparison – Select the Right Housing

• 32000-28-05-05-030-03-02 (this model) – 8 mm probe, 0.5 m cable, 50 mm standoff, 30 mm penetration, M20 fittings, 3/4-14 NPT. Best for standard metric installations with armored cable.
• └─ 31000-28-05-00-028-01-02 – 8 mm probe, 0.5 m cable, no standoff, 28 mm penetration, basic fittings. Use when space is limited and no standoff needed.
• └─ 31000-16-05-15-040-02-02 – 5 mm probe, 0.5 m cable, 15 mm standoff, 40 mm penetration, 1/2-20 NPT. Choose for smaller machines requiring 5 mm probe.

Selection tip: For most turbines and large compressors, the 32000 series with 8 mm probe is standard. Use 31000 series for smaller pumps or motors.

Package Contents & Warranty

• 1 x Bently Nevada 32000-28-05-05-030-03-02 proximity probe housing
• 3300 XL 8 mm probe installed
• Mounting fittings and cable seal grip
• 12-month warranty against manufacturing defects

Shipping & Delivery

• Fast shipping: 12-24 hour dispatch for in-stock items
• Carriers: FedEx, UPS, DHL – you choose at checkout
• Full tracking and insurance included worldwide

Frequently Asked Questions

• Q: What is the difference between 32000 and 31000 series housings?
  A: 32000 series has metric dimensions and wider temperature range. 31000 series is inch-based. Use 32000 for new metric machines, 31000 for retrofitting older equipment.
• Q: Can I use this housing with existing 3300 monitors?
  A: Yes. The 3300 XL 8 mm probe inside works with all Bently Nevada 3300, 3500, and System 1 monitoring systems.
• Q: Is this housing approved for Zone 1 hazardous areas?
  A: It has CENELEC EN50014 rating for electrostatic dissipation in hazardous areas. For Zone 1, check if your area requires additional approvals. It is primarily designed for Zone 2.
• Q: What tools do I need for installation?
  A: Standard wrench for 3/4-14 NPT mounting. Use screwdriver for cable grip. Follow manual for proper probe gap adjustment.
• Q: How long does delivery take?
  A: We ship within 12-24 hours via FedEx, UPS, or DHL. Transit time depends on your location – typically 2-5 business days worldwide.

Selection Guide – Which Bently Nevada Housing?

• ✔ Choose 32000-28-05-05-030-03-02 for standard metric machines needing 8 mm probe, 50 mm standoff, 30 mm penetration
• ✔ For compact installations with no standoff, consider 31000-28-05-00-028-01-02
• ✔ For smaller machinery requiring 5 mm probe, use 31000-16-05-15-040-02-02
• ✔ Verify mounting thread compatibility – 3/4-14 NPT is standard in North America
• ✔ Check probe cable length – 0.5 m works for close mounting; order extension cables separately if needed

Inquiries: sales@powergearx.com  |
+86 180 3000 5825 (WhatsApp)

Copyright © 2025 Powergear X Automation Limited. All rights reserved.
Original Source: https://www.powergearx.com/

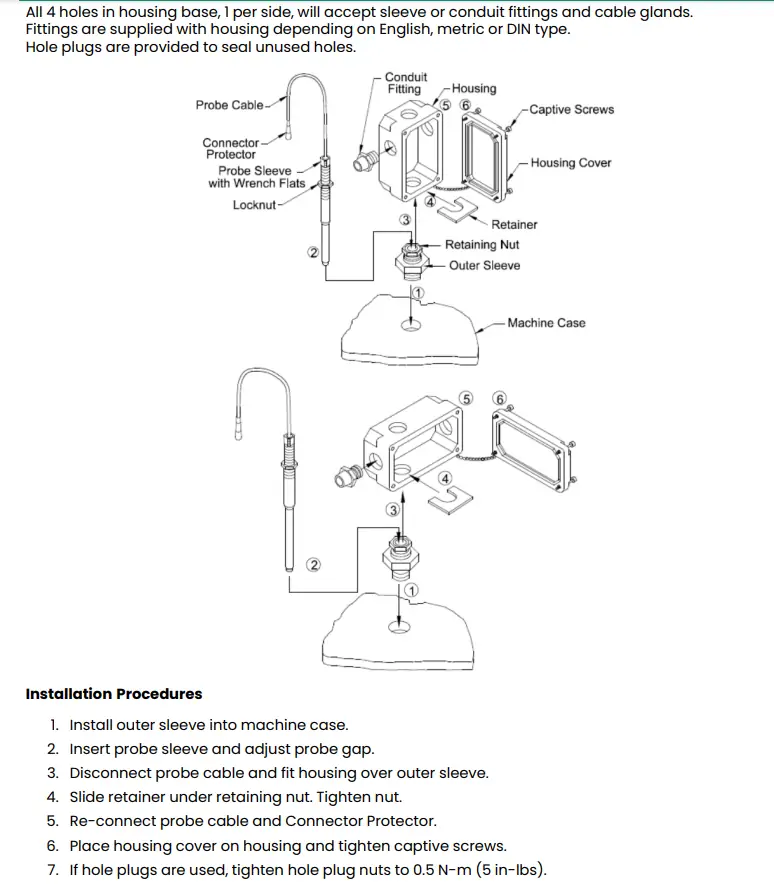

Vertical and Horizontal Profile Views of the 31000 and 32000 Proximity Probe Housings_
