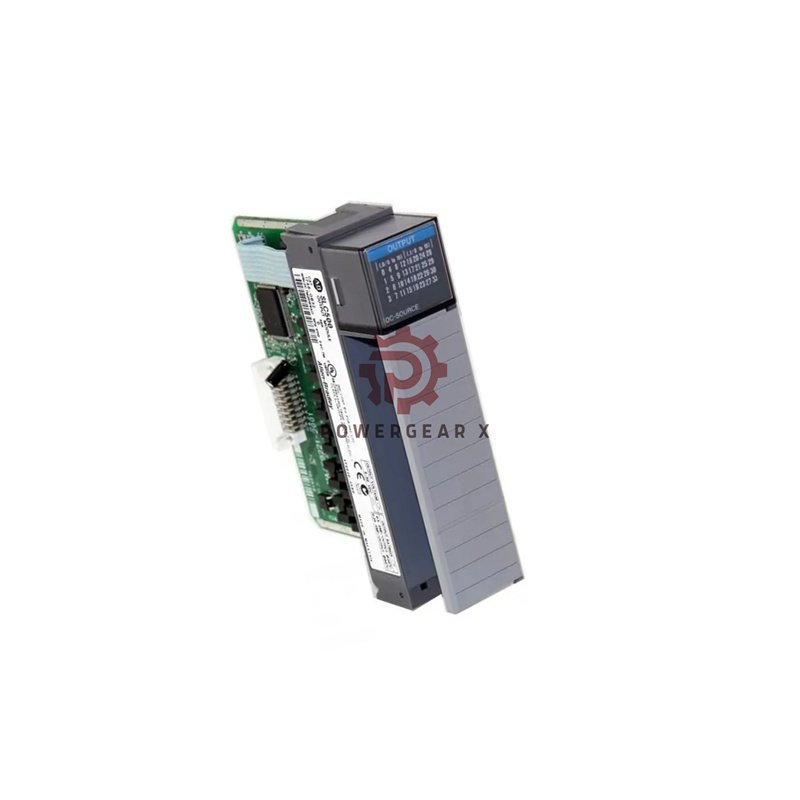

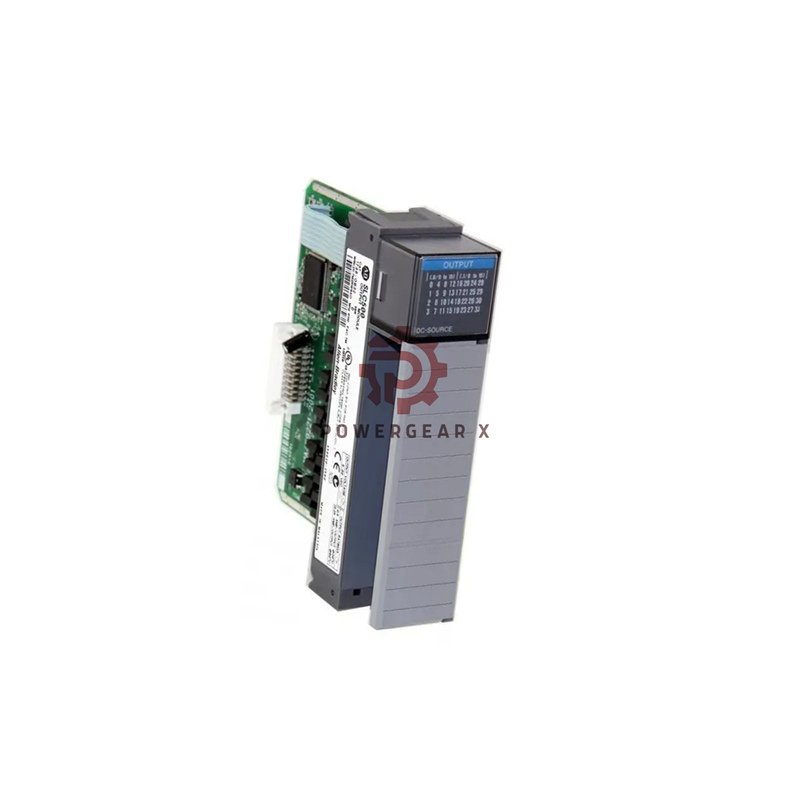

Allen-Bradley 1746-OB32 SLC 500 DC Output Module | High-Density Control
The 1746-OB32 is a digital DC output module. It works with SLC 500 control systems. This module offers thirty-two output channels. It provides 24V DC power for industrial devices. Perfect for controlling lights, solenoids, and relays.
Detailed Technical Specifications
- Brand: Allen-Bradley/Rockwell Automation
- Model: 1746-OB32
- Series: SLC 500
- Type: Digital DC Output Module
- Output Channels: 32
- Output Groups: 2 groups of 16 points
- Output Voltage: 24V DC nominal
- Operating Voltage: 5-50V DC
- Current per Point: 0.5A @ 30°C, 0.25A @ 60°C
- Total Module Current: 8A maximum
- On-State Delay: 0.1ms maximum
- Off-State Delay: 1.0ms maximum
- Leakage Current: 1mA maximum
- Minimum Load Current: 1mA per channel
- Backplane Current: 190mA @ 5V DC
- Isolation Voltage: 1500V AC for 1 minute
- Power Dissipation: 6.45W total
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Surge Current: 1.0A for 1ms (repeatable every 2s)
- Certifications: UL, cUL, Class I Div 2
