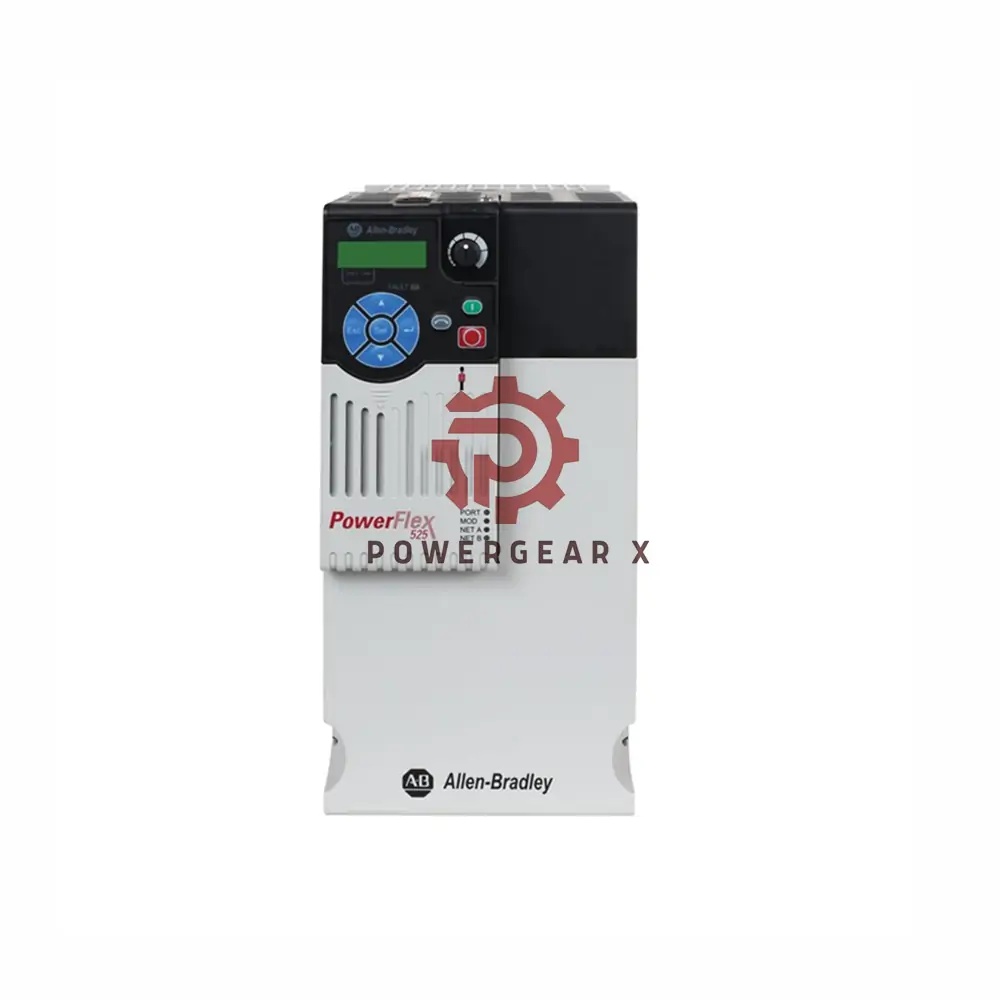

25B-D010N114 Allen-Bradley PowerFlex 525 AC Drive

Allen-Bradley PowerFlex 525 AC Drive – 4.0kW (5.0HP), 380-480V 3-Phase

Industrial-grade variable frequency drive for precision motor control. Regulates speed, torque, and energy usage in demanding applications.

Key Features

• Multi-control methods: V/Hz, Sensorless Vector, PM motor control
• Integrated safety: Safe-Torque Off (STO) functionality
• Dual networking: Built-in RS485 + Ethernet ports
• Heavy-duty rating: 4.0kW/5HP continuous operation

Technical Specifications

• Brand: Allen-Bradley
• Model: 25B-D010N114
• Input: 380-480V AC, 3-phase
• Output: 0-460V AC, 3-phase
• Rated Current: 10.5A
• Power Rating: 4.0kW (5.0HP)
• Frequency Range: 0-500 Hz
• I/O Ports:
  7 digital inputs,
  2 opto outputs,
  2 relay outputs,
  2 analog inputs,
  1 analog output

Communication: RS485, Dual Ethernet (ProfiBus/DeviceNet optional)

Installation & Compatibility

• Mounting: Panel mount (IP20/NEMA Open)
• Frame Size: B
• Motor Compatibility: 3-phase AC induction & PM motors
• EMC Filter: Integrated

Certifications & Support

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL worldwide

Package Includes

• PowerFlex 525 Drive unit
• Installation manual
• Mounting hardware

Frequently Asked Questions

• Q: Does this support single-phase input?
  A: No, requires 3-phase 380-480V AC power
• Q: Can it control permanent magnet motors?
  A: Yes, includes specialized PM control algorithm
• Q: Is the Ethernet port programmable?
  A: Yes, supports CIP messaging and configuration
