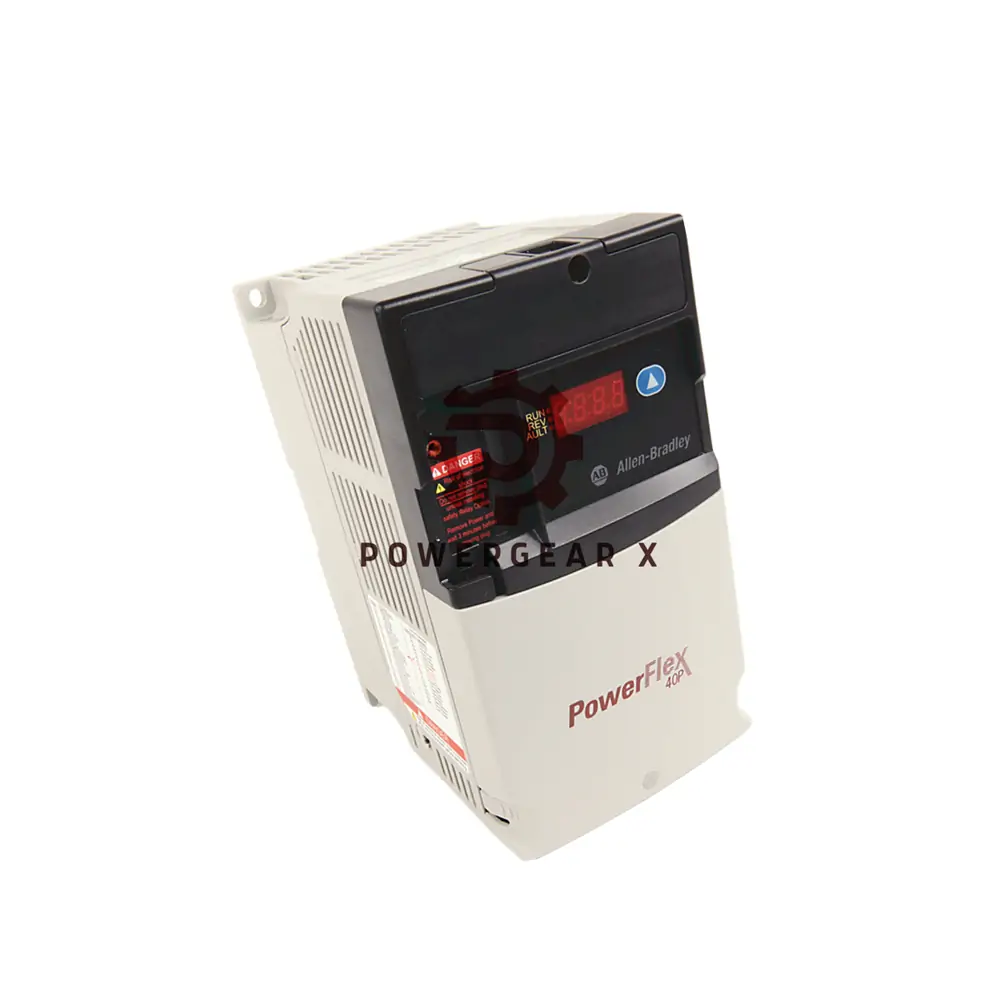

22D-D4P0N104 Allen-Bradley | AC Drive PowerFlex 40P

Allen-Bradley 22D-D4P0N104: Power & Intelligence in Compact Design

This 2HP PowerFlex 40P drive delivers industrial-grade motor control for demanding applications. Perfect for packaging, textiles, and material handling. Features sensorless vector technology and robust networking.

Key Specifications: 22D-D4P0N104

• Brand: Allen-Bradley (Rockwell Automation)
• Model: PowerFlex 40P 22D-D4P0N104
• Power: 2 HP (1.5 kW) | 4.0A Output
• Voltage: 342-528V AC Input | 0-460V Output
• Frequency: 48-63 Hz Input | 0-500 Hz Output

Advanced Control Features

• Motor Control: Sensorless Vector + V/Hz
• Smart I/O: 7 digital inputs + 2 analog ports
• Network Ready: RS485 + 6 protocol options
• Safety: Category 3 Safe Torque Off
• Braking: Integrated dynamic braking

Installation & Protection

• Panel Mount: Vertical installation only
• Enclosure: IP20 (IP30 kit optional)
• HIM: 4-digit display + 10 status LEDs
• Distance: RS485 up to 4000 meters

Industry Certifications

• UL508C | CAN/CSA-22.2
• CE | EMC | AS/NZS Group 1
• (External filter required for CE)

Shipping & Warranty

• 12-month warranty
• Global express: FedEx, UPS, DHL
• UPC: 820919654152

Professional FAQs

• Q: Maximum network devices?
  A: 31 drives per RS485 segment
• Q: Safe for ungrounded systems?
  A: Yes – MOV can be grounded
• Q: Brake resistor included?
  A: Integrated IGBT brake installed
• Q: Keypad options available?
  A: Panel, handheld & wireless
• Q: Category 3 safety certified?
  A: Yes for safe torque-off

Get Your Free Setup Guide

Download complete documentation for 22D-D4P0N104:

• Network configuration tips
• Safe torque-off wiring
• Dynamic braking setup
• Parameter optimization
