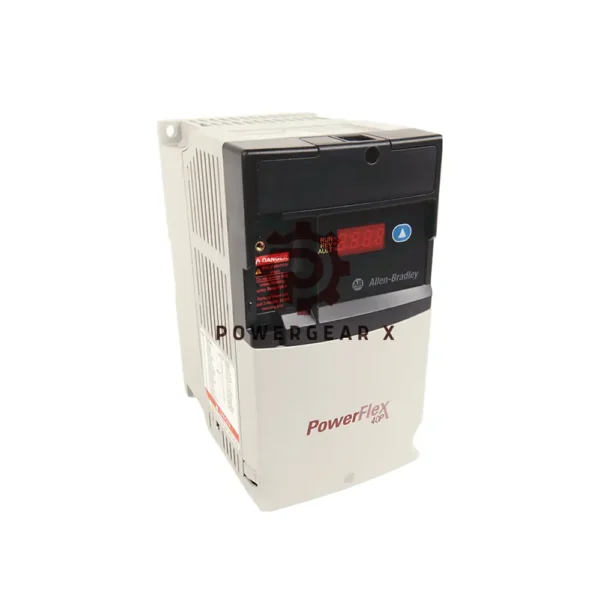

Allen-Bradley 22D-D1P4H204 PowerFlex 40P Adjustable Frequency Drive

Control 3-phase motors with precision! The 22D-D1P4H204 drive from Rockwell Automation delivers robust performance in compact applications. Perfect for HVAC, pumps, and conveyors.

Technical Specifications

• Brand: Allen-Bradley
• Model: 22D-D1P4H204
• Input: 480V AC 3-phase, 50/60 Hz
• Output: 0.5 HP (0.4 kW), 1.4A
• Control: V/Hz & Sensorless Vector
• Enclosure: Open plate (IP20)

Key Features

• Motor Protection: 150% overload (60 sec), Class 10 i²t algorithm
• I/O Ports: 7 digital inputs, 2 analog inputs, 1 relay output
• Precision: ±1% speed regulation (80:1 range)
• Environmental: Operates at 14–122°F (-10–50°C)

Installation & Compatibility

• Cabinet Layout: Plate-mount design (saves space)
• Wiring: 24V DC sink/source control (DIP-selectable)
• Compatible Motors: 3-phase induction (0.5HP)

Shipping & Support

• Warranty: 12 months
• Shipping: FedEx, UPS, DHL (global)
• Packaging: Drive unit, manual

FAQ

• Q: Does it include a CE filter?
  A: No CE filter included.
• Q: Max ambient temperature?
  A: 122°F (50°C).
• Q: Encoder support?
  A: Yes, dual-channel incremental.
