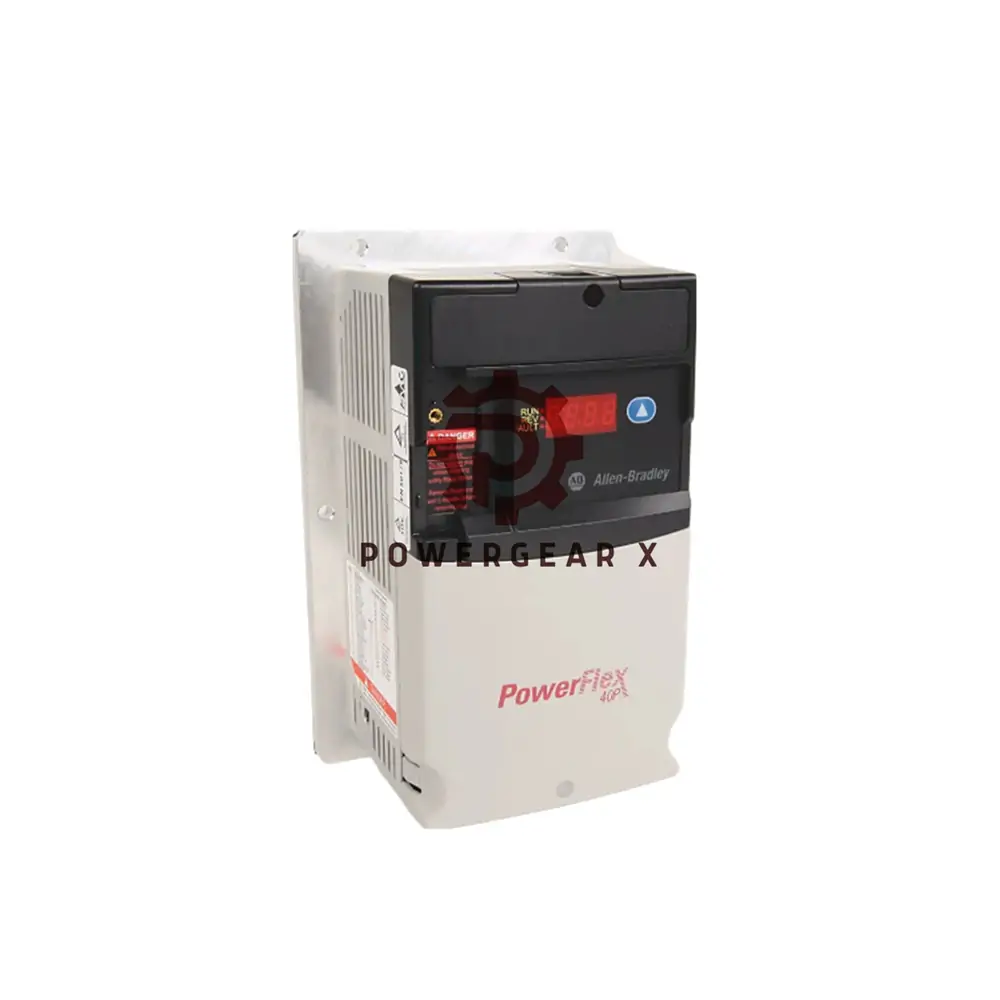

Allen-Bradley PowerFlex 40P Drive: Precision Motor Control Simplified
This high-performance 22D-D024H204 drive delivers robust sensorless vector control in compact packaging. Perfect for OEMs and industrial applications requiring reliable low-speed torque. Features intuitive programming and flexible mounting.
Technical Specifications: 22D-D024H204
- Brand: Allen-Bradley/Rockwell Automation
- Model: PowerFlex 40P 22D-D024H204
- Electrical: 480V AC 3-phase Input | 24A Output | 15 HP (11 kW)
- Control: Sensorless Vector | Integral Keypad (4-digit display + 10 LEDs)
- Comms: RS485 Multi-drop | DF1 Messaging
- Environment: 40-50°C Operating Temp | IP20/NEMA Open Enclosure
- Required: DC Bus Inductor or AC Line Reactor
Installation & Thermal Management
- Mounting: DIN Rail or Panel Mount (NEMA 1/4X options)
- Spacing Critical: 50°C max with spacing | 40°C max zero stacking
- Input Protection: Mandatory reactor connection for EMI reduction
Compatibility & Certifications
- Controllers: Works with any DF1-compatible PLC systems
- Motors: 0.5-15 HP 3-phase induction motors
- Certifications: UL/CUL | CE Compliant (external filter required)
Packaging & Support
- Shipping: FedEx, UPS, DHL Global Express
- Warranty: 12-month guarantee
- Included: Drive unit, documentation kit
Advanced Diagnostics
- Real-time current/torque monitoring
- Fault history log (last 5 errors)
- Overload & short-circuit protection
FAQ
- Q: Ambient temperature limits?
A: 50°C with spacing; 40°C when stacked - Q: Communication protocols?
A: Native RS485 with DF1 messaging support - Q: CE compliance?
A: Requires external filter (not included)
