Product details
Overview

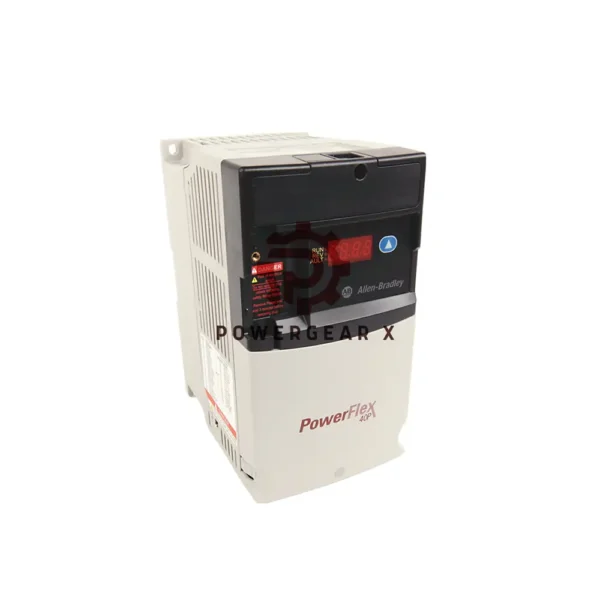

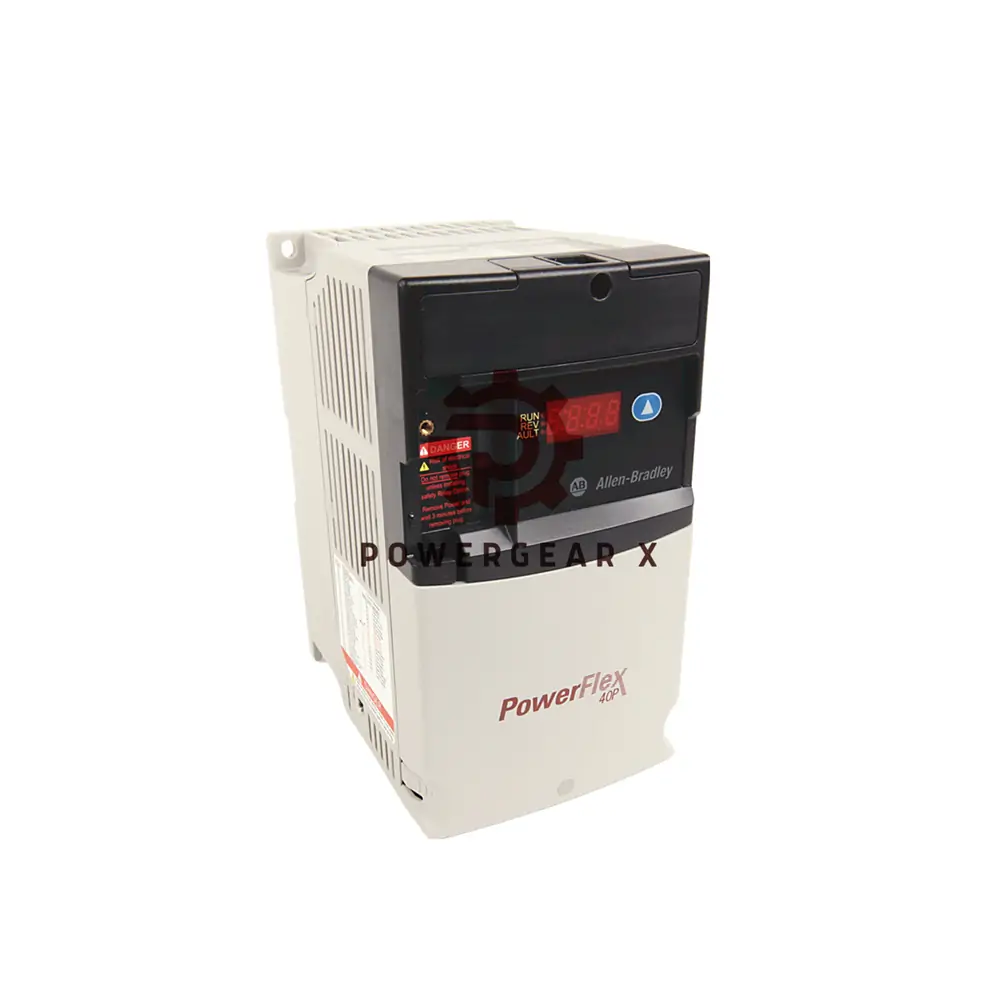

The Allen-Bradley 22D-B012H204 PowerFlex 40P AC Drive is designed to deliver high-performance motor control in a compact and reliable package. Operating on a 240V AC, 3-phase power supply, this drive offers efficient energy use and features advanced capabilities suited for a range of industrial applications. With its easy-to-use integral keypad and clear LED display, users can quickly adjust settings and monitor performance, ensuring smooth operations. The drive is mounted on a plate, which simplifies installation and maintenance, while its robust IP20 enclosure provides protection in environments with minimal exposure to dust and moisture.
Technical Specifications:
- Brand: Allen-Bradley
- Model: 22D-B012H204
- Input Voltage: 240V AC, 3-Phase
- Output Current Rating: 12 Amps
- Rated Power: 2.2 kW (3 HP)
- Frame Size: B
- Mounting: Plate Mount
- Enclosure Type: IP20, NEMA Type Open
- User Interface: Integral Keypad, LED Display
- Brake IGBT: Included
- RS485 Terminal Block: Fixed
- Operating Frequency: 50 Hz / 60 Hz
- Power Factor: 0.98
- Heat Sink: Omitted
- Filter Compliance: No CE Compliant Filter
- Interface Features: Flash ROM
- Product Type: Plate Drive, without CE compliant filter
Ordering Information:
The Allen-Bradley 22D-B012H204 model is available for order with the following key options:
- Standard Model: PowerFlex 40P AC Drive, without CE compliant filter
- Brake IGBT Included
- Integral Keypad and LED Display
- RS485 Fixed Terminal Block Connections
Check official datasheet for more detailed information: PowerFlex 40P
