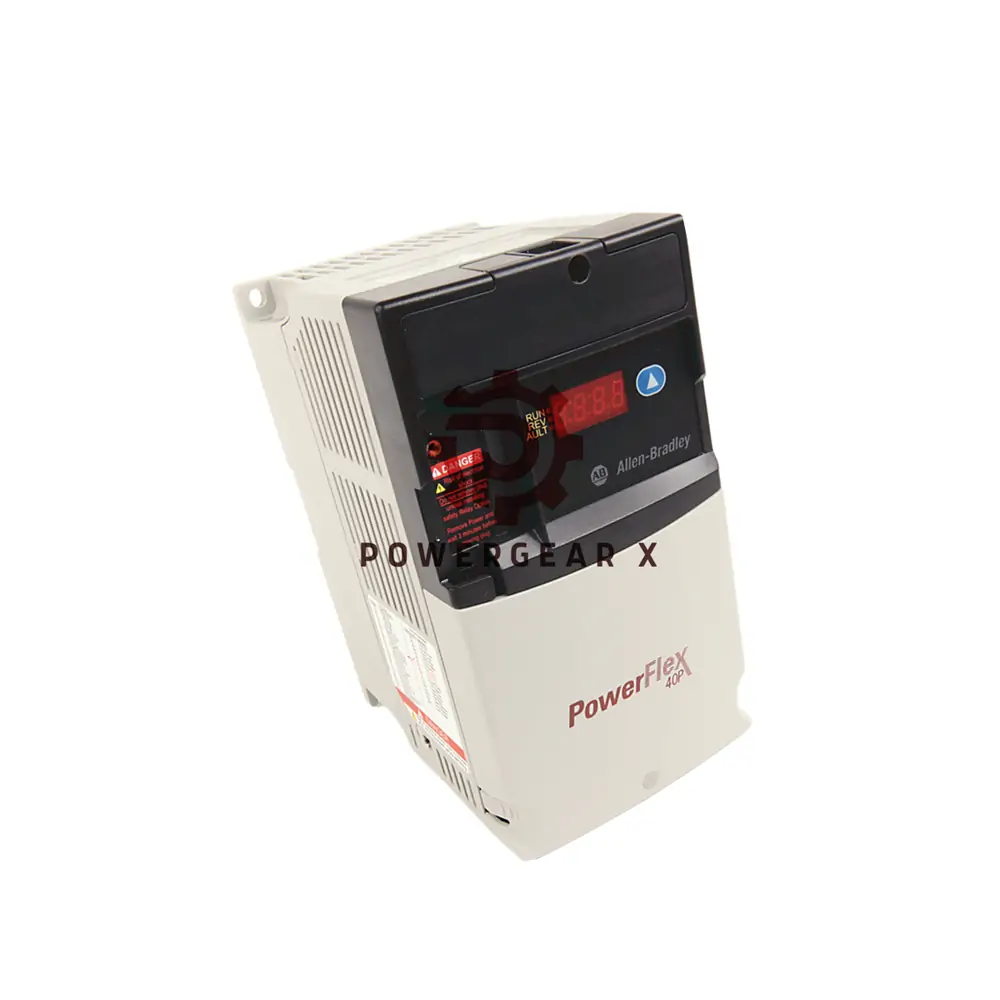

22D-B012F104 Allen-Bradley AC Drive PowerFlex 40P

Overview

The Allen-Bradley 22D-B012F104 PowerFlex 40P AC Drive is designed to offer efficient motor control in various applications. With a voltage input range of 208 to 240 VAC and a power output of 3 horsepower (2.2 kW), it is ideal for controlling three-phase motors. The drive uses advanced control methods such as Sinusoidal PWM, Volts per Hertz, and Sensorless Vector control, making it versatile for different motor types. This model is also equipped with features like PID control and auto-tune, ensuring optimal motor performance.

Technical Specifications

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 22D-B012F104
• Amperage: 12 Amps
• Phase: Three-Phase
• Input Voltage: 208-240 VAC
• Output Power: 3 HP (2.2 kW)
• Frame Size: B
• Enclosure: NEMA Type Open (IP20)
• Mounting: Flange Mount
• Control Methods: Sinusoidal PWM, Volts per Hertz, Sensorless Vector
• Display: 4-digit LCD with reset button
• Protection Features: Ground fault protection, 6kV transient protection, Electronic motor overload protection
• Operating Temperature: -10 to 50°C (14 to 122°F)
• CE Filter: No CE compliant filter
• Dimensions: 125mm x 204mm x 113mm (4.92” x 8.03” x 4.45”)

Ordering Information

• Part Number: 22D-B012F104
• Model: PowerFlex 40P, 3 HP, Flange Mount, Open NEMA Type
• Frame Size: B
• Filter: Without CE compliant filter

FAQ

• Q: Can this drive control a motor with variable speed?
  A: Yes, the drive can control variable motor speed using its advanced control methods.
• Q: Is this drive suitable for outdoor use?
  A: The drive is rated IP20, so it is designed for use in dry, indoor environments.
• Q: What is the frame size of this drive?
  A: The drive features a frame size of “B,” which ensures compatibility with various motor sizes.

Check official datasheet for more detailed information: PowerFlex 40P
