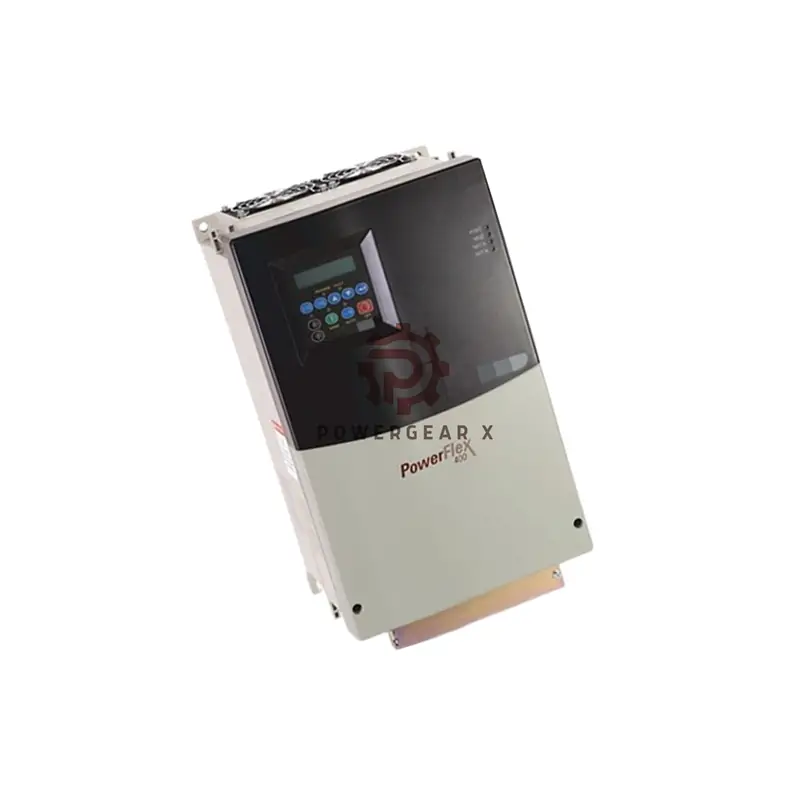

Allen-Bradley 22C-D6P0F103 Drive: Compact 3HP PowerFlex 400 Solution for Fan & Pump Control
Precision Motor Management
The 22C-D6P0F103 from Allen-Bradley delivers smart speed control in a space-saving design. This 3HP PowerFlex 400 drive optimizes fan and pump systems while saving energy.
Technical Specifications
- Model: 22C-D6P0F103
- Brand: Allen-Bradley
- Series: PowerFlex 400
- HP: 3 Horsepower (2.2kW)
- Input: 380-480V AC, 3-Phase
- Output: 6 Amps continuous
- Frequency: 50/60Hz ±3%
- Dimensions: 10.2″ x 5.1″ x 7.1″
- Weight: 16.5 lbs (7.49 kg)
- I/O Points: 7 digital, 4 analog
- Response Time: <20ms
Connection Features
- Dual relay outputs
- Programmable analog inputs
- Transistor/PTC input
- Expandable I/O capacity
Protection & Safety
- IP20-rated enclosure
- Wiring protection cover
- Professional installation required
- ESD-safe components
Package & Support
- Drive unit with mounting flange
- Installation manual included
- 12-month performance warranty
- Global shipping: FedEx, UPS, DHL
Expert Answers
- What’s the voltage range? 380-480V AC input
- Can I mount it vertically? Yes, flange supports multiple orientations
- What I/O comes standard? 7 digital inputs, 4 analog ports
- Is professional install needed? Required for safety compliance
- What’s the shipping weight? 16.5 lbs with packaging
