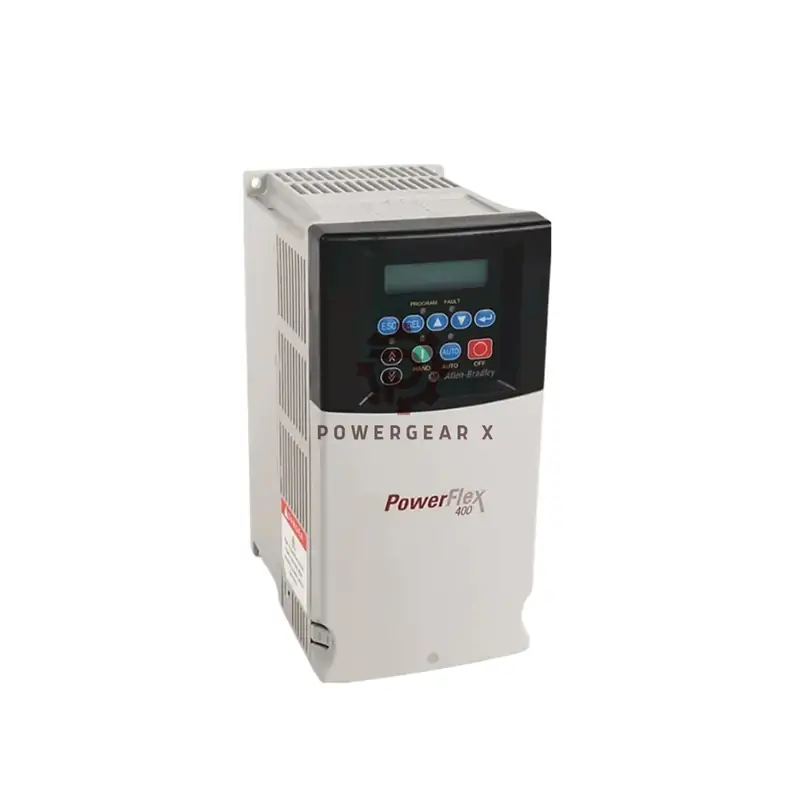

22C-B024N103 Drive | PowerFlex 400 7.5HP Fan Pump VFD

Allen-Bradley 22C-B024N103 Drive | Expert Fan & Pump Control Solution

Precision Technical Specs

• Brand: Allen-Bradley (Rockwell Automation)
• Model: 22C-B024N103 | Series: PowerFlex 400
• Frequency Range: 0-320 Hz programmable
• Temperature Range: 14°F to 122°F (-10°C to 50°C)
• Response Time: 100ms power loss ride-thru
• Dimensions: 5.1″ x 7.2″ x 10.2″ (130x180x260mm)
• Weight: 9.5 lbs (4.33 kg)
• Humidity: 5-95% non-condensing

Easy Setup & Control

• 2-line LCD display with keypad
• Simple panel mounting (IP20)
• 7 digital + 2 analog inputs
• RS-485 serial programming port
• Network options: DeviceNet, EtherNet/IP

Reliability Guarantee

• 12-month warranty
• Global shipping: FedEx, UPS, DHL
• Delivery in 3-6 business days
• Rugged industrial construction

Professional FAQs

• Q: What overload capacity does it have?
  A: 110% for 60 seconds continuous
• Q: Can I program acceleration times?
  A: Yes, 0-600s in 0.1s increments
• Q: What communication networks work?
  A: DeviceNet, EtherNet/IP, PROFIBUS DP
• Q: Is the display multi-language?
  A: Yes, 2-line 16-character LCD
• Q: What fuse protection is needed?
  A: 35A Class CC fuse recommended
