22B-V6P0N104 PowerFlex 40 Allen-Bradley | AC Drive New

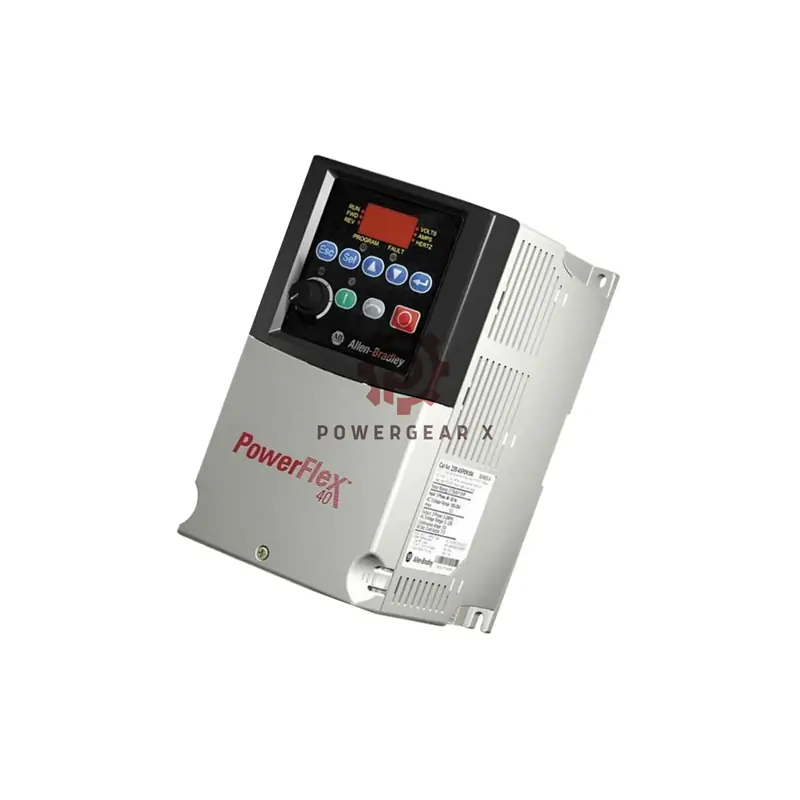

Allen-Bradley 22B-V6P0N104: Precision 1.5HP Drive

Compact motor control solution for industrial applications. 120V single-phase input. Advanced protection features. Space-saving design. Easy installation.

Technical Profile

• Core Specifications
  • Model: 22B-V6P0N104 (PowerFlex 40)
  • Input: 120V AC, 1-Phase
  • Output: 1.5 HP (1.1 kW), 6.0A
  • Frequency Range: 0-400Hz
• Protection Systems
  • Overload: 150% for 60s, 200% for 3s
  • Overcurrent: 200% hardware protection
  • Short-Circuit: 100,000A rating
  • Braking: Internal IGBT dynamic brake
• Connectivity
  • 7 Digital Inputs (sink/source)
  • 2 Analog Inputs (voltage/current)
  • 1 Analog Output
  • 1 Form C Relay Output
• Environmental
  • Temp: -10°C to 50°C (14°F to 122°F)
  • Humidity: 5-95% non-condensing
  • Altitude: Up to 1000m

Industrial Advantages

• 97.5% energy efficiency rating
• Class 10 motor overload protection
• Dual mounting (panel or DIN rail)
• Zero stacking for space optimization
• CE, UL, and CSA certified
• Compact size: 80x185x136mm (3.1×7.3×5.4in)

Order & Support

• Warranty: 12-month full coverage
• Global Shipping: FedEx, UPS, DHL
• Certifications: CE, UL, CSA
• Enclosure: IP20 (NEMA Open)

Technical FAQs

• Q: What overload protection does it offer?
  A: Class 10 protection – 150% for 60 seconds, 200% for 3 seconds
• Q: Can it handle voltage fluctuations?
  A: Yes, operates from 90-132V (-10%/+10% tolerance)
• Q: What control inputs are available?
  A: 7 digital inputs, 2 analog inputs, and relay output
• Q: Is it suitable for high-altitude installations?
  A: Certified for up to 1000m (3280ft)
• Q: What efficiency does it achieve?
  A: 97.5% drive efficiency with 0.98 power factor

Documentation Download

Access complete technical details:

• PowerFlex 40P Drive Manual (PDF)

Package Includes: 22B-V6P0N104 Drive Unit, Keypad, Mounting Kit.
