22B-D017H204 Allen-Bradley | New PowerFlex 40 AC Drive

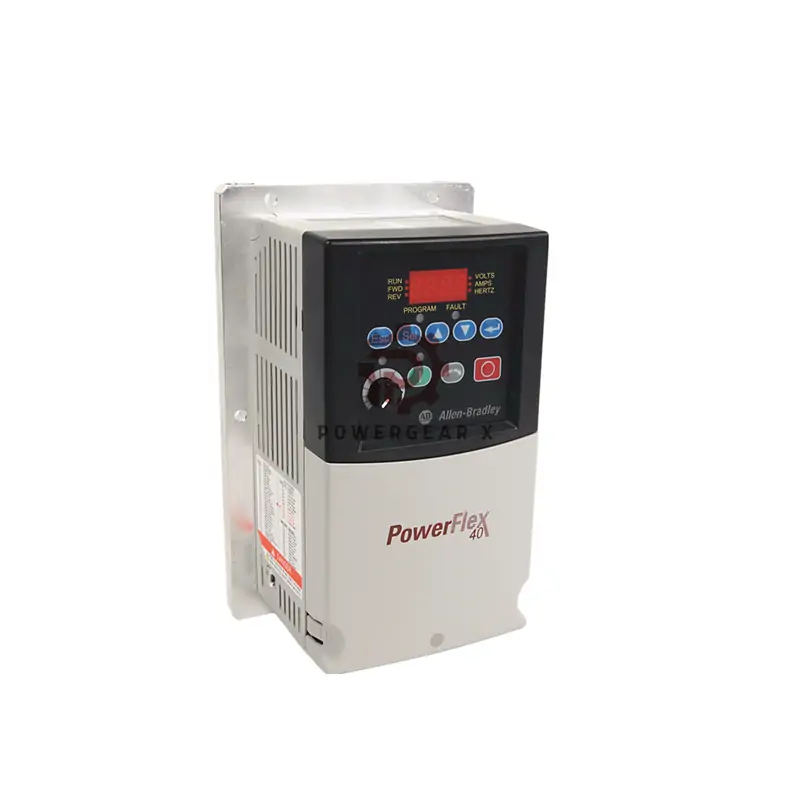

Allen-Bradley 22B-D017H204 PowerFlex 40 Drive

22B-D017H204 delivers big power in small package. This 10HP drive features auto-tuning and easy front-access repair.

Core Specifications

• Model: 22B-D017H204
• Power: 10 HP / 7.5 kW
• Voltage: 380-480V AC 3-phase
• Current: 17.0A output
• Weight: 2.59 kg (5.7 lbs)

Compact Design

• Size: 284x155x108 mm (11.18×6.1×4.25 in)
• Front Access: Easy removal for repairs
• Enclosure: IP20 plate drive
• Preset Speed: 8 programmable settings

Installation Guide

• No heatsink required
• 24V control voltage
• Supports RTU commands
• 150% overload capacity

Support & Shipping

• Warranty: 12 months
• Delivery: FedEx, UPS, DHL
• Compliance: NEMA/UL Type 1 & 4X

Expert FAQs

• Q: How to copy settings?
  A: Use the copycat function
• Q: Braking resistor type?
  A: Standard dynamic brake resistors
• Q: Repair access?
  A: Front removable design
• Q: Preset speeds?
  A: 8 programmable settings
• Q: Network capacity?
  A: Multi-drive RS-485 control

Download Full Manual

• PowerFlex 40 Series Guide (PDF)
