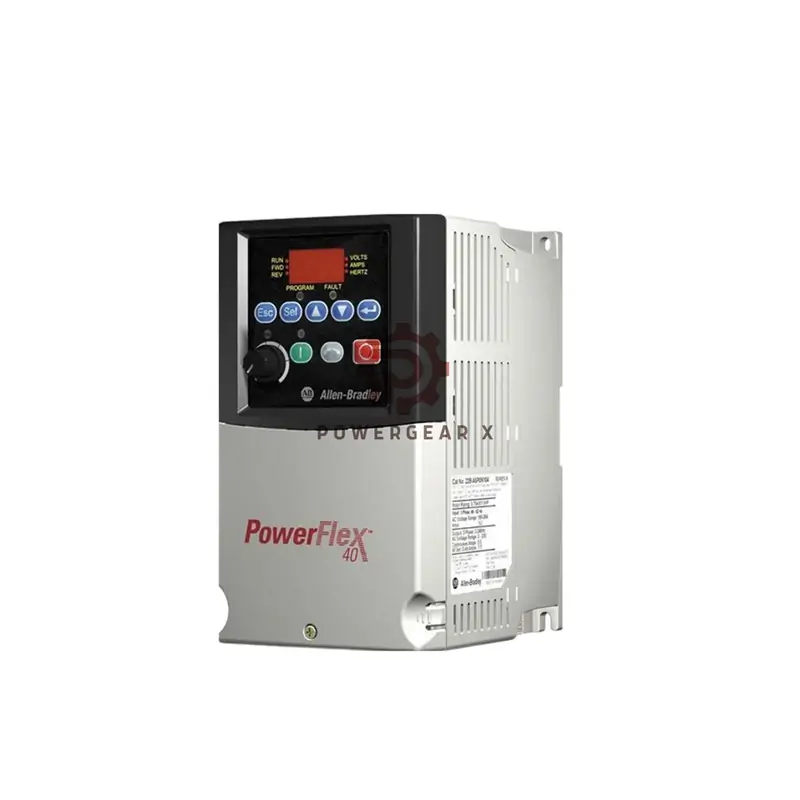

Allen-Bradley 22B-D010N104 PowerFlex 40 VFD
Precision control for 5HP motors! This 480V 3-phase drive features sensorless vector technology for high torque and smooth speed control. Perfect for industrial automation systems.
Download Manual: PowerFlex 40 User Guide (PDF)
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Full Model: PowerFlex 40 22B-D010N104
- Frame: B
- Power: 4.0kW (5.0HP)
- Voltage: 480V AC
- Input: 342-528V AC, 3-phase, 48-63Hz
- Output: 10.5A, 0-400Hz, 0-460V AC
- Resolution: 0.1Hz frequency control
- Temperature Range: -40°F to 185°F (storage)
- Enclosure: IP20/NEMA UL Open
- I/O: 3 fixed + 4 programmable inputs
Key Performance
- Frequency Response: 0-400Hz
- Efficiency: 97.5% operational
- Anti-Interference: EMI/RFI filtered
- Environmental: Humidity resistant design
Installation & Setup
- Panel mount (180 × 100 × 136mm)
- Clear terminal labeling
- Quick-start wizard
- Remote keypad option
Diagnostics & Maintenance
- Real-time fault tracking
- Auto-tuning motor control
- PC configuration tools
- Modular component design
Compatibility & Certifications
- Works with 3-phase AC motors ≤5HP
- CE compliant (without filter)
- UL/cUL certified
- NEMA standards
Packaging & Shipping
- Contents: VFD unit
- Carriers: FedEx, UPS, DHL
- 12-month warranty
Frequently Asked Questions
- Q: Single-phase input supported?
A: No, 3-phase only - Q: Communication options?
A: RS485 built-in + expansion modules - Q: Fuse requirements?
A: 20A UL Class J/CC/T
Compare Similar Models
- 22B-E019N104 (7.5HP model)
- 22B-E1P7F104 (1.7HP compact drive)
