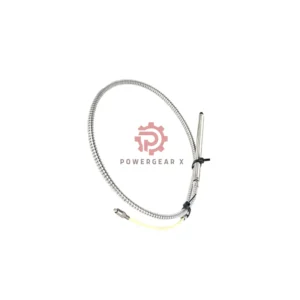

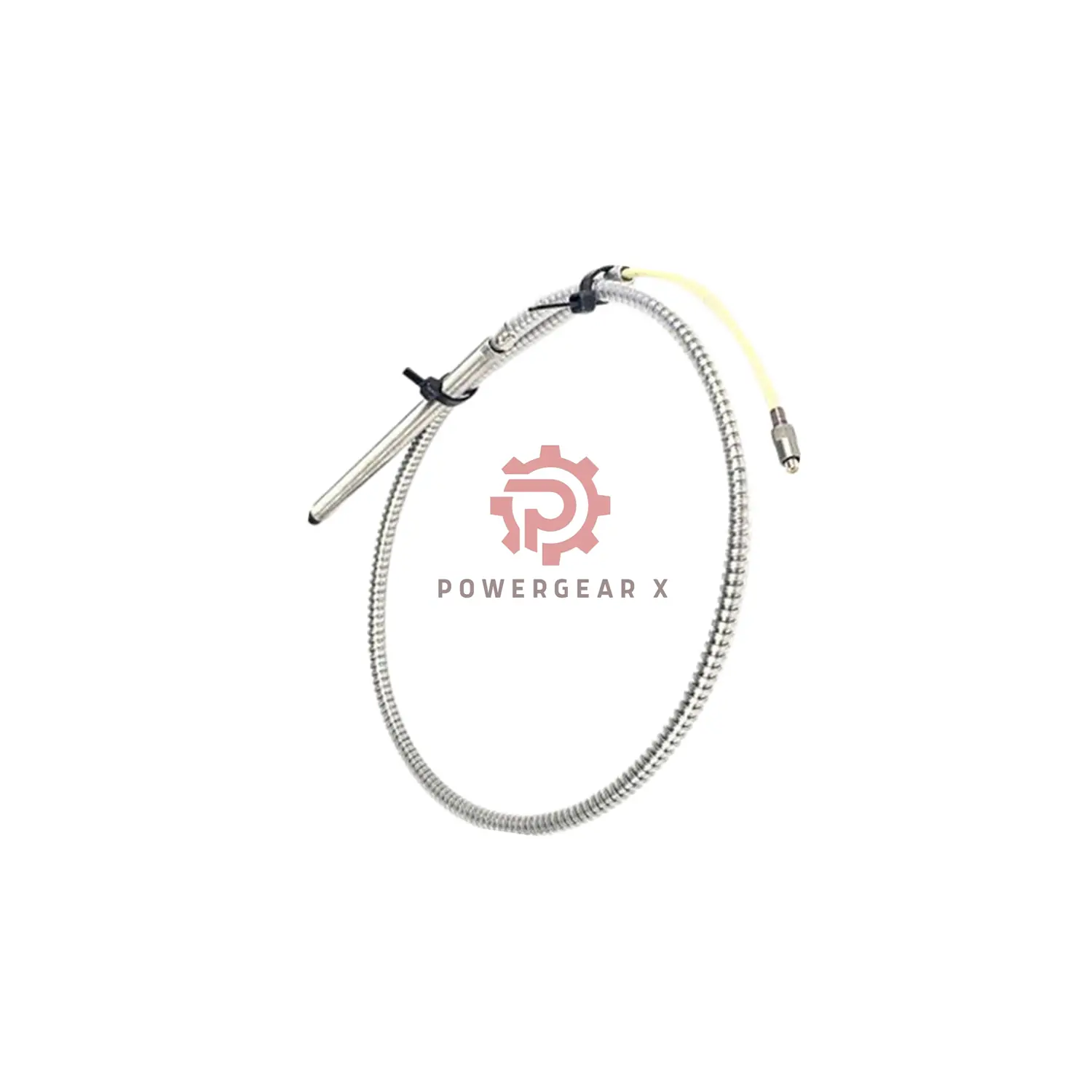

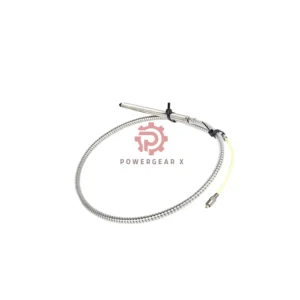

Bently Nevada 21505-00-36-10-02 Proximity Vibration Probe

Core Specifications

• Measuring Range: 0.25mm to 2.0mm
• Accuracy: ±0.02mm (system calibrated)
• Signal Output: 200mV/mil linear voltage
• Response Time: <1ms
• Ingress Protection: IP67 rated

Extended Technical Data

• Frequency Range: DC-12kHz (±3dB)
• Cable Material: Stainless steel armor
• Shock Resistance: 50g peak (11ms duration)
• EMI Immunity: 30V/m (10kHz-1GHz)

Model Code Structure (21505-00-36-10-02)

• Base Model: 21505
• -00: No unthreaded section
• -36: 91.4mm housing length
• -10: 1m cable length
• -02: Miniature coaxial connector

Industrial Applications

• Gas turbine vibration monitoring
• Pump bearing wear detection
• Compressor shaft alignment
• Generator rotor eccentricity measurement

Installation Guide

• Mounting Position: Horizontal or vertical
• Target Surface: Ferromagnetic material required
• Gap Setting: 0.8-1.5mm from target
• Cable Routing: Avoid sharp bends

Package Contents

• Proximity probe (1pc)
• Coaxial extension cable (1m)
• Connector adapter
• Installation manual

Shipping & Support

• Global Express: FedEx/UPS/DHL
• Warranty: 12 months factory guarantee
• Lead Time: 24hrs for in-stock items
