Product details

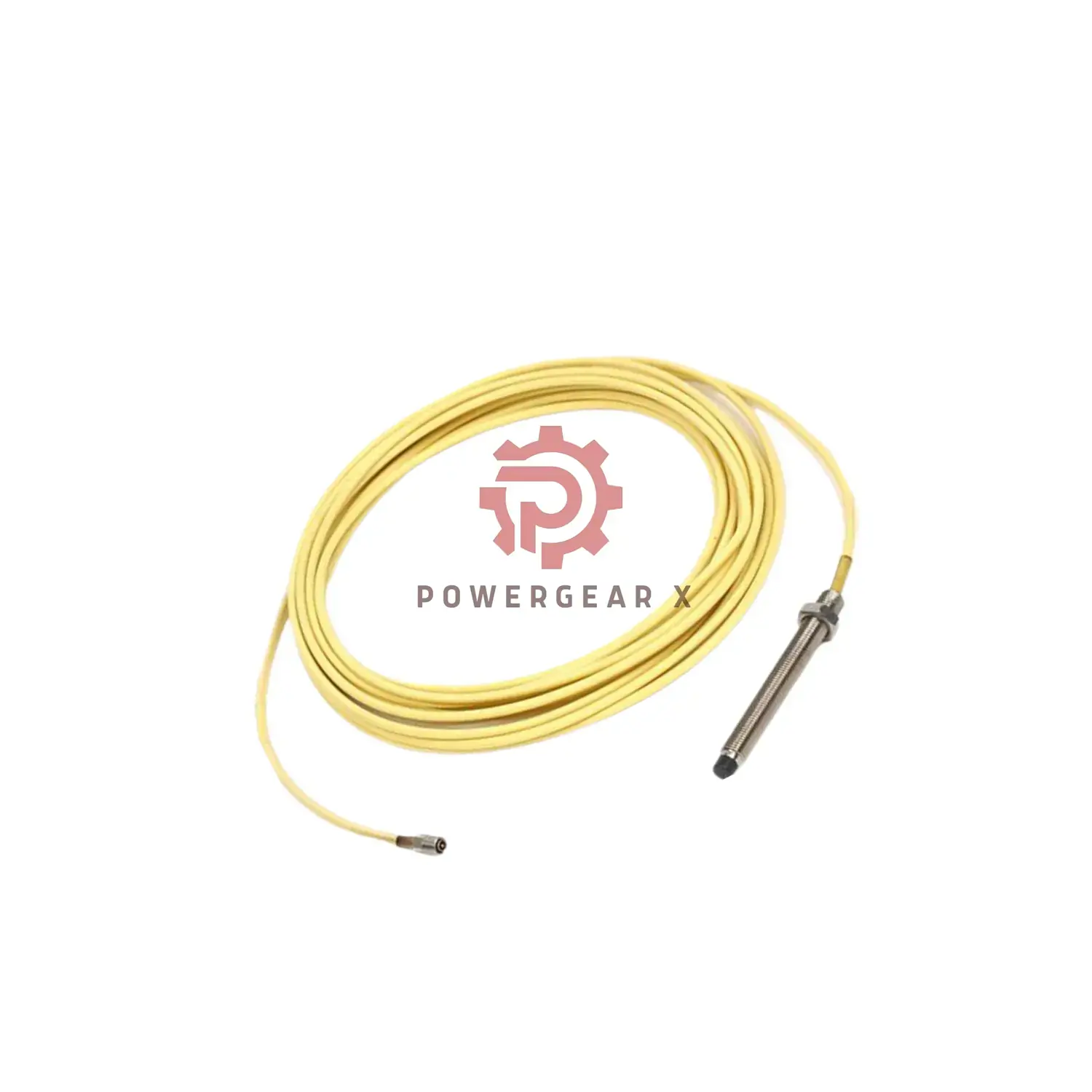

Industrial Vibration Monitoring Probe
Key Features
- Model 21504-00-64-10-02 in stock
- 12-month factory warranty
- Global FedEx/UPS/DHL shipping
- 24/7 technical support
Technical Specifications
| Parameter | Value | Standard |
|---|---|---|
| Measurement Range | 0.25-2.0mm | ±0.02mm |
| Frequency Response | 0-10kHz | -5% @10kHz |
| Output Sensitivity | 200mV/mil | ±9.5% system error |
| Operating Temp | -34°C to +177°C | EN 60068-2-1 |
Model Configuration
21504-
├── 00: 0mm unthreaded length
├── 64: 162.56mm (6.4″) case
├── 10: 1m cable (+10/-4″ tolerance)
└── 02: MIL-C-39012 connector
├── 00: 0mm unthreaded length
├── 64: 162.56mm (6.4″) case
├── 10: 1m cable (+10/-4″ tolerance)
└── 02: MIL-C-39012 connector
Industrial Applications
- Wind turbine main bearing monitoring
- Oil refinery reciprocating compressors
- Marine propulsion shaft alignment
- Nuclear reactor coolant pumps
Durability Features
- 🛡️ Resists 10% sulfuric acid & DMF
- ⚡ 2000V surge protection (IEC 61000-4-5)
- 🌊 IP68 submersible (3m/24hrs)
- 🔩 3/8-24 UNF thread (ASME B1.1)
Certificated
API 670 5th Edition
ATEX II 2G Ex db
ATEX II 2G Ex db
