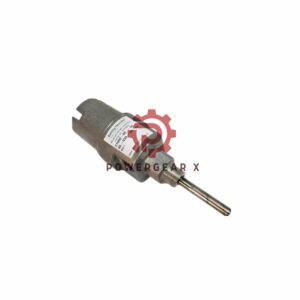

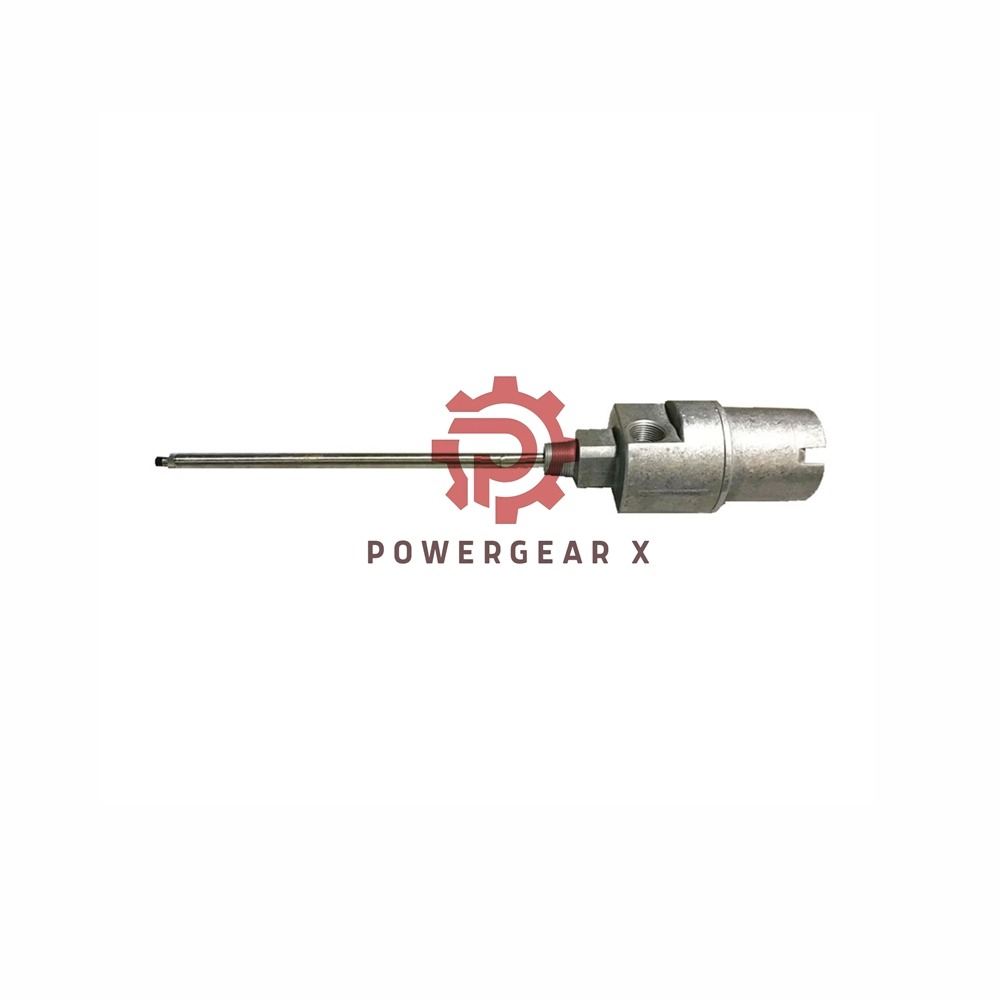

21000-28-05-00-057-04-02 Proximity Probe Housing Assemblies

Overview:

The Bently Nevada Proximity Probe Housing Assembly (Model: 21000-28-05-00-057-04-02) is designed for precise measurement and monitoring of machinery. It features an aluminum body with a 304 stainless steel sleeve for durability, ensuring long-term reliability in various industrial applications. This housing assembly is equipped with a dome cover, threaded ports, and optional conduit fittings, making it adaptable for different installation needs.

Features:

• Material: Aluminum body with 304 stainless steel sleeve
• Weight: 1.1 kg (2.4 lbs) without fittings
• Probe Type: 3300 XL 8 mm probe, multiple approvals
• Cable Length: 0.5 meters (20 inches)
• Standoff Adapter: Not included (00 option)
• Mounting Thread: 3/4-14 NPT (Required if no standoff adapter is used)
• Fittings: Includes one 3/4-14 NPT plug only
• Probe Penetration: 5.7 inches (057 option)

Technical Specifications:

• Brand: Bently Nevada
• Model: 21000-28-05-00-057-04-02
• Probe Connector Option: 28 (3300 XL 8 mm, multiple approvals)
• Probe Cable Length Option: 05 (0.5 meters, 20 inches)
• Standoff Adapter Option: 00 (No standoff adapter)
• Probe Penetration: 057 (5.7 inches)
• Fittings: 04 (One 3/4-14 NPT plug)
• Mounting Thread Option: 02 (3/4-14 NPT)

FAQ:

1. What does the 3300 XL 8 mm probe indicate?
   This refers to the specific probe type included with this housing, offering high accuracy for vibration monitoring.
2. What does the “057” option refer to?
   The “057” stands for the probe penetration length of 5.7 inches, which is a key feature for proper installation depth.
3. Can I use this assembly without the standoff adapter?
   Yes, the assembly can be used without a standoff adapter, indicated by the “00” option.
4. What is the typical weight of this housing assembly?
   The typical weight is 1.1 kg (2.4 lbs) without fittings.

Check official datasheet for more detailed information:21000- 24701- and 164818 Proximity Probe Housing Assemblies Datasheet
