Housing Assembly Without Conduit Fittings

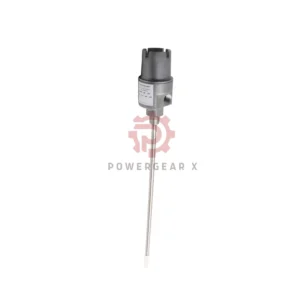

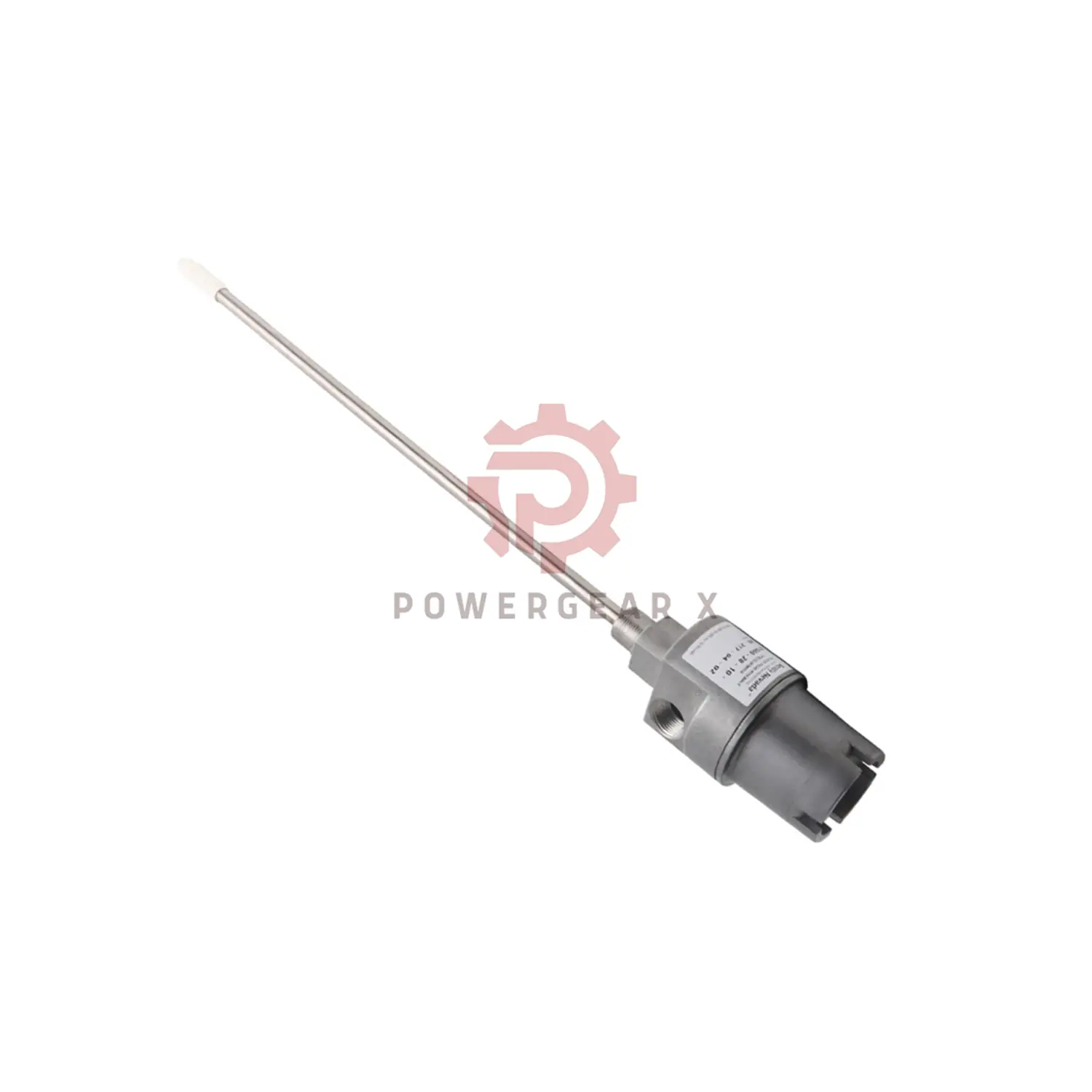

This is the Bently Nevada 21000-16-05-00-096-00-02. It is a complete explosion-proof housing with a pre-installed 8mm probe, offering a medium 9.6-inch penetration. This specific configuration does not include conduit fittings (option 00), perfect for users who supply their own.
Decoding The Part Number
Understand every component selection in model 21000-16-05-00-096-00-02:
- 21000: Aluminum Probe Housing Assembly
- 16: Probe Type = Installed 3300 XL 8 mm Probe
- 05: Cable Length = 0.5 meter Short Lead
- 00: Standoff Adapter = Not Included
- 096: Probe Penetration = 9.6 inches
- 00: Fitting Option = Without Fittings (Important Note)
- 02: Mounting = 3/4-14 NPT Thread
Core Specifications & Contents
- Manufacturer: Bently Nevada
- Housing Material: Aluminum body with 304 Stainless Steel sleeve.
- Probe Specs: 8mm diameter, 0.5m cable, reverse mount style.
- Key Feature: 9.6-inch adjustable probe penetration depth.
- Safety Rating: CSA Certified Explosion-Proof for hazardous locations.
- Standard Compliance: Fully meets API 670 requirements.
- Included: Housing, probe, dome cover, O-rings, thread seal.
- Not Included: Conduit plugs, reducers, or cable seals.
Installation & Key Consideration
- Target Application: Ideal for medium-reach applications where the shaft is moderately recessed.
- Critical Note: You must source your own 3/4″ NPT plugs and cable seals to complete the conduit connections, as they are not part of this kit.
- Installation: Mounts directly via its 3/4-14 NPT thread. The short probe cable is designed for immediate connection to a conduit system.
Ordering, Warranty & Shipping
- Product Condition: New & Original, in sealed factory packaging.
- Warranty Coverage: Protected by a solid 12-month manufacturer warranty.
- Delivery: Fast international shipping via FedEx, UPS, or DHL available.
Expert FAQ & Selection Advice
Why would I order the “without fittings” (00) option?
This saves cost if you already have standard conduit fittings in stock at your plant or prefer to use specific brands/types that match your existing site infrastructure.
What exactly is missing in the “00” fitting option?
The kit does not include the 3/4″ NPT plug, the 3/4″ to 1/2″ reducer, and the cable seal grip with grommets. You must provide these separately to seal the housing.
Is the 9.6-inch penetration a common size?
Yes, 9.6 inches is a versatile, medium-length penetration. It fits many pump and motor applications where the shaft is not extremely deep.
Can I add fittings to this housing later?
Yes. You can purchase standard 3/4″ NPT plugs and cable glands separately. Ensure they are rated for hazardous areas if required for your installation.
How do I choose between 5.0″, 9.6″, and 13.5″ penetration?
Check your machinery drawing for the “probe gap” and mechanical clearance. The penetration must be long enough to allow the probe tip to reach the required measurement point on the shaft.
