2097-V34PR3 Allen-Bradley – Servo Drive

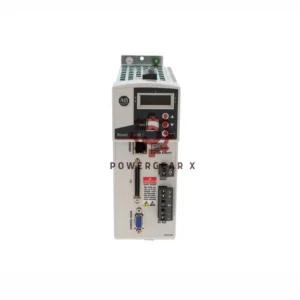

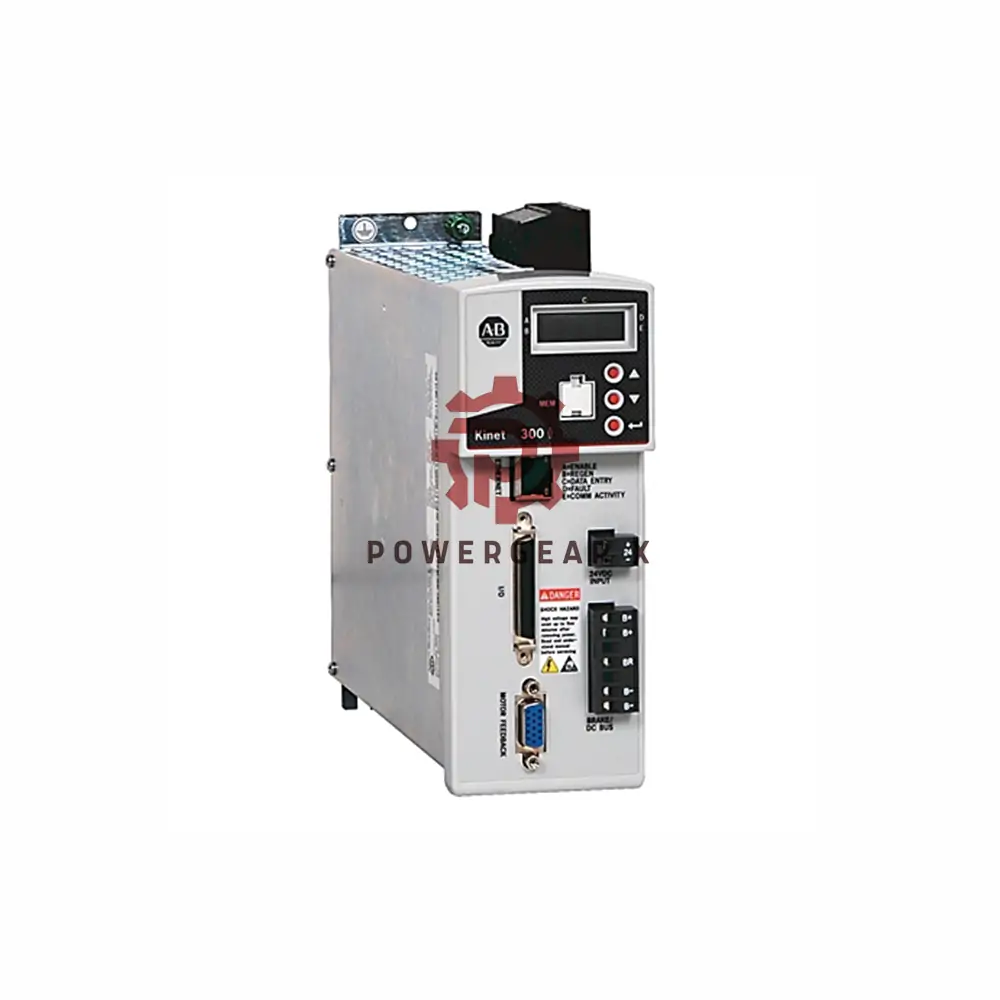

Allen-Bradley 2097-V34PR3 Servo Drive

Core Specifications

• Input: 3-Phase 320-528V (480V nominal)
• Output: 2.8A (peak) / 1.0kW continuous
• Protection: 850VDC overvoltage, 100kA short circuit
• Motion Control: 32 position indexes, 5 index types

Model Breakdown (2097-V34PR3)

• 2097 = Kinetix 300 series
• V34 = 480V three-phase version
• PR3 = Indexing drive with Ethernet/IP

Industrial Applications

• Packaging line indexing systems
• CNC tool changers
• Automated assembly positioning

Key Features

• ISO 13849-1 PLd/SIL2 safety certified
• Built-in S-curve and trapezoidal motion profiles
• Single network architecture reduces wiring

Compatible Equipment

• Motors: Kinetix MP/TLY rotary, LDAT linear
• Controllers: CompactLogix, ControlLogix
• HMI: PanelView terminals

Environmental Ratings

• Temperature: 0-40°C (32-104°F)
• Humidity: 5-95% non-condensing
• Vibration: 2.5g max (5-2000Hz)
