200350 Accelerometer Bently Nevada 200350-12-00-00

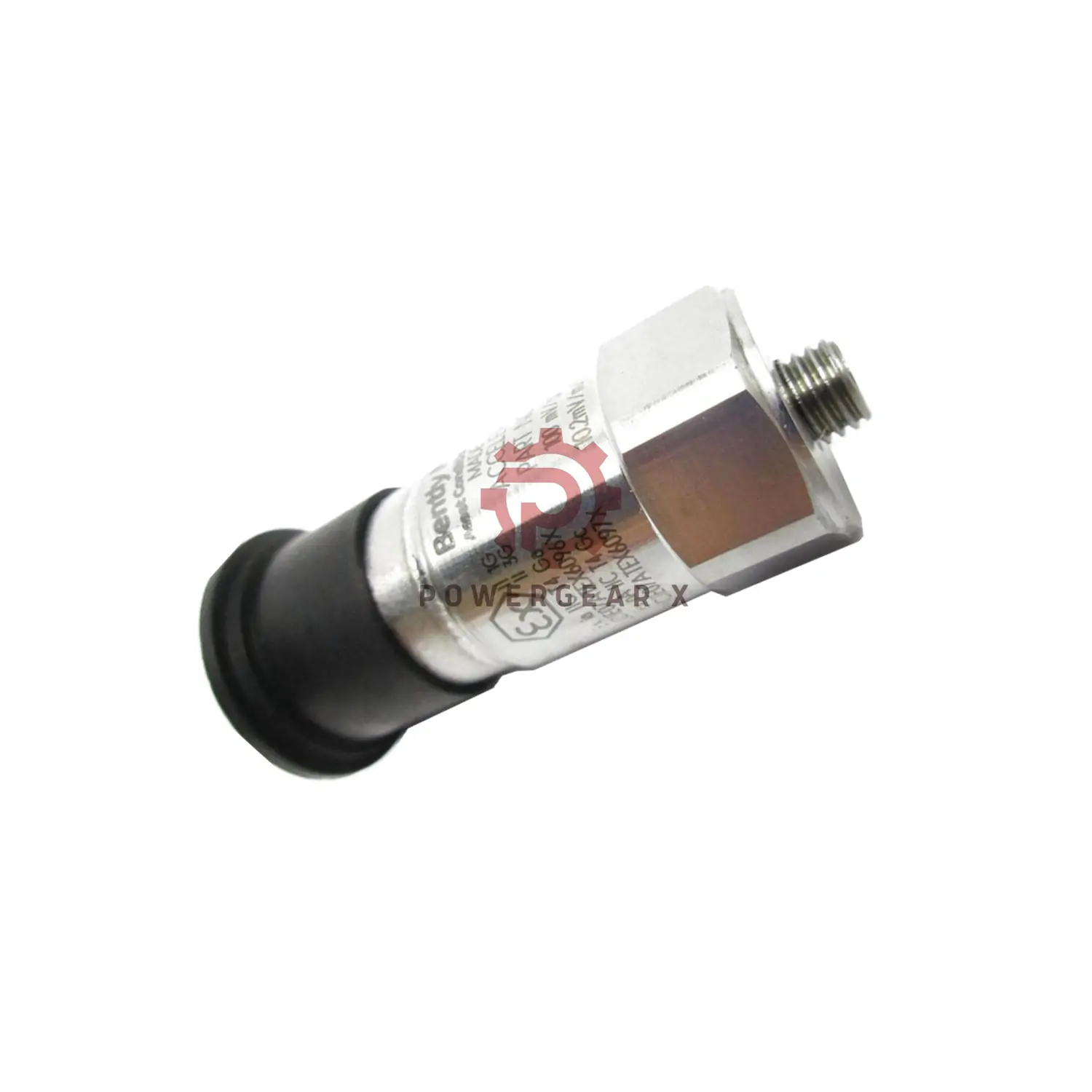

Bently Nevada 200350-12-00-00 Accelerometer

Key Technical Specifications

• Measurement Range: ±50g
• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s²)
• Frequency Range: 0.5 to 10,000 Hz
• Output Signal: Voltage
• Excitation Voltage: 18 to 28 VDC
• Bias Voltage: 8 to 12 VDC
• Noise Level: 350 μg (1 to 10 kHz)
• Output Impedance: Less than 150 ohms
• Settling Time: 2.0 seconds
• Discharge Time Constant: At least 0.3 seconds

Installation Guide

• Mounting Thread: 1/4-28 Female
• Mounting Torque: 2 to 5 ft-lb (2.7 to 6.8 N-m)
• Mounting Stud: M8 x 1.25 Adhesive Stud Mount
• Electrical Connector: 2-Pin Mil-C-5015 (Top Position)

Physical Properties

• Hex Size: 11/16 inch (1.8 cm)
• Height: 1.65 inch (4.24 cm)
• Weight: 0.051 kg
• Housing: Stainless Steel
• Seal: Welded Hermetic

Application Scenarios

• Oil and Gas: Detect faults in compressors before failure
• Steel Plants: Monitor high-speed rollers for imbalance
• Power Plants: Extend life of turbine shafts with real-time feedback
• Water Treatment: Reduce downtime with predictive pump diagnostics

Model Suffix Breakdown (200350-12-00-00)

• 200350 = Accelerometer Series
• 12 = M8 x 1.25 Adhesive Stud Mount
• 00 = 100 mV/g ±20% Tolerance
• 00 = No Safety Approval

Shipping and Warranty

• Shipping: FedEx, UPS, DHL Available
• Warranty: 12 Months Replacement
• Global Dispatch: Within 1 to 2 Business Days
