200350 Accelerometer Bently Nevada 200350-11-00-00

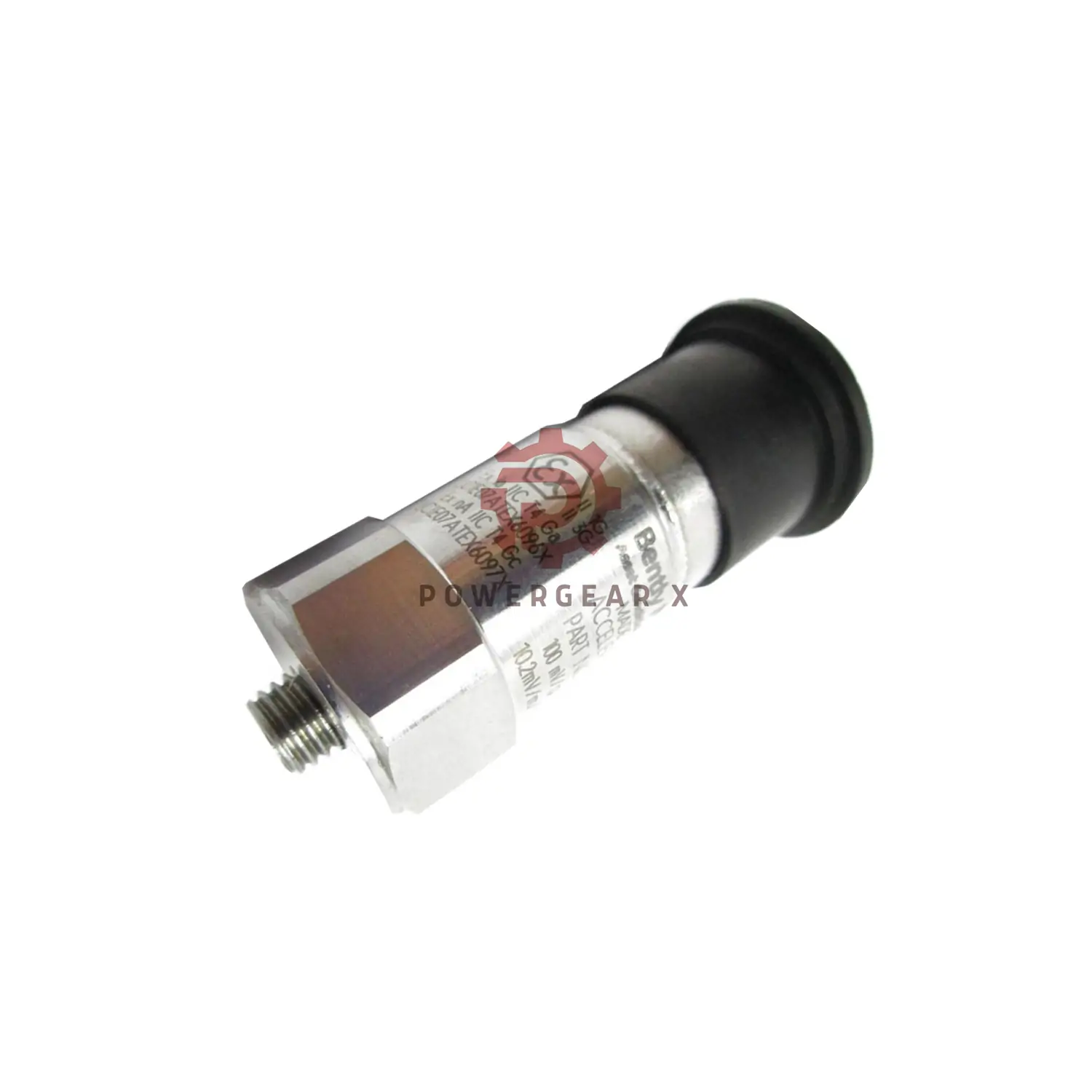

Bently Nevada 200350-11-00-00 Accelerometer

Product Overview

This sensor checks machine vibration. It works well in hot, wet, and tough places. Easy to install. Works with many machines in power, oil, and factory systems.

Key Technical Data

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%)
• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz)
• Measurement Range: ±50 g
• Transverse Sensitivity: ≤7%
• Amplitude Linearity: ±1%
• Resonant Frequency: 1500 kcpm (25 kHz)
• Noise (1–10 kHz): 350 μg (3434 μm/s²)
• Bias Voltage: 8 to 12 VDC
• Excitation Voltage: 18 to 28 VDC
• Constant Current: 2 to 20 mA
• Impedance: Less than 150 ohms
• Discharge Time: At least 0.3 sec
• Settling Time: 2.0 sec

Environmental Ratings

• Temperature: -54°C to +121°C
• Humidity: 100% relative, condensing
• Shock: 5000 g peak
• Waterproof: IP68
• Case Isolation: Greater than 10⁸ ohms

Installation Guide

• Mounting Stud: M6x1 Adhesive Stud
• Mounting Thread: 1/4-28 Female
• Mounting Torque: 2 to 5 ft-lb (2.7 to 6.8 N·m)
• Connection: 2-pin MIL connector, top exit

Mechanical Data

• Hex Size: 11/16 inch (1.8 cm)
• Height: 1.65 inch (4.24 cm)
• Weight: 0.051 kg
• Material: Stainless steel
• Seal: Welded, hermetic
• Sensor Element: Ceramic, shear type

Package Includes

• 1x Bently Nevada 200350-11-00-00 Accelerometer
• 12-month warranty
• No certificate included (can be added if needed)

Shipping Details

• Ships by FedEx, UPS, or DHL
• Global delivery available
• Ships same day if in stock

Model Code Tree

• 200350: Sensor Type – Accelerometer
• 11: Mounting Stud – M6x1 Adhesive Stud
• 00: Output – 100 mV/g ±20%
• 00: Approvals – No agency approvals

Real-World Applications

• Steel Plants: Watch gearboxes and rolling motors
• Power Plants: Monitor turbine and fan bearings
• Mining: Protect crushers and big motors
• Oil & Gas: Find faults in pumps early
• Factory Lines: Reduce downtime from machine wear
