200350 Accelerometer 200350-11-00-CN | Bently Nevada

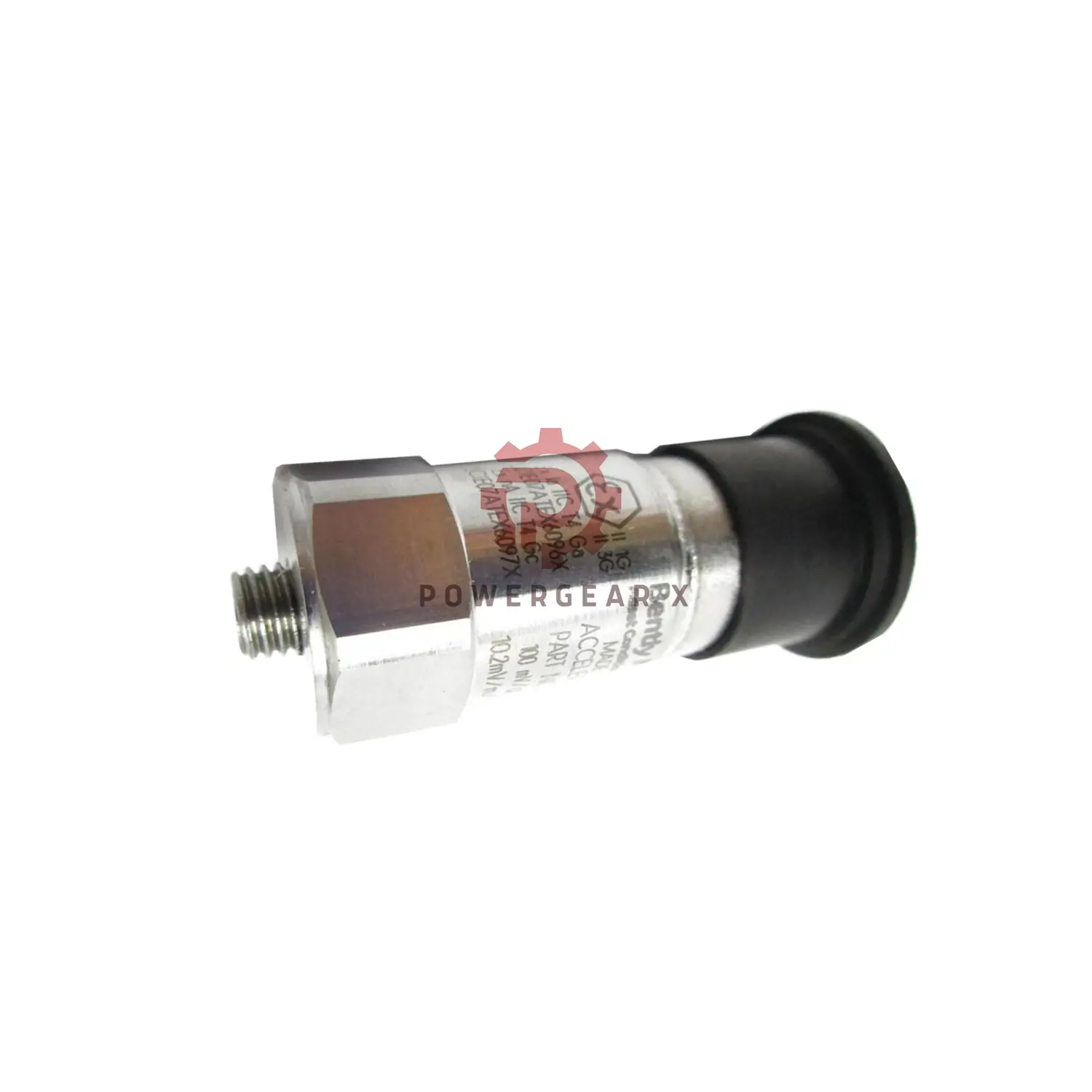

Bently Nevada 200350-11-00-CN Accelerometer

Product Overview

This sensor helps check machine vibration. It works in tough places like oil, gas, and power plants. It gives stable signals and is easy to install.

Key Technical Details

• Range: ±50g
• Sensitivity: 100 mV/g ±20%
• Accuracy: ±1%
• Noise Level: 350 µg (1 to 10 kHz)
• Output: Voltage, 8 to 12 VDC bias
• Power Supply: 18 to 28 VDC
• Current: 2 to 20 mA constant
• Impedance: Less than 150 ohms
• Resonant Frequency: 25 kHz

Temperature & Durability

• Working Temp: -54°C to +121°C
• Shock Limit: 5000 g peak
• Humidity: 100% condensing
• Enclosure: IP68 sealed stainless steel

Mounting Details

• Mount Type: Adhesive Stud
• Mount Thread: 1/4-28 Female
• Mount Torque: 2 to 5 ft-lb (2.7 to 6.8 N-m)
• Hex Size: 1.8 cm
• Height: 4.24 cm
• Weight: 0.051 kg

Electrical & Mechanical

• Element: Ceramic
• Design: Shear mode
• Seal: Hermetic welded
• Connector: 2-pin MIL-C-5015 (top exit)
• Isolation: Greater than 10⁸ ohms

Mounting Code Tree

• 200350 = Sensor Family
• 11 = M6x1 Adhesive Stud
• 00 = 100 mV/g ±20% Output
• CN = Country-Specific Option

Package Includes

• 1 x 200350-11-00-CN Accelerometer
• No certificates included

Warranty & Shipping

• 12-month limited warranty
• Fast delivery via FedEx, UPS, or DHL
