200350-12-00-01 | 200350 Accelerometer Bently Nevada

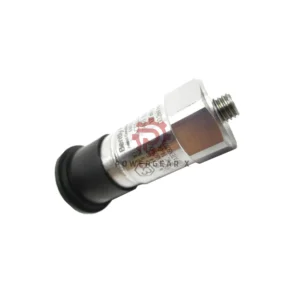

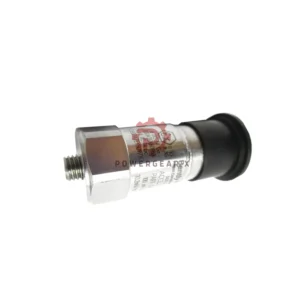

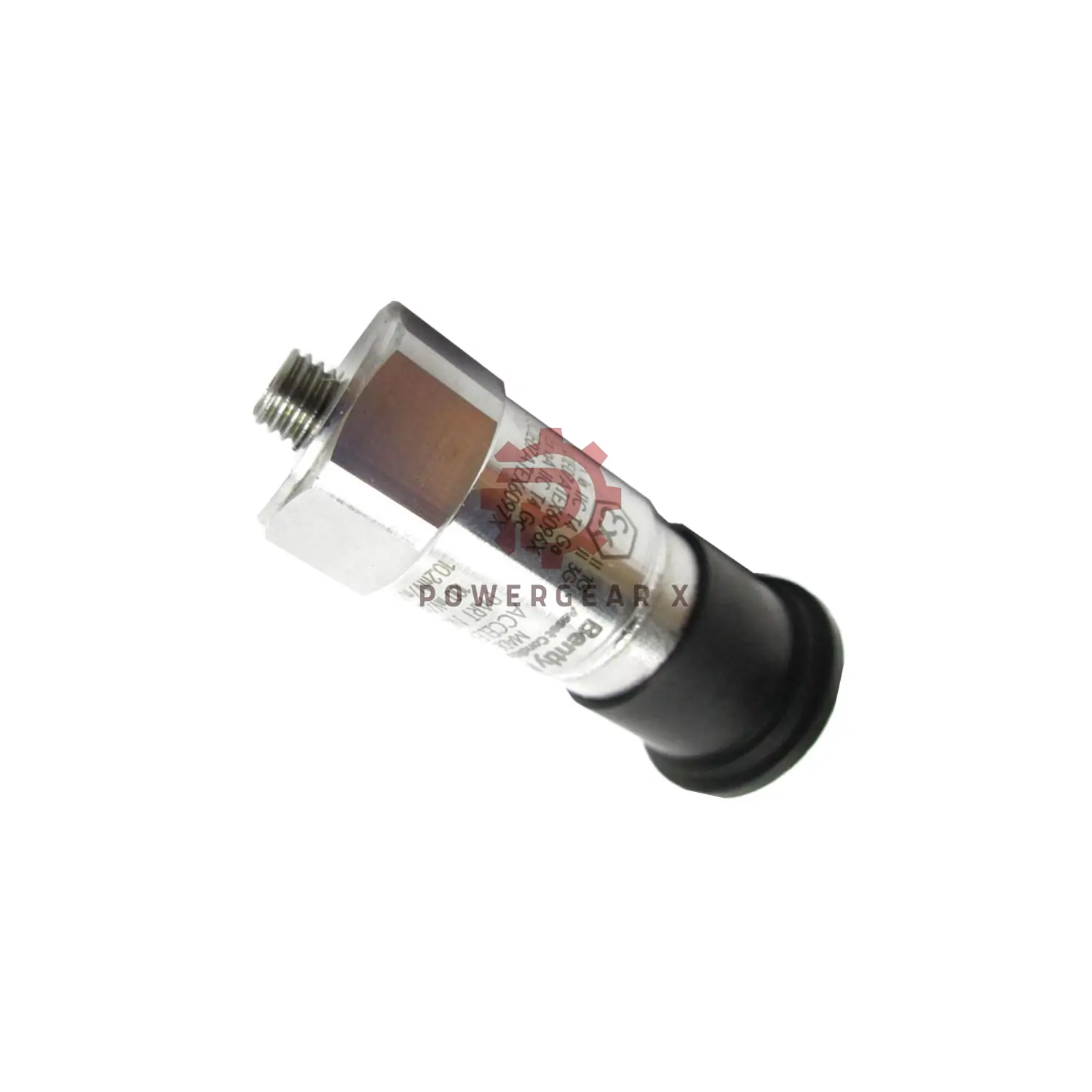

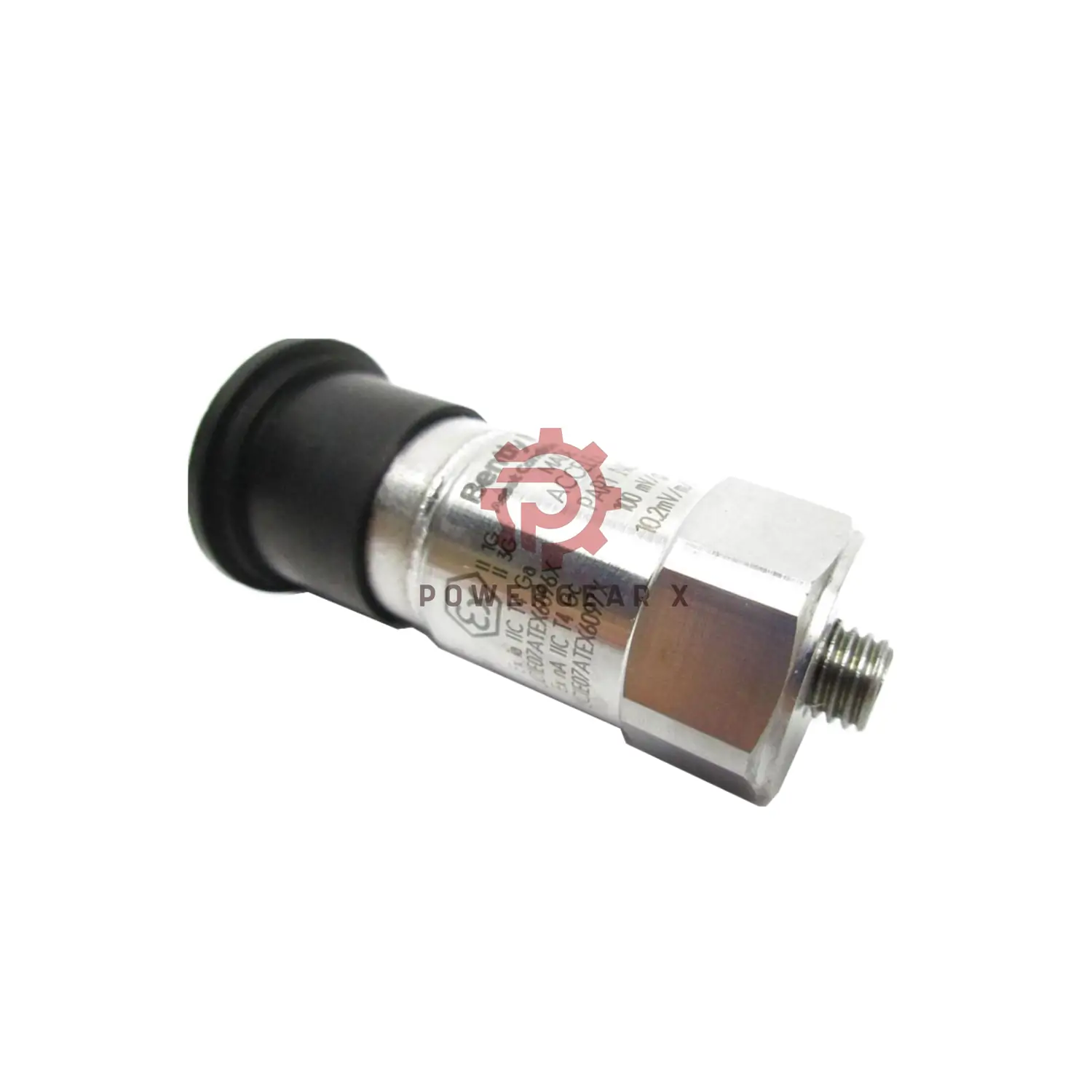

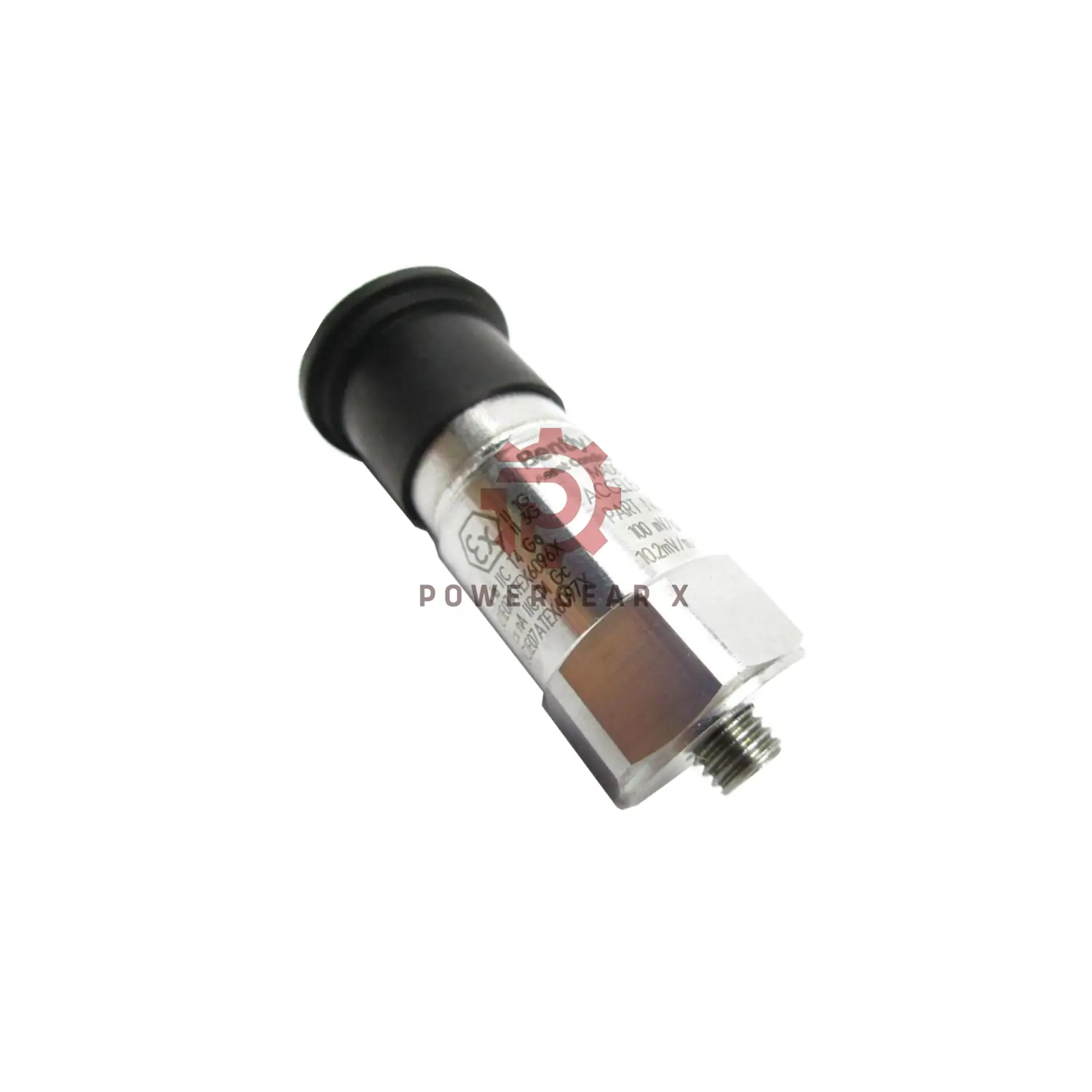

Bently Nevada 200350-12-00-01 Accelerometer

Technical Details

• Sensitivity: 100 mV/g ±20% (10.2 mV/m/s² ±20%)
• Measurement Range: ±50 g
• Frequency Range: 30 to 600000 cpm (0.5 to 10000 Hz)
• Accuracy: ±1% amplitude linearity
• Resonant Frequency: 25 kHz (1500 kcpm)
• Noise Level: 350 μg (1 to 10 kHz)
• Output Type: Voltage
• Bias Voltage: 8 to 12 VDC
• Excitation: 18 to 28 VDC constant current
• Current Draw: 2 to 20 mA
• Output Impedance: Less than 150 ohms
• Electrical Isolation: Greater than 10⁸ ohms
• Discharge Time: ≥0.3 sec
• Settling Time: 2.0 sec

Environmental Performance

• Temperature Range: -54°C to +121°C
• Shock Limit: 5000 g peak
• Humidity: 100% condensing, non-submerged
• Enclosure: Stainless Steel, IP68 sealed

Mounting Guide

• Mounting Type: M8x1.25 Adhesive Stud
• Mounting Thread: 1/4-28 Female
• Torque: 2 to 5 ft-lb (2.7 to 6.8 N·m)
• Hex Size: 1.8 cm
• Height: 4.24 cm
• Weight: 0.051 kg

Model Breakdown

• 200350 = Sensor Series
• 12 = M8x1.25 Adhesive Stud Mount
• 00 = 100 mV/g ±20%
• 01 = Certified: CSA, ATEX, IECEx

Package Details

• 1 x 200350-12-00-01 Sensor
• No certificate included
• Certificate of Origin available on request

Warranty & Delivery

• 12-month warranty
• Fast shipping via FedEx, UPS, or DHL

System Compatibility

• Compatible with Bently Nevada monitoring systems
• Supports integration into custom vibration setups
