200350-09-00-CN | 200350 Accelerometer Bently Nevada

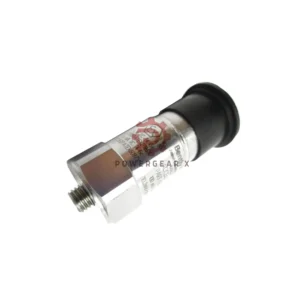

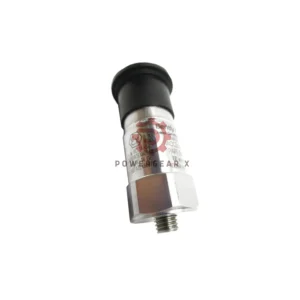

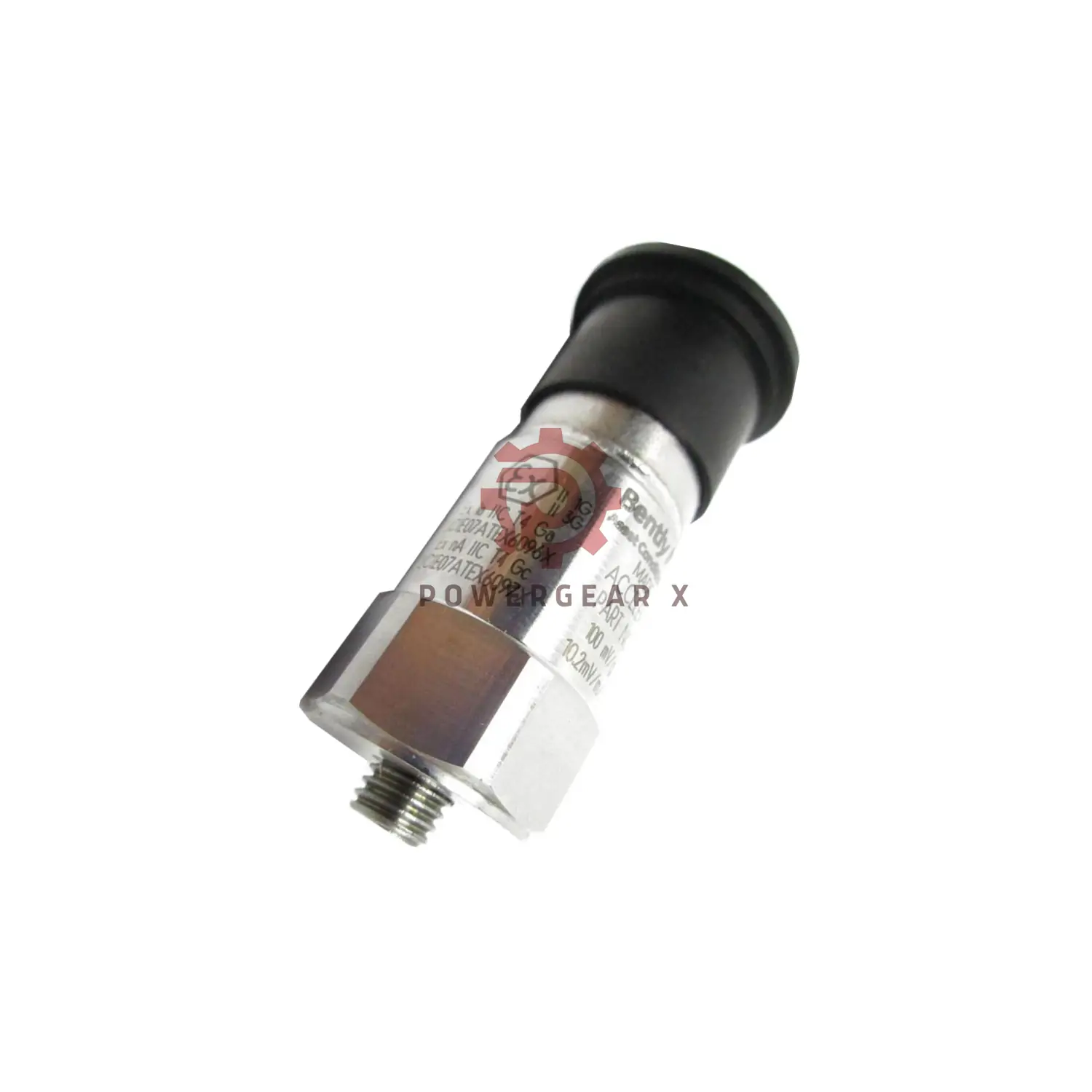

Bently Nevada 200350-09-00-CN Accelerometer

Quick Overview

This sensor checks machine vibration. It works in harsh places. Strong and small. Made in the USA. Used to find problems early in fans, pumps, and motors.

Main Specs

• Output: 100 mV/g ±20%
• Range: ±50 g
• Sensitivity: 10.2 mV/m/s² ±20%
• Frequency: 0.5 to 10,000 Hz
• Noise: 350 μg (3,434 μm/s²)
• Resonant Frequency: 25 kHz
• Power Supply: 18–28 VDC
• Bias Voltage: 8–12 VDC
• Current: 2–20 mA
• Impedance: <150 ohms
• Shock Limit: 5000 g peak

Working Conditions

• Temperature: -54°C to +121°C
• Humidity: 100%, condensing
• Waterproof: IP68
• Isolation: >10⁸ ohms

Mounting Info

• Thread: 1/4-28 Female
• Torque: 2 to 5 ft-lb (2.7–6.8 N·m)
• Connector: 2-pin MIL, top
• Sensor Type: Ceramic, shear
• Seal: Welded, hermetic
• Hex: 11/16 inch (1.8 cm)
• Height: 1.65 inch (4.24 cm)
• Weight: 0.051 kg

Install Tips

• Mount on flat surface
• Use thread or stud (not included)
• Tighten gently, max 6.8 N·m

What’s in the Box

• 1x 200350-09-00-CN Sensor
• 12-month warranty
• No certificate included (available if needed)

Shipping Info

• Ships by FedEx, UPS, or DHL
• Fast delivery worldwide
• Ships same day if in stock

Model Code Tree

• 200350 – Sensor Type
• 09 – No stud
• 00 – Output: 100 mV/g
• CN – Country-specific version
