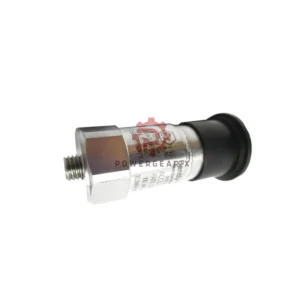

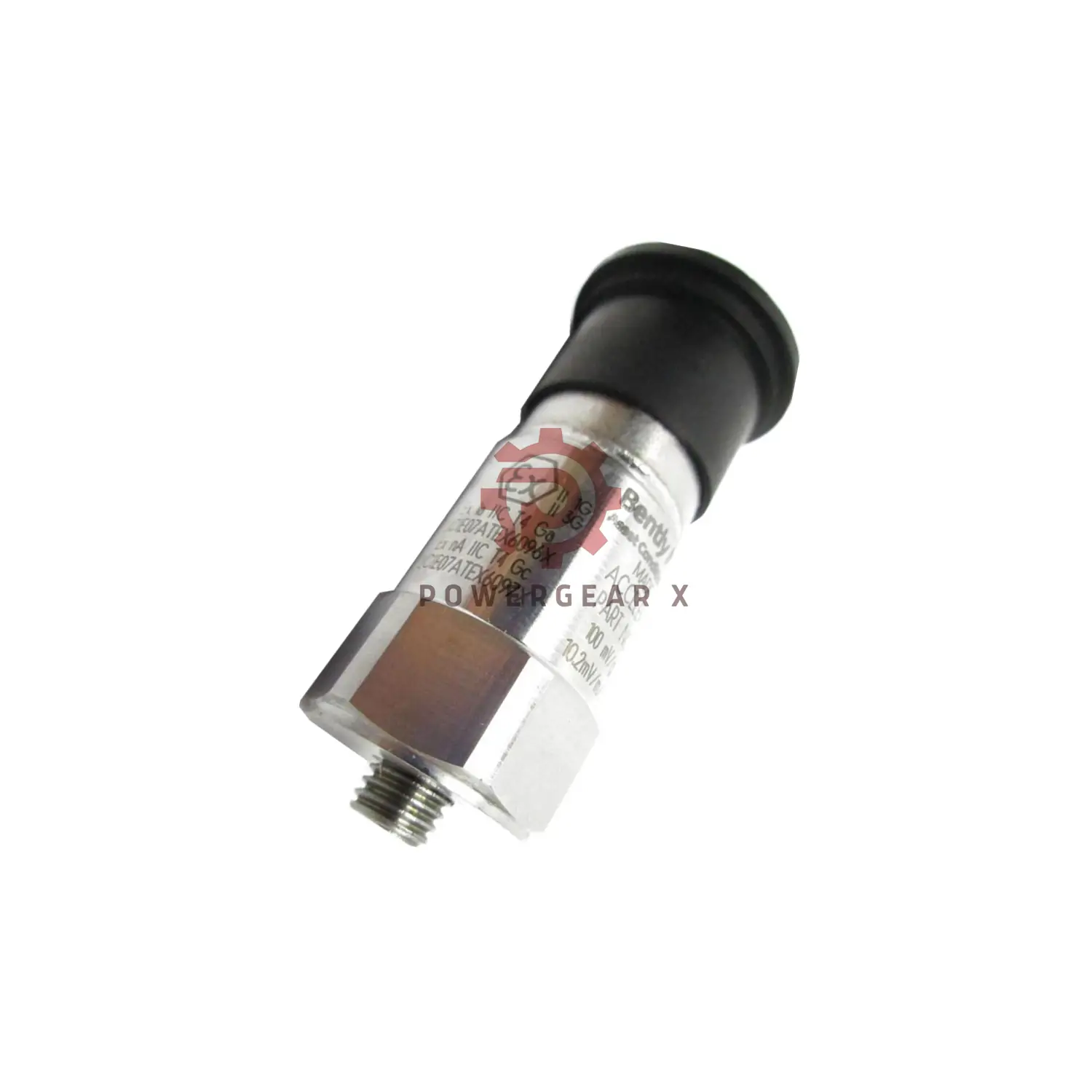

Bently Nevada 200350-00-00-00 Industrial Accelerometer

Overview

The Bently Nevada 200350-00-00-00 is a high-performance accelerometer made for industrial vibration monitoring. It provides fast response, reliable output, and easy mounting in various harsh environments. Made in the USA.

Key Technical Parameters

• Measurement Range: ±50g
• Output Signal: 100 mV/g ±20%
• Frequency Range: 30 to 600,000 cpm (0.5 to 10,000 Hz)
• Mounted Resonant Frequency: 1500 kcpm (25 kHz)
• Linearity: ±1%
• Broadband Noise: 350 μg (1-10 kHz)
• Bias Voltage: 8 to 12 VDC
• Excitation Voltage: 18 to 28 VDC
• Constant Current: 2 to 20 mA
• Output Impedance: <150 ohms
• Discharge Time Constant: ≥0.3 sec

Temperature and Environmental Ratings

• Operating Temperature: -54°C to +121°C
• Shock Limit: 5000 g peak
• Humidity: 100% condensing
• Protection Level: IP68
• Electrical Isolation: >10⁸ ohms

Mechanical and Electrical Details

• Height: 1.65 in (4.24 cm)
• Hex Size: 11/16 in (1.8 cm)
• Weight: 0.051 kg
• Housing Material: Stainless Steel
• Connector Type: 2-Pin Mil-C-5015
• Connection Position: Top
• Sealing: Welded Hermetic

Mounting and Installation

• Mounting Thread: 1/4-28 Female
• Stud Type: 00 = 1/4-28 SS with Brass Tip, 0.5 in
• Mounting Torque: 2 to 5 ft-lb (2.7 to 6.8 N·m)
• Sensing Element: Ceramic
• Sensing Geometry: Shear

Model Code Breakdown

• 200350 = Accelerometer Series
• 00 = Mounting Stud: 1/4-28 SS with Brass Tip
• 00 = Tolerance: 100 mV/g ±20%
• 00 = No Agency Approvals

Shipping and Support

• Courier Options: FedEx, UPS, DHL
• Warranty: 12 Months
• Technical Support: Available 24 Hours
