200155-22-05 – Low Frequency Trendmaster Pro Accelerometer

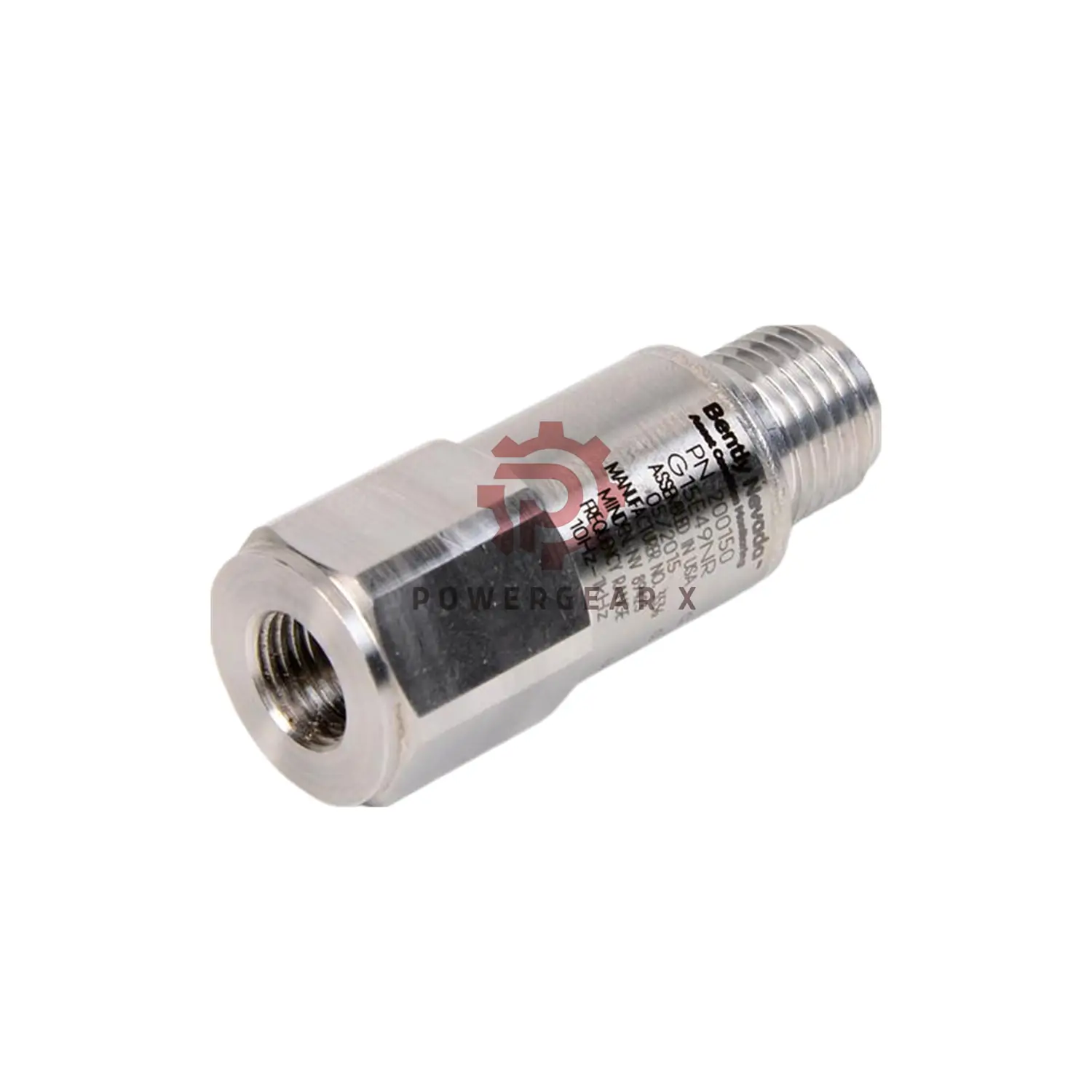

Bently Nevada 200155-22-05 Low Frequency Accelerometer

Product Overview

The 200155-22-05 accelerometer is designed for slow-speed equipment. It is part of the Trendmaster Pro line and supports ProTIM acceleration-to-velocity conversion.

Main Features

• Model: 200155-22-05
• Mounting: Hex plate stud, 3/8-24 OD to M6x1 ID
• Sensor Type: Ceramic shear type
• Material: 316L stainless steel
• Country of Origin: USA

Electrical Specs

• Sensitivity: 10.2 mV/(m/s²) (100 mV/g) at 80 Hz
• Measurement Range: ±196 m/s² (±20 g)
• Frequency: 1.5 to 10,000 Hz (90 to 600,000 cpm)
• Bias Voltage: +2.5 VDC ±0.23
• Excitation: 4.7 to 5.5 VDC
• Current Draw: <800 µA
• Settling Time: ≤2000 ms

Environmental Specs

• Operating Temp: -40°C to +105°C
• Storage Temp: -55°C to +121°C
• Shock Limit: 49,050 m/s² (5000 g)
• Sealing: Hermetic
• Humidity: 100% condensing, non-submerged

Mounting Option Breakdown

• -22 = 3/8-24 OD to M6x1 ID hex plate stud (1-3/8 inch)
• Ideal for retrofitting sensors on metric-threaded mounts
