200155-19-05 – Low Frequency Trendmaster Pro Accelerometer

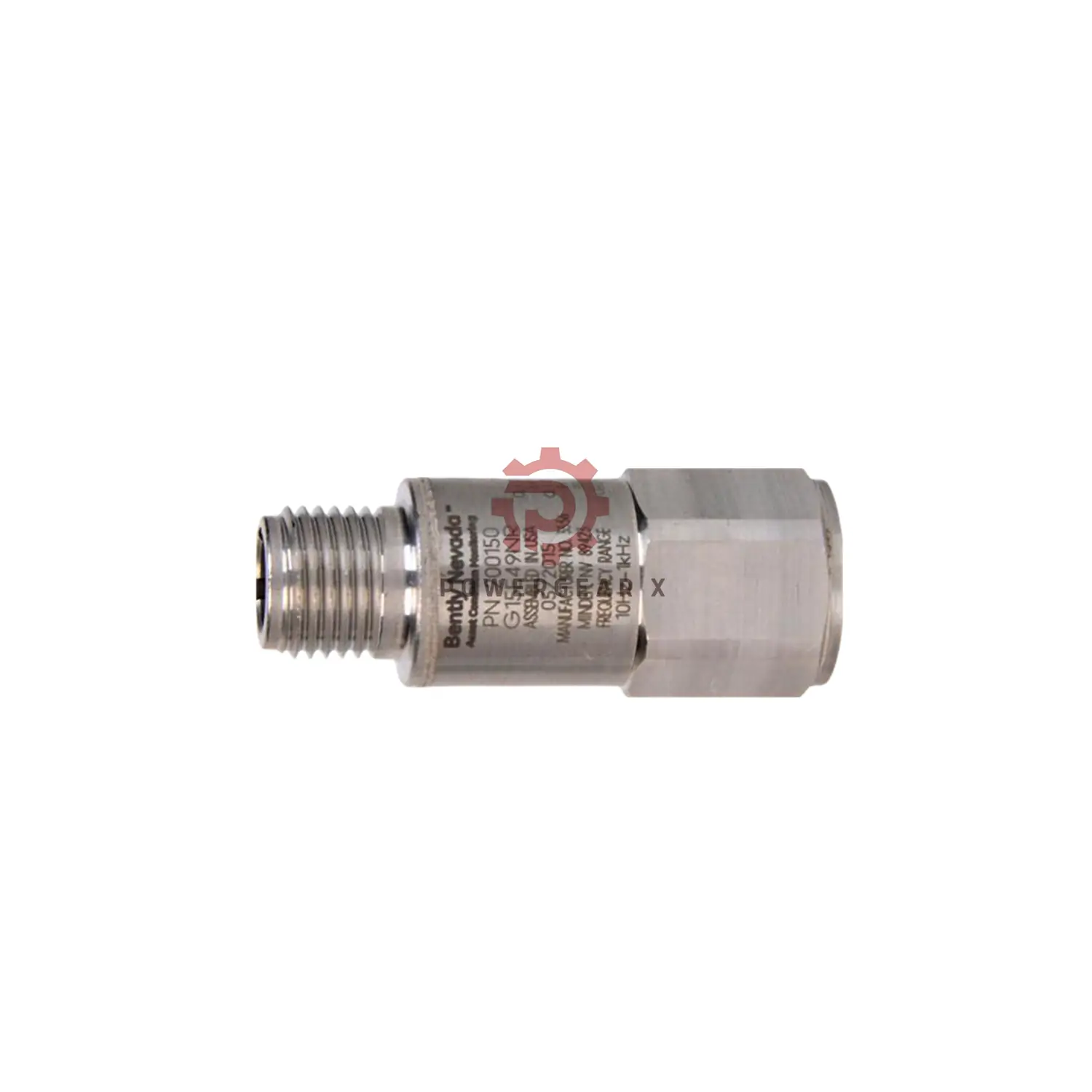

Bently Nevada 200155-19-05 Low Frequency Accelerometer

Product Overview

The Bently Nevada 200155-19-05 is a low-frequency sensor. It is used with Trendmaster Pro systems to monitor slow machines. It converts vibration from acceleration to velocity for better readings.

Main Features

• High sensitivity: 10.2 mV/(m/s²)
• Wide range: ±196 m/s² (±20 g)
• Low power use: under 800 µA
• Quick setup with 1-inch hex stud
• Fast response: ≤2000 ms

Technical Specs

• Frequency: 1.5 to 10,000 Hz
• Excitation: 4.7 to 5.5 VDC
• Output: +2.5 ± 0.23 VDC
• Shock Limit: 49,050 m/s²
• Linearity: ±2%
• Side Sensitivity: ≤7%

Mounting Details

• Mount Thread: 3/8-24 female
• Torque: 2.7 to 6.8 N·m
• Stud Option 19: Quick-Set XDCR adapter, 1-inch hex stud

Build and Materials

• Size: 17.5 mm x 45.7 mm
• Weight: 58 g
• Sensor Type: Ceramic, shear-type
• Housing: 316L stainless steel

Installation Guide

• Use Quick-Set adapter mount
• Apply correct torque
• Link to ProTIM velocity channel (-05)
