200155-05-CN | Low Frequency Trendmaster Pro Accelerometer

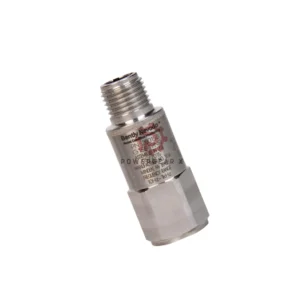

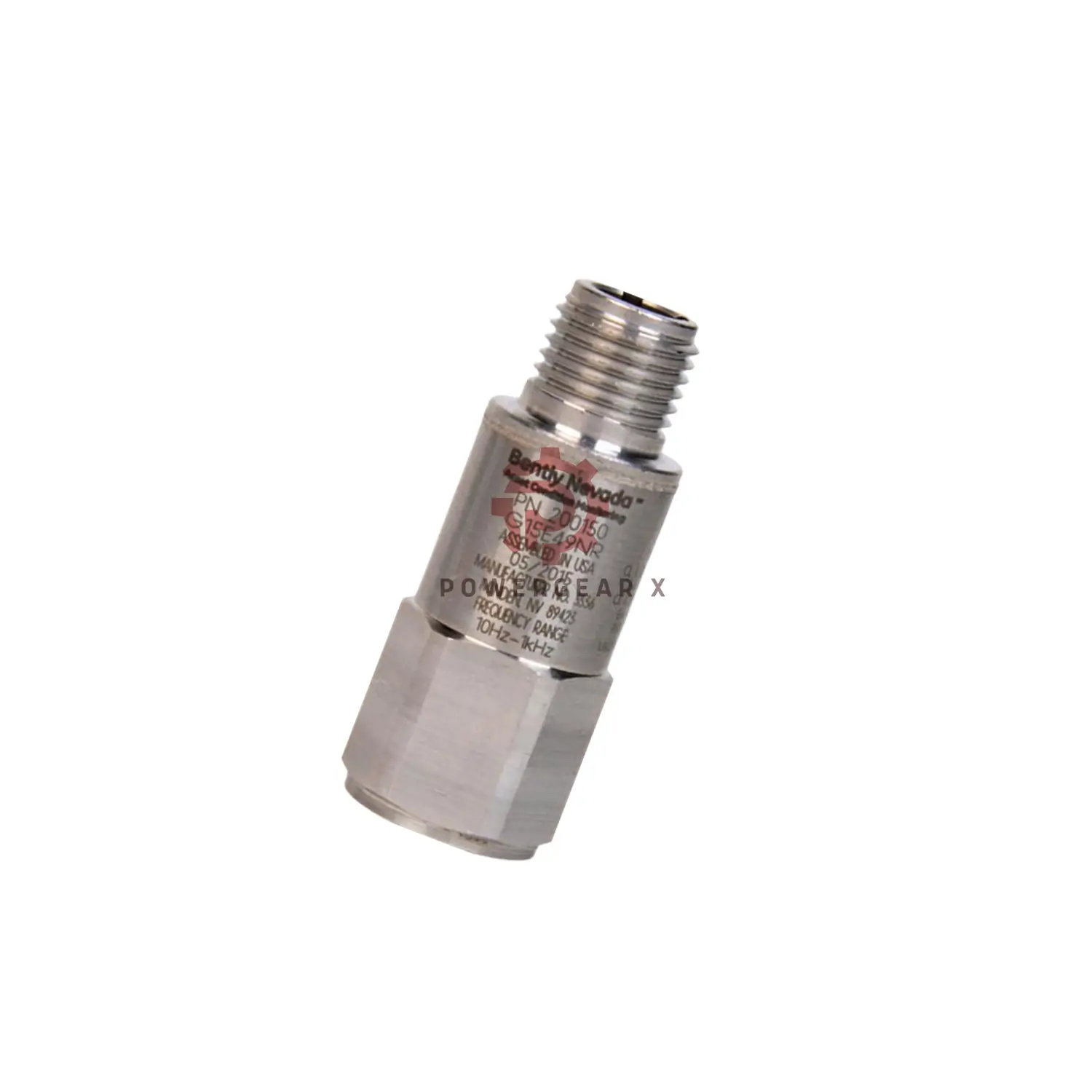

Bently Nevada 200155-05-CN Low Frequency Accelerometer

Product Overview

The Bently Nevada 200155-05-CN is a low frequency accelerometer designed for slow-speed machines like fin fans. It works with ProTIM’s velocity channel.

Core Specifications

• Model: 200155-05-CN
• Mounting Stud: 3/8-24 to 1/4-28 UNF, 1-3/8 inch hex plate
• Sensing Element: Ceramic shear
• Housing Material: 316L stainless steel
• Approvals: Country Specific (CN)

Electrical Data

• Sensitivity at 80 Hz: 10.2 mV/(m/s²) or 100 mV/g
• Range: ±196 m/s² (±20 g)
• Frequency: 1.5 Hz to 10,000 Hz (90 to 600,000 cpm)
• Bias Voltage: +2.5 V ±0.23
• Excitation Voltage: 4.7 to 5.5 V DC
• Quiescent Current: Below 800 µA
• Settling Time: ≤2000 ms

Model Suffix Structure

• 200155 = Trendmaster Pro Accelerometer
• -05 = Mounting stud 3/8-24 to 1/4-28 UNF (1-3/8 inch hex)
• -CN = Country Specific Approval
