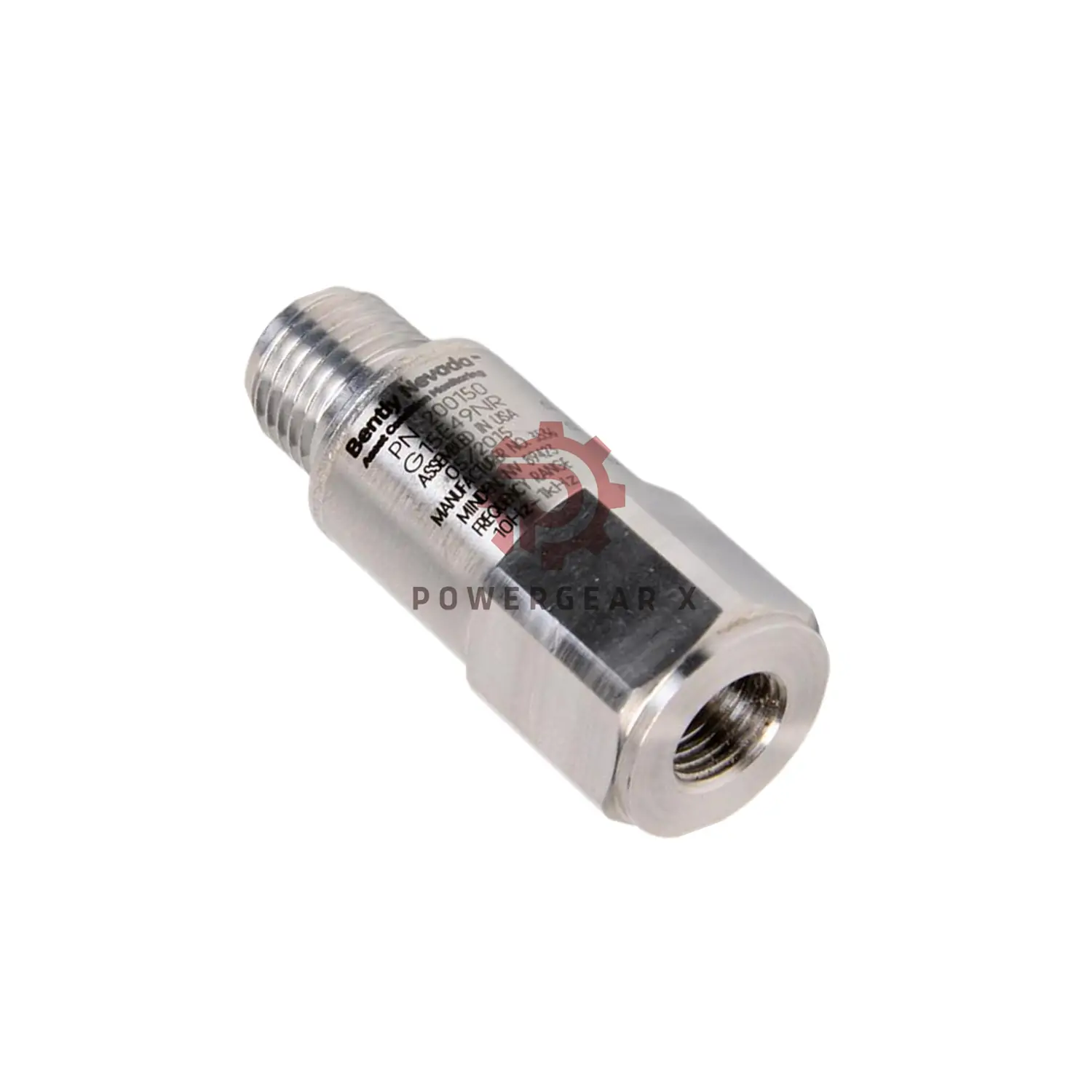

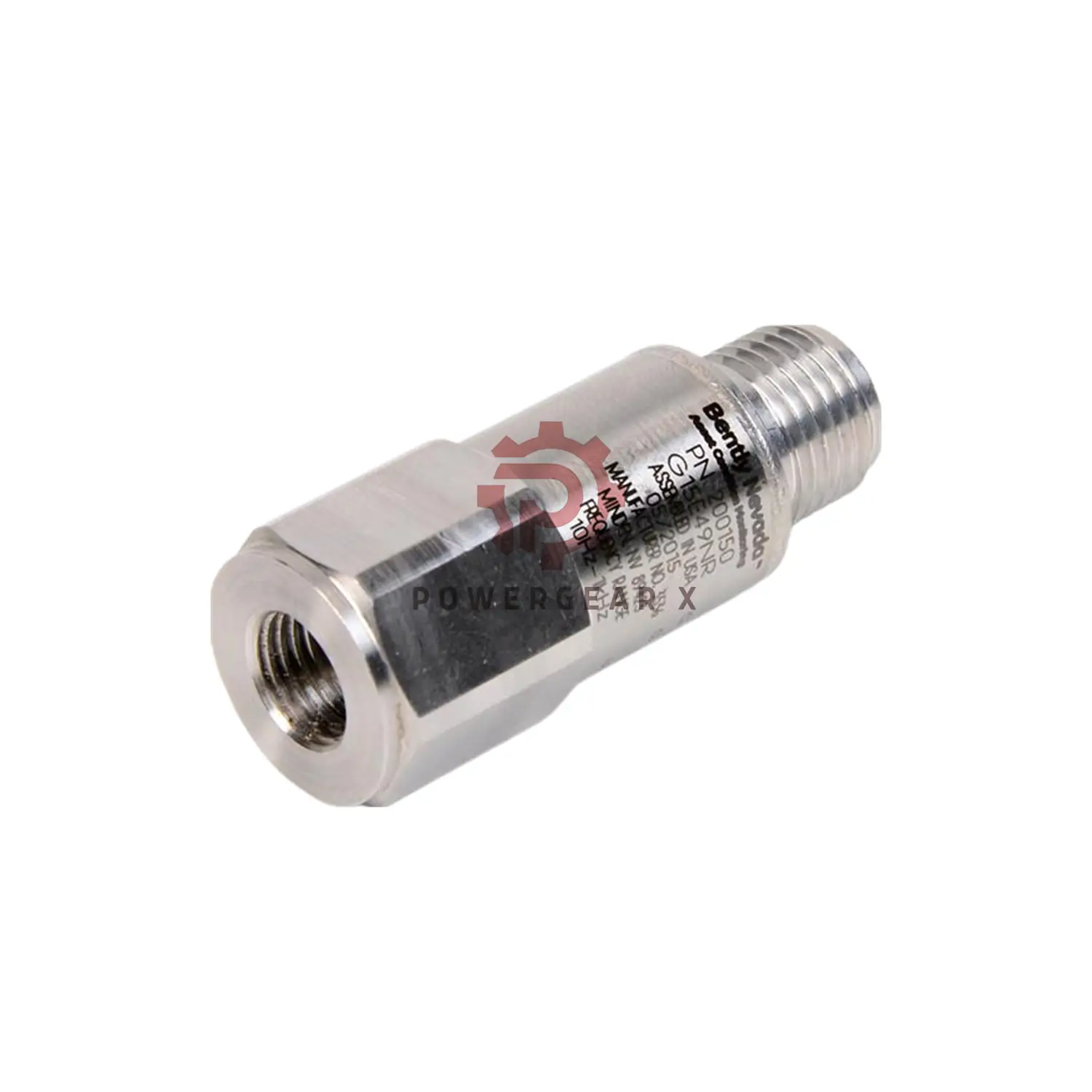

200155-01-05 | Low Frequency Trendmaster Pro Accelerometer

Bently Nevada Accelerometer: Precision Vibration Monitoring

Industrial-grade sensor for critical machinery protection. Designed for Fin-Fan applications and slow-rotating equipment. Made in USA.

Technical Specifications

• Brand: Bently Nevada
• Model: 200155-01-05
• Type: Trendmaster Pro Accelerometer
• Sensitivity: 10.2 mV/(m/s²) @80Hz
• Frequency Range: 1.5-10,000 Hz
• Shock Limit: 49,050 m/s² (5,000g)
• Operating Temp: -40°C to +105°C
• Output Voltage: +2.5±0.23 Vdc
• Weight: 58g (2.0 oz)

Mounting Options

• 3/8-24 threaded stud (included)
• 2 adhesive mount frames (included)
• Torque range: 2.7-6.8 N•m

Shipping & Warranty

• Global delivery: FedEx/UPS/DHL
• 12-month manufacturer warranty

Installation Notes

• Allow 24-hour cure time for adhesive mounts
• Maintain clean surface for optimal adhesion
• Verify polarity: SIG+ to SIG-
• Use 4.7-5.5Vdc power supply

Performance Data

• Transverse sensitivity: ≤7%
• Amplitude linearity: ±2% (1-10g)
• Settling time: ≤300 ms
• Quiescent current: <800 µA
• Humidity tolerance: 100% condensing
