200152-25-10 – Accelerometer Interface Standard Cable

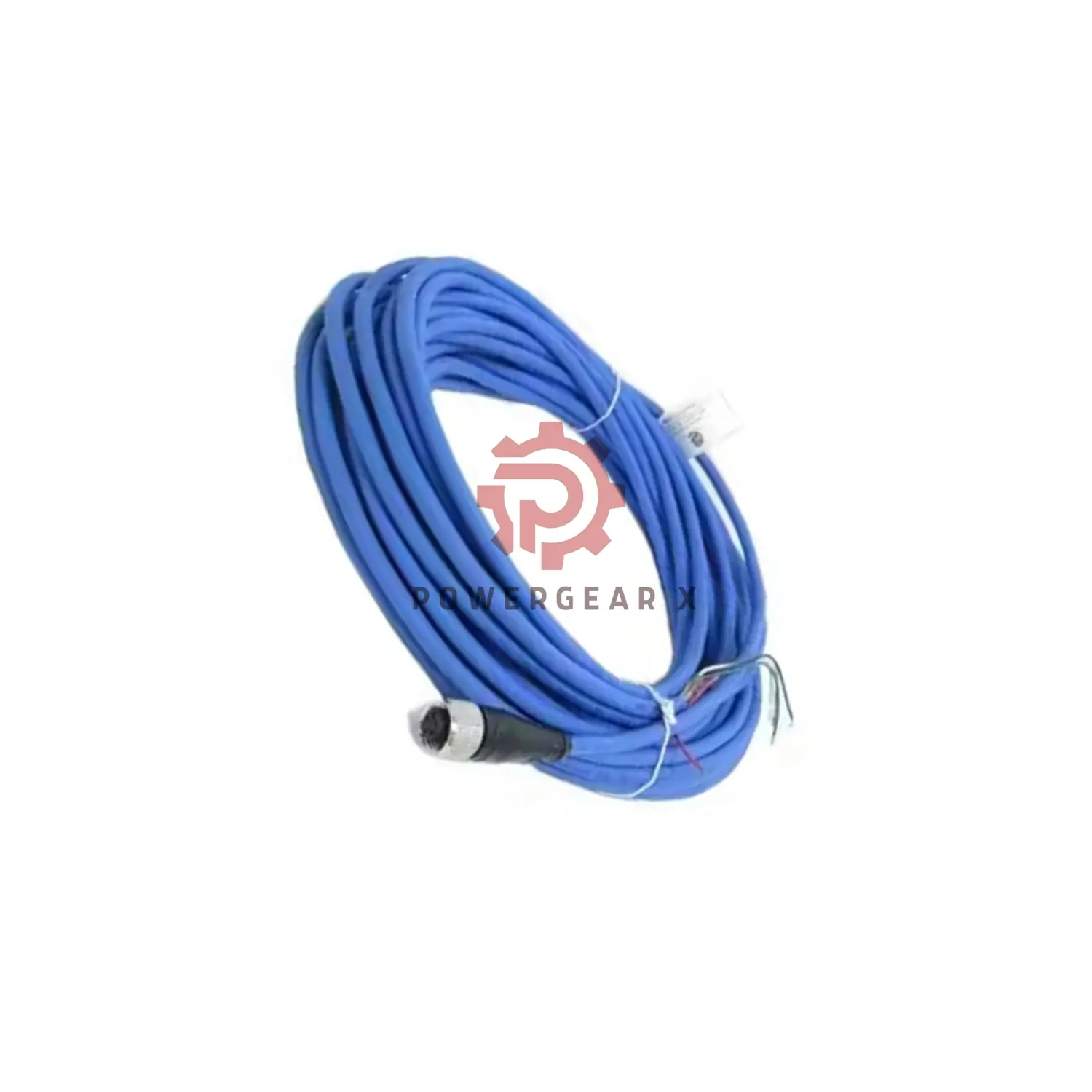

Bently Nevada 200152-25-10 Accelerometer Interface Cable

Product Overview

This 25-meter cable connects to an accelerometer with an enhanced grip nut for better handling. Ideal for long-distance installations in rough industrial zones.

Model Breakdown

• 200152: Accelerometer interface cable series
  • -25: Cable length 25.0 meters
  • -10: Enhanced coupling nut for easier tightening on accelerometer end

Key Technical Specifications

• Length: 25 meters
• Minimum Bend Radius: 73.7 mm
• Cable Temp Range: -20°C to +100°C
• Connector Temp Range: -55°C to +121°C
• Cure Time: 24 hours
• Conductors: 4-core, 22 AWG
• Shield: 85% braided shield with drain wire
• Outer Jacket: PVC
• Seal Protection: IP67 with DC4 compound for thermal moisture resistance

Installation Guide

• Do not bend cable under 73.7 mm
• Do not flex when temperature is below -20°C
• Enhanced nut improves grip with gloves
• Ensure clean mating with sensor end

Package Includes

• 1x Bently Nevada 200152-25-10 cable
• No manuals or certificates included

Warranty and Shipping

• 12-month standard warranty
• Shipping via FedEx, UPS, or DHL
• Ready stock with short lead time
• 24-hour technical support available
