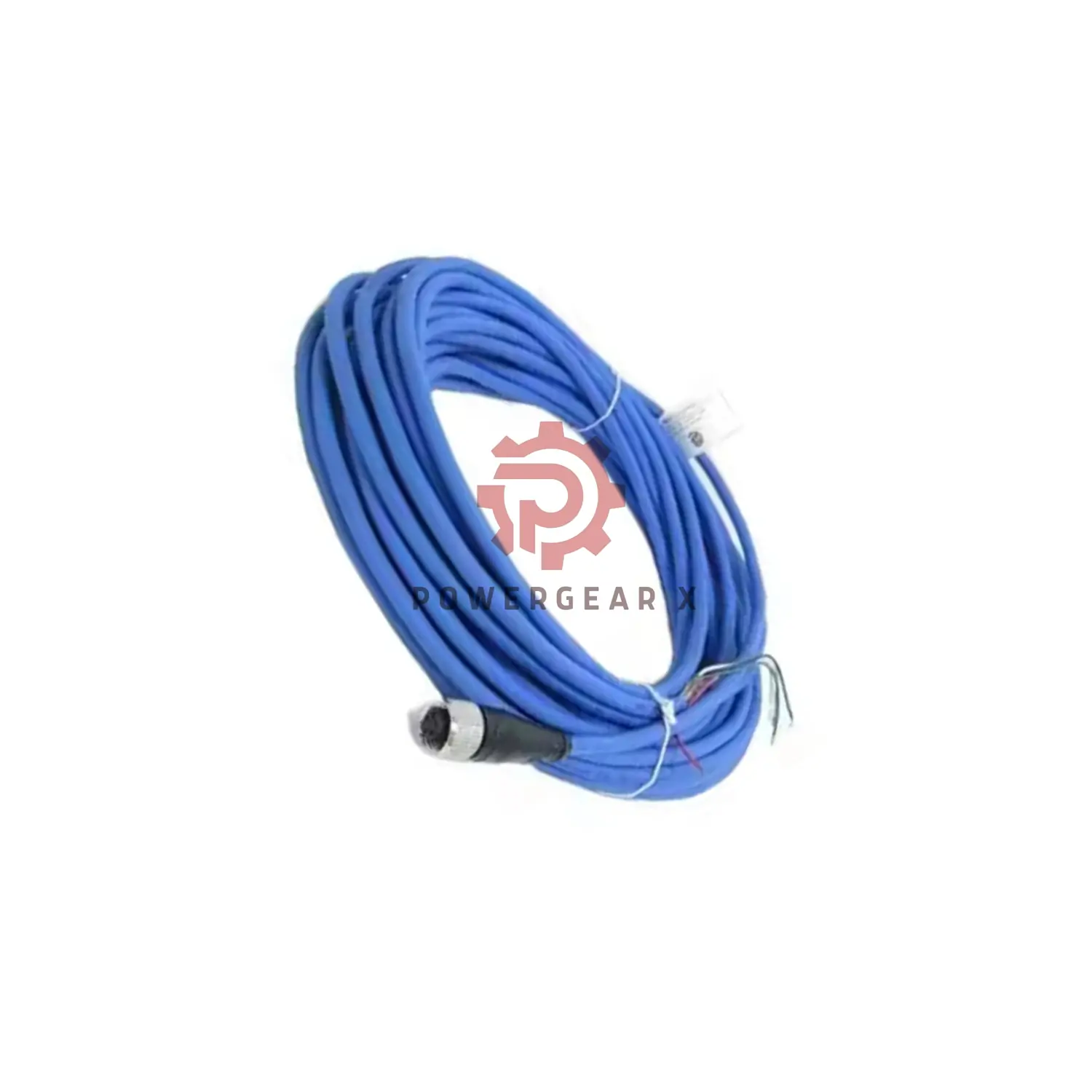

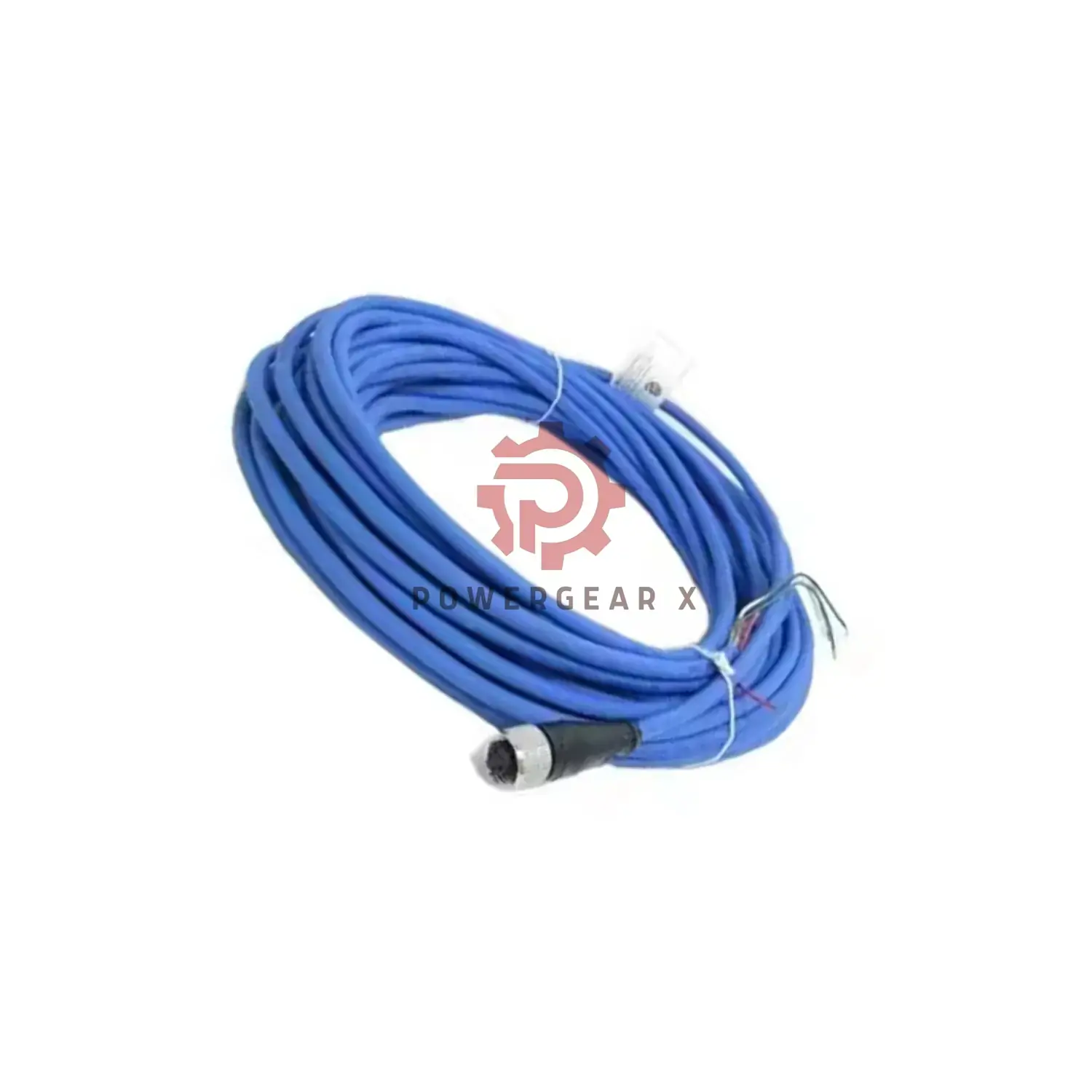

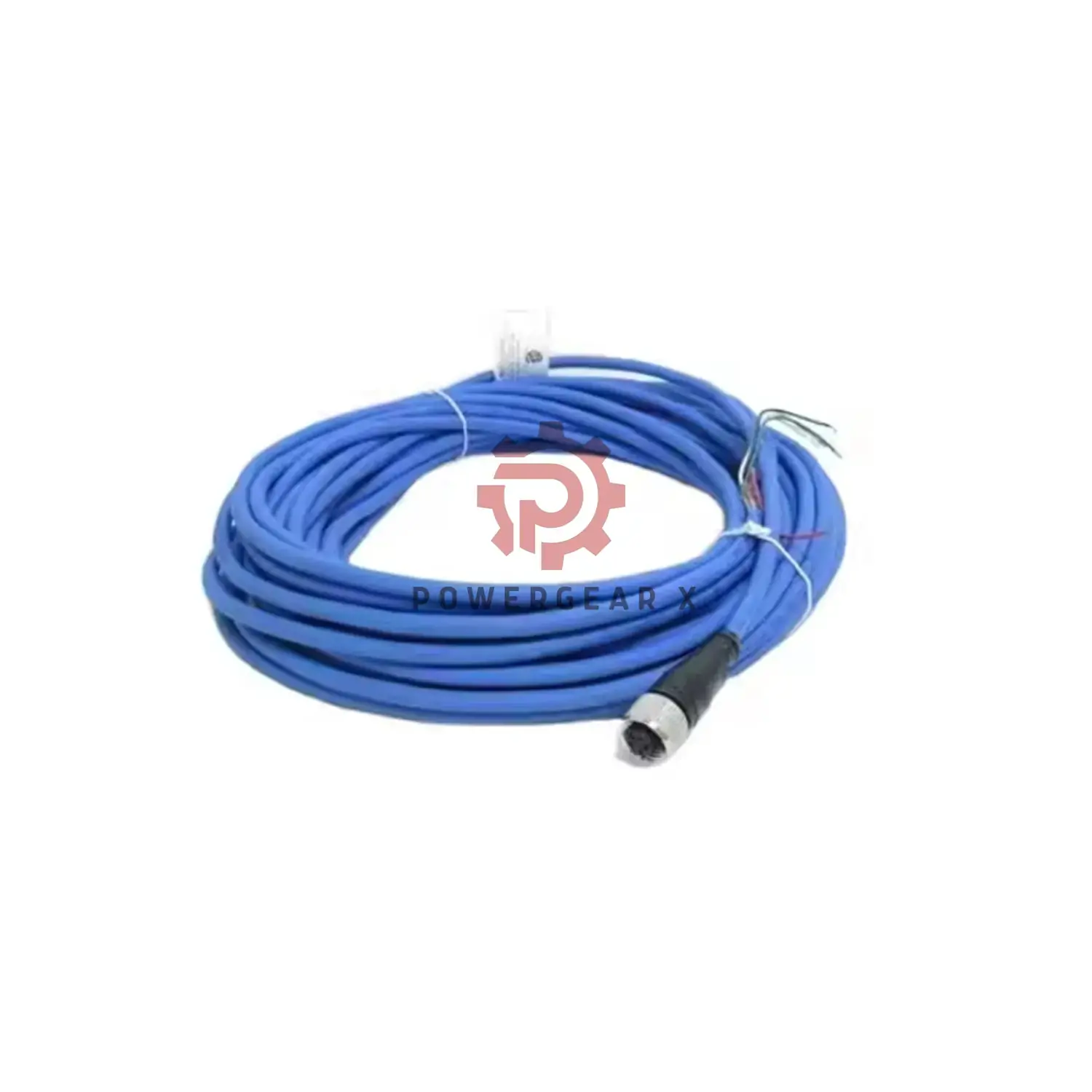

Bently Nevada 15m Accelerometer Cable with Enhanced Coupling Nut
📌 Product Overview
Specialized 15-meter cable with enhanced grip coupling for vibration monitoring systems. Features connector only on accelerometer end with IP67 sealing for industrial environments.
🔍 Product Identification
| Full Part Number | 200152-15-10 |
| Base Model | 200152 (Accelerometer End Only) |
| Length Code | -15 (15 meters) |
| Coupling Nut | -10 (Enhanced Grip) |
⚙️ Technical Specifications
| Cable Type | 4-conductor shielded |
| Wire Gauge | 22 AWG |
| Shielding | Braided (85% coverage) + drain wire |
| Bend Radius | 73.7 mm minimum |
| Jacket Material | PVC |
| Connector | Nickel-plated enhanced nut |
| Seal Rating | IP67 |
🌡️ Temperature Specifications
| Operating Range
-20°C to +100°C No flexing below -20°C |
Storage Range
-55°C to +121°C |
🔧 Enhanced Coupling Advantage
Feature -10 coupling nut provides:
- Knurled surface for better grip with gloves
- 25% higher torque capability than standard nuts
- Reduced slippage in high-vibration environments
- Easier maintenance in confined spaces
⚠️ Critical Installation Notes
- Maintain 73.7mm bend radius at all points
- Allow 24-hour cure time after connection
- Use strain relief at connection points
- Secure cable every 1.5 meters with UV-resistant ties
- Test seal integrity after thermal cycling
❓ Frequently Asked Questions
Q: What’s the maximum voltage rating?
A: Rated for 300V AC/DC operation
Q: Can I use this in outdoor installations?
A: Only in protected locations – not for direct weather exposure
Q: What’s the signal loss over 15m?
A: Less than 2% at 1kHz frequency
Q: Is the connector waterproof?
A: IP67 rating protects against temporary immersion
