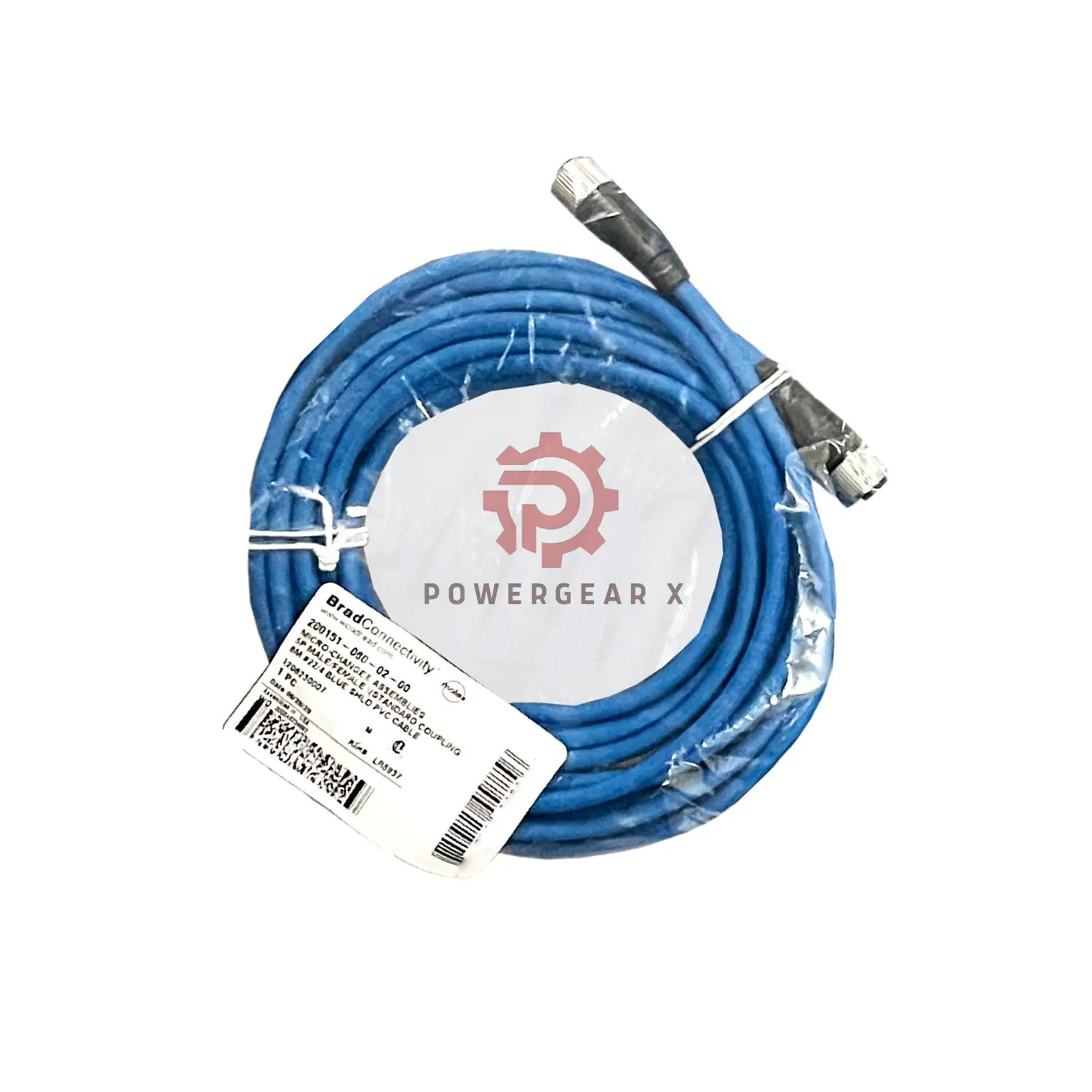

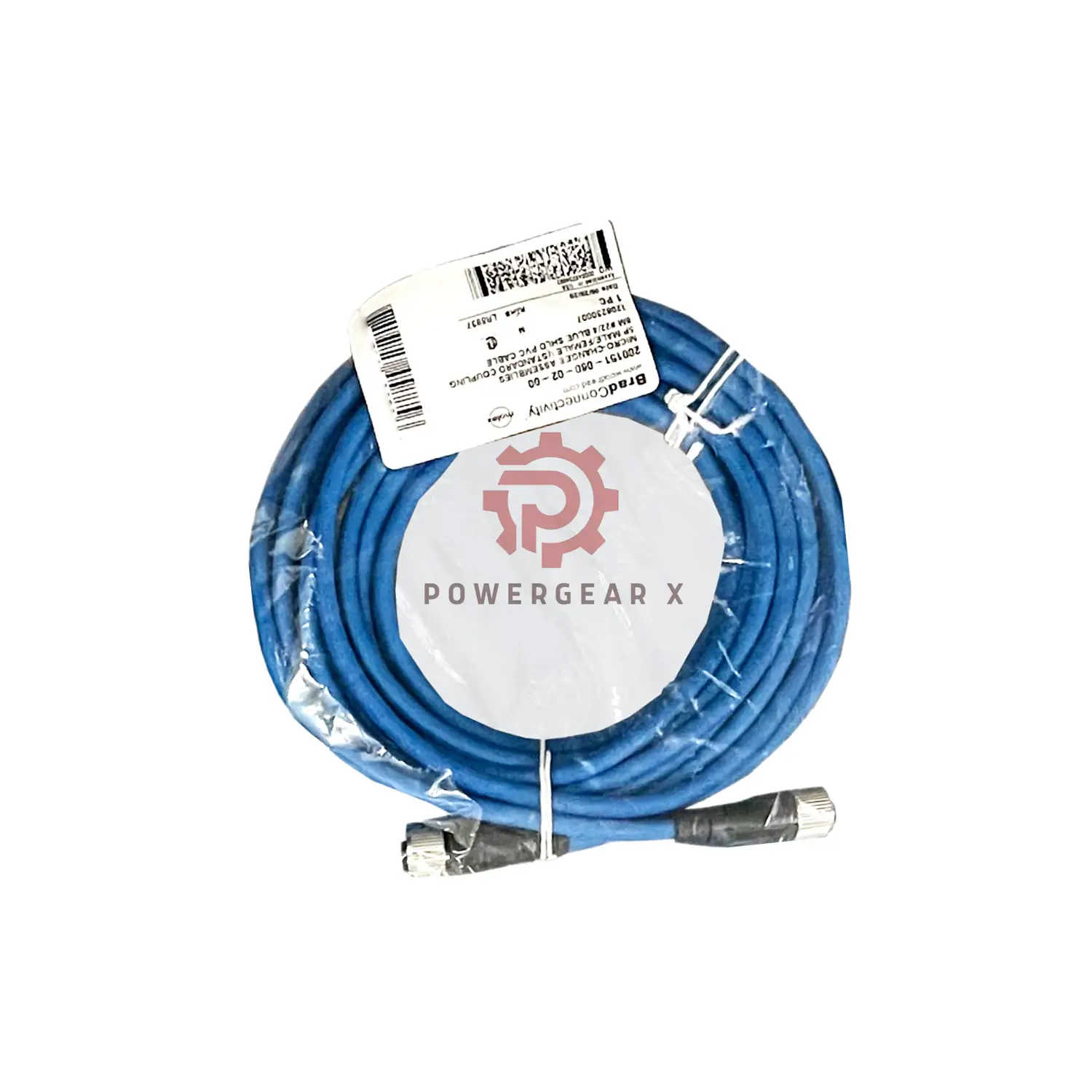

Bently Nevada Accelerometer Standard Cable – Precision Vibration Measurement
🔌 Cable Overview
This 2-meter blue cable connects vibration sensors to monitoring systems. With connectors on both ends, it ensures accurate signal transfer for critical machinery health checks.
📋 Product Identification
| Full Part Number | 200151-20-02-00 |
| Base Model | 200151 (Standard Cable) |
| Length Code | -20 (2.0 meters) |
| Armor Option | -02 (Blue, No Armor) |
| Coupling Nut | -00 (Standard) |
⚙️ Technical Specifications
Wire Gauge: 22 AWG (4 conductors)
Shielding: Braided shield (85% coverage) + drain wire
Bend Radius: 63.5 mm minimum
Jacket Material: PVC (blue)
Connectors: Nickel-plated coupling nuts
Seal Rating: IP67 weatherproof
Moisture Protection: DC4 insulating compound
🌡️ Temperature Ratings
Operating Range
-20°C to +100°C
(-4°F to +212°F)
Avoid flexing below -20°C
Storage Range
-55°C to +121°C
(-67°F to +250°F)
Cure Time
24 hours after installation
🏭 Industry Applications
- Power Plants: Turbine vibration monitoring at 3 European energy facilities
- Oil Refineries: Pump health tracking in Gulf Coast refineries
- Manufacturing: Conveyor system monitoring in automotive plants
- Water Treatment: Pump vibration analysis in municipal systems
⚠️ Installation Notes
- Maintain minimum 63.5mm bend radius
- Allow 24-hour cure time after connection
- Use in dry environments below 100°C
- Secure with strain relief at connection points
❓ FAQ
Q: Can this cable be used outdoors?
A: Only in protected locations – not for direct weather exposure
Q: What’s the maximum voltage rating?
A: Rated for 300V AC/DC operation
Q: Can I cut this cable to custom length?
A: No – cutting voids warranty and affects calibration
Q: How do I clean the connectors?
A: Use isopropyl alcohol and lint-free cloth only
