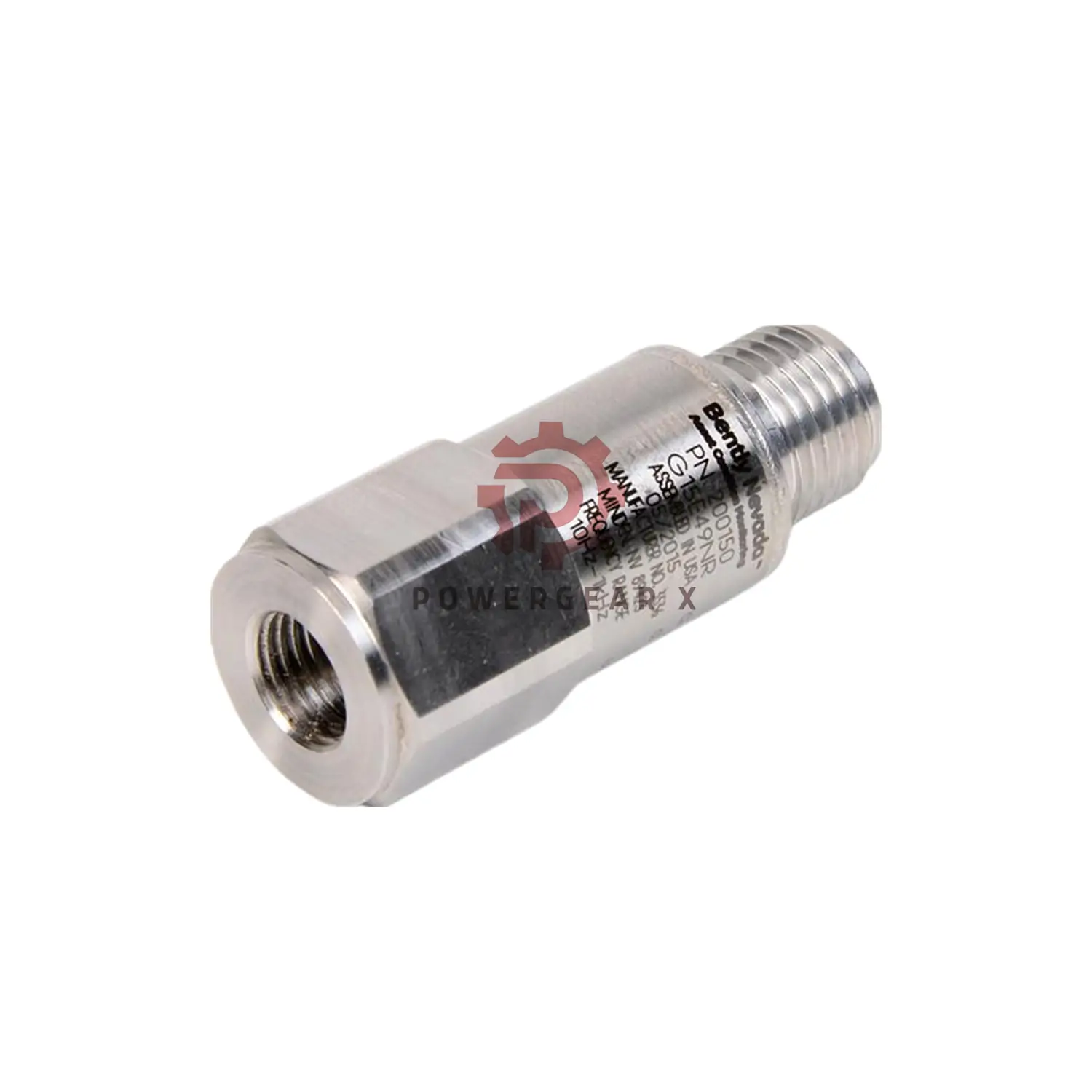

Bently Nevada 200150-05-05 Accelerometer – Industrial Vibration Monitoring
📌 Product Overview
Made in USA accelerometer for Trendmaster 2000/Pro systems. Certified for hazardous areas with CSA/ATEX/IECEx approvals. Ideal for general vibration monitoring.
⚙️ Key Specifications
| Part Number | 200150-05-05 |
| Sensitivity | 10.2 mV/(m/s²) ±12% |
| Frequency Range | 10-1000 Hz |
| Shock Limit | 49,050 m/s² (5,000g) |
| Operating Temp | -40°C to +105°C |
| Mounting | 3/8-24 female thread |
| Weight | 58g (2.0 oz) |
✅ Approval Details
Code -05: Certified for global use in hazardous locations:
- ATEX Zone 1/21 (Explosive atmospheres)
- IECEx Ex ia IIC T4 Ga
- CSA Class I, II, III Div 1
🔧 Mounting Information
Stud Option -05: 3/8-24 to 1/4-28 UNF adapter
- Clean mounting surface thoroughly
- Apply thread locker to stud
- Torque to 2.7-6.8 N•m (2-5 ft•lbf)
- Allow 24-hour cure time before operation
📊 Performance Data
- Resonant Frequency: >20 kHz
- Linearity Error: ±2% (1-10g range)
- Transverse Sensitivity: ≤7%
- Response Time: ≤300 ms to 5% bias
- Output Bias: +2.5 ±0.23 Vdc
- Current Draw: <800 µA
❓ FAQ

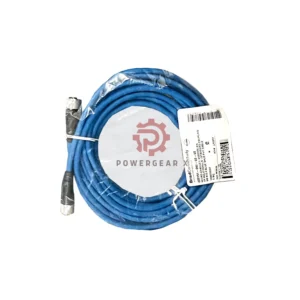

Q: What cable is compatible?
A: Use with 200151 series cables
Q: Can it monitor low-speed equipment?
A: Yes, down to 10Hz (600 RPM)
Q: Is calibration certificate included?
A: Optional COO available at checkout
Q: What’s the lifespan?
A: 5+ years in industrial environments
