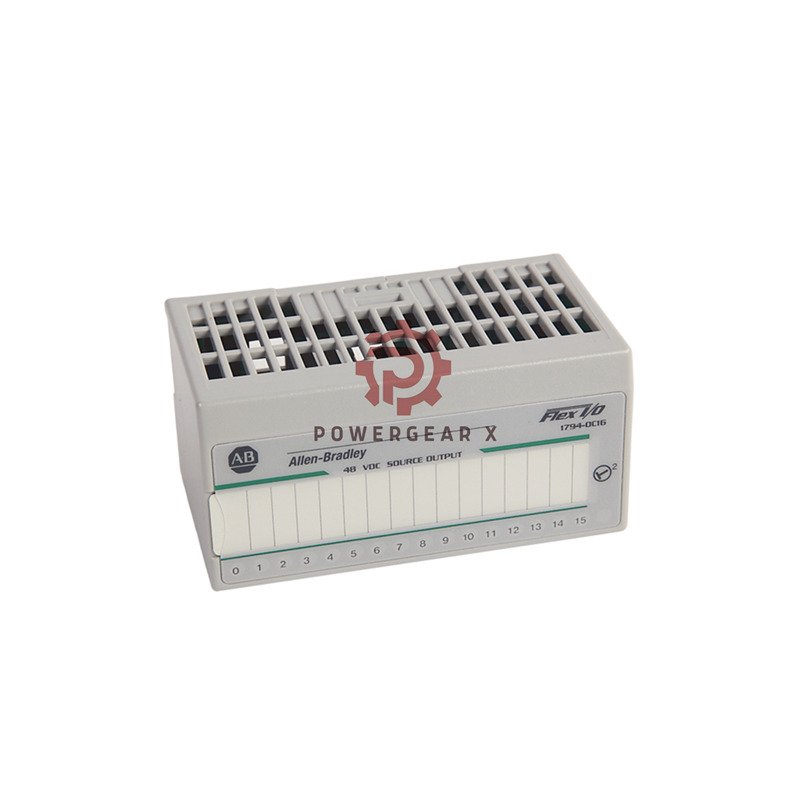

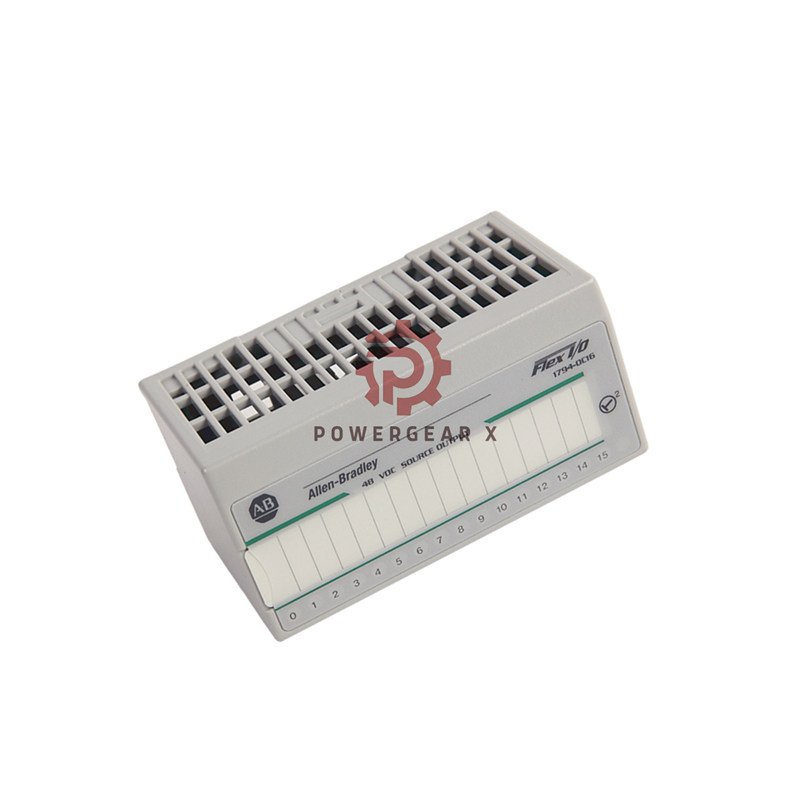

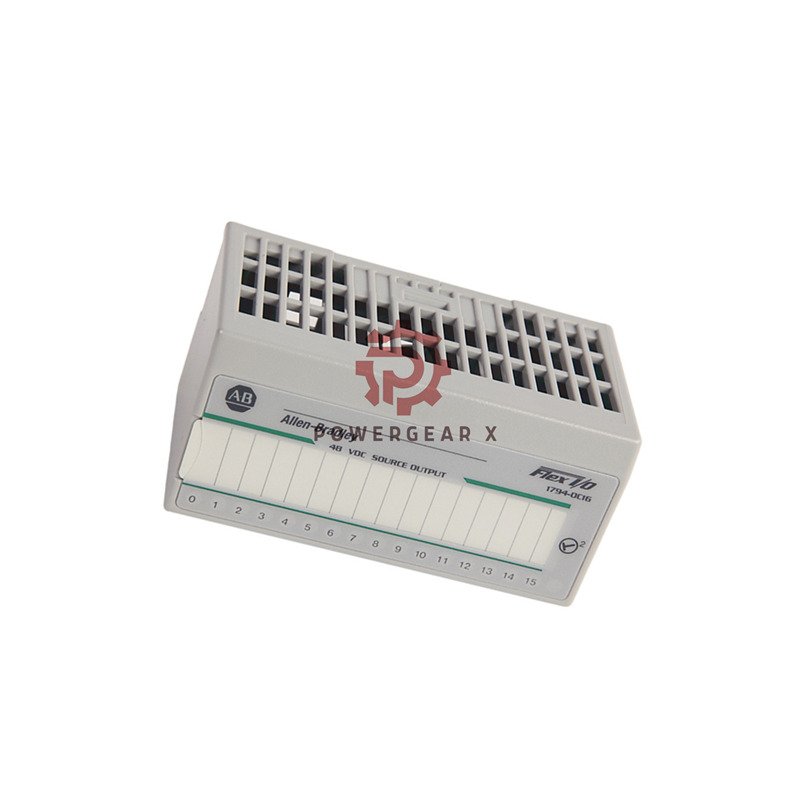

Allen-Bradley 1794-OC16: 48VDC Output Power Module
The Allen-Bradley 1794-OC16 delivers reliable 48VDC output power for industrial applications. This robust module controls high-voltage devices with precision and safety.
Technical Specifications
- Brand & Model: Allen-Bradley 1794-OC16
- Output Type: 16 non-isolated sourcing outputs
- Voltage Range: 30-60VDC operating
- Current Capacity: 500mA per channel
- Total Current: 8A maximum per module
- Voltage Drop: 1.0V maximum @ 0.5A
- Leakage Current: 1.0mA maximum off-state
- FlexBus Current: 80mA @ 5VDC
- Isolation Test: 1900VDC for 1 second
- Power Dissipation: 3.7W @ 60VDC
- Weight: 0.11 kilograms
- Dimensions: 3.7″ x 3.7″ x 2.7″
- Mounting: Horizontal or vertical installation
- Keyswitch Position: Position 2
Compatible Terminal Bases
- 1794-TB3 standard terminal base
- 1794-TB3S screw terminal base
- 1794-TB3K keyed terminal base
- 1794-TB3SK keyed screw base
- All bases support easy field wiring
Installation Advantages
- Module replacement without wiring disturbance
- No additional terminal blocks required
- DIN rail mounting for secure installation
- Vertical or horizontal mounting flexibility
- Simple keyswitch configuration
Quality Assurance
- 12-month warranty
- Global shipping via FedEx, UPS, DHL
- Tested to industrial standards
- Reliable performance guarantee
Common Questions
- What voltage does this module support? It operates from 30 to 60 volts DC.
- Can I replace modules without rewiring? Yes, the terminal base keeps wiring intact.
- What is the maximum current per output? Each output handles 500mA continuously.
- Which controllers work with this module? It works with Allen-Bradley control systems.
- How are output status monitored? Sixteen LED indicators show each output’s status.
