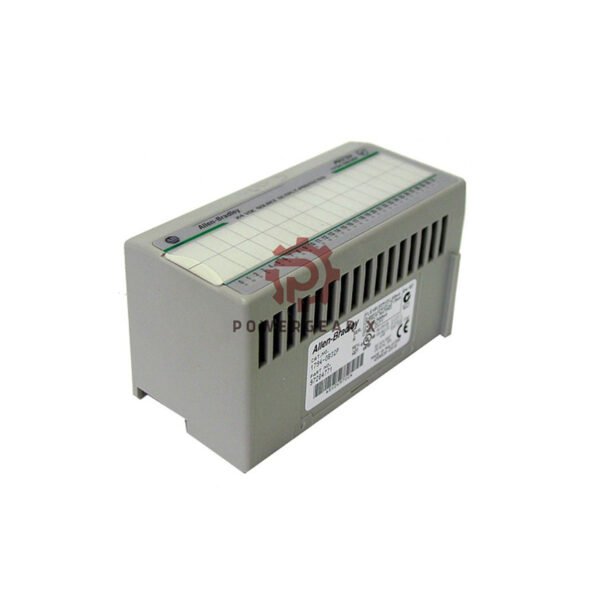

Allen-Bradley 1794-OB32P Protected DC Output Module
The 1794-OB32P provides thirty-two protected DC outputs in one compact module. This advanced module includes individual channel protection to prevent damage from overloads.
Detailed Specifications
- Brand & Model: Allen-Bradley 1794-OB32P
- Output Type: 32 sourcing DC outputs
- Voltage Range: 10-31.2VDC (24VDC nominal)
- Current per Channel: 500mA maximum
- Total Current: 14A (6A for channels 0-15, 8A for 16-31)
- Surge Protection: 2A for 50ms (repeatable every 2s)
- Response Time: 0.5ms OFF to ON, 1ms ON to OFF
- Leakage Current: 0.5mA maximum
- Isolation: 50V continuous
- Power Consumption: 5.3W at 31.2VDC
Environmental Ratings
- Operating Temperature: 0°C to 55°C (32°F to 131°F)
- Storage Temperature: -40°C to 85°C (-40°F to 185°F)
- Vibration Resistance: 5g @ 10-500 Hz
- Shock Resistance: 30g operating shock
- Humidity Range: 5-95% non-condensing
Compatibility Information
- Terminal Bases: 1794-TB32, 1794-TB32S
- DIN rail mounting for easy installation
- Works with all Flex I/O communication adapters
- Compatible with standard 24VDC power supplies
Package & Service Details
- One 1794-OB32P output module
- Installation and user documentation
- 12-month warranty
- Worldwide shipping via FedEx, UPS, or DHL
- Technical support available
