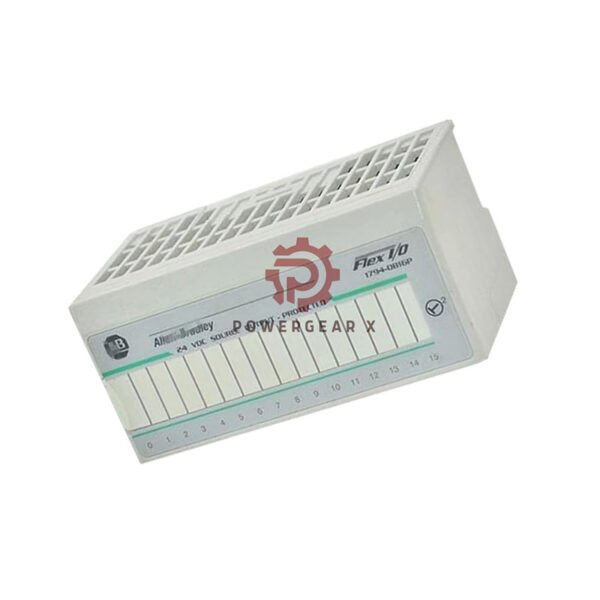

Allen-Bradley 1794-OB16P Flex I/O 24V DC Sourcing Output Module
The 1794-OB16P delivers 16 protected DC outputs for reliable control of industrial devices. It connects lights, solenoids, and relays with built-in electronic fusing for safety.
Product & Support Details
- Brand & Manufacturer: Allen-Bradley by Rockwell Automation
- Full Model Number: 1794-OB16P
- Warranty Coverage: 12 months from purchase date
- Global Shipping: FedEx, UPS, and DHL express options available
Electrical Ratings
- Output Type: 16 sourcing (positive) DC channels
- Output Voltage Range: 10 – 31.2V DC
- Max Current per Point: 500 mA
- Max Current per Module: 8 A
- On-state Voltage Drop: 0.5V DC max
- Off-state Leakage: 0.5 mA max
- Surge Capability: 1.5A for 50ms (repeatable every 2 seconds)
Physical & Environmental
- Connection Bases: 1794-TB2, TB3, TB3S, TB3K, TB3SK, TBN, TBNK
- Operating Temperature: 0 to 55°C (32 to 131°F)
- Storage Temperature: -40 to 85°C (-40 to 185°F)
- Vibration Resistance: 5g @ 10-500 Hz
- Shock Resistance: 30g operating, 50g non-operating
- Humidity Range: 5-95% non-condensing
System Integration
- Controller Compatibility: ControlLogix, CompactLogix, PLC-5, SLC-500
- Network Adaptability: EtherNet/IP, ControlNet, DeviceNet, PROFIBUS
- Power Consumption: 5W @ 31.2V DC max
- FlexBus Current: 60mA @ 5V DC
- Status Indicators: 16 yellow LEDs for output state
Installation Notes
- Requires compatible 1794 series terminal base
- Must use external 10-31.2V DC power supply
- Ensure proper wiring category for safety
- Follow ESD precautions during handling
