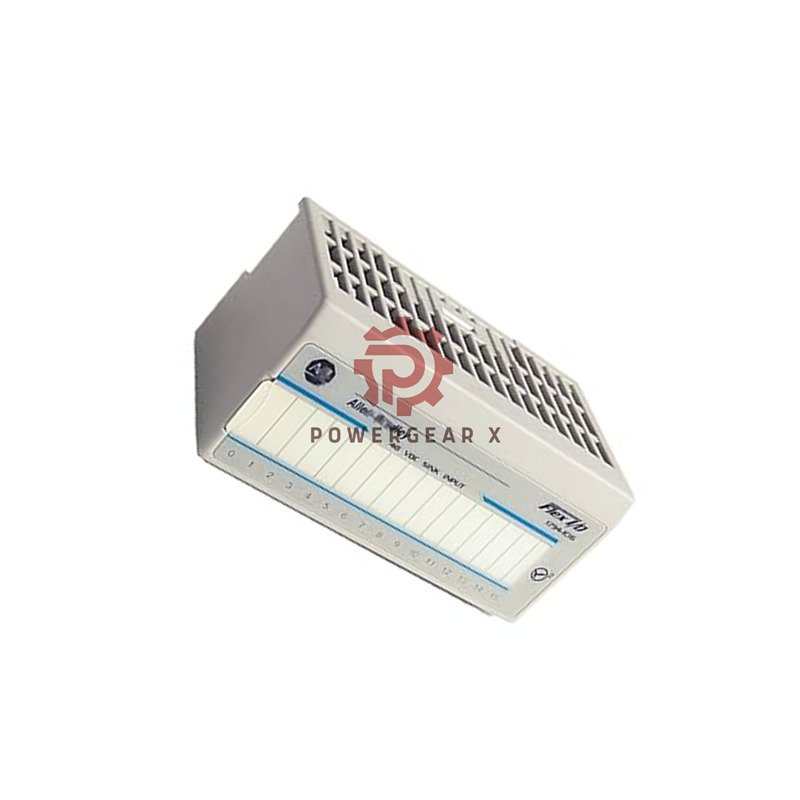

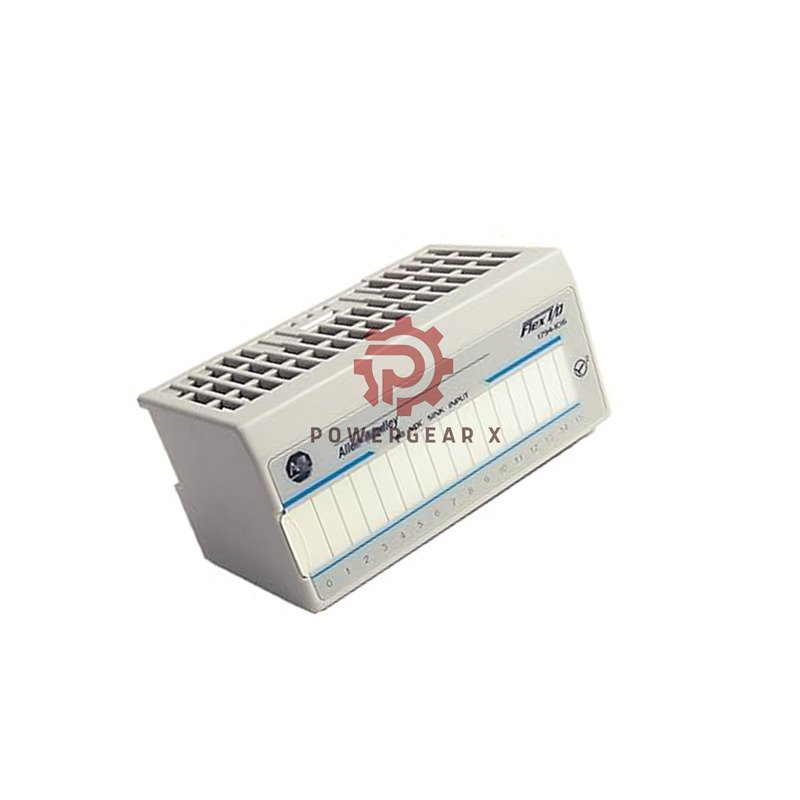

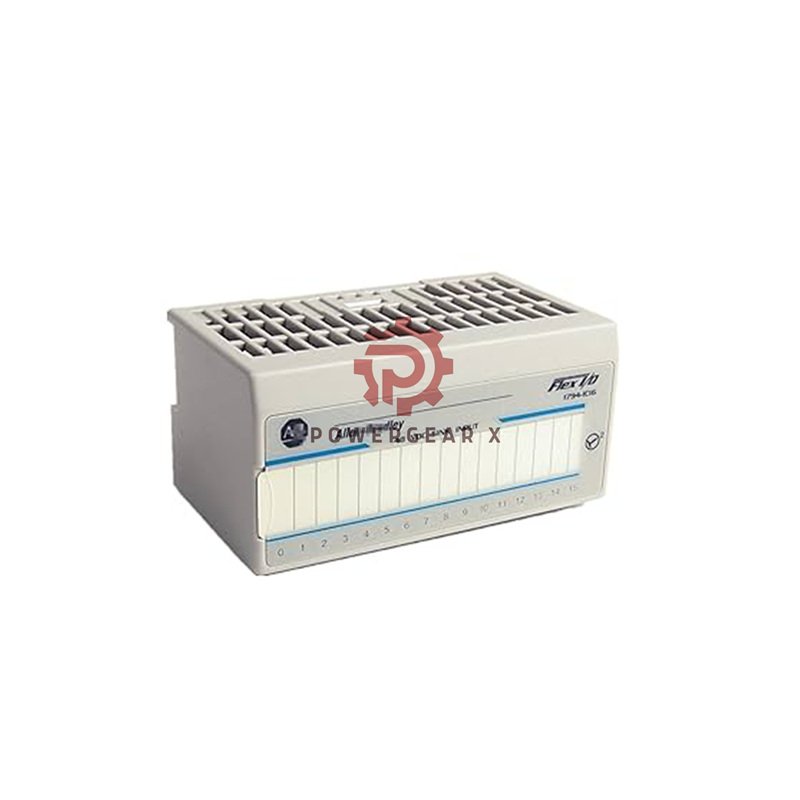

Allen-Bradley 1794-IC16 Flex I/O Digital Input Module
The Allen-Bradley 1794-IC16 is a robust DC input module from Rockwell Automation’s Flex I/O series. It delivers sixteen nonisolated sinking inputs for versatile industrial control. This module ensures reliable performance in demanding automation environments.
📊 Complete Technical Specifications
- Brand & Manufacturer: Allen-Bradley (Rockwell Automation)
- Model Number: 1794-IC16
- Product Type: Flex I/O Digital Input Module
- Input Channels: 16 Points, Nonisolated Sinking
- On-State Voltage: 30V DC (Min) / 60V DC (Max)
- On-State Current: 2.0mA @ 30V DC / 7.0mA @ 60V DC
- Off-State Voltage: 10V DC (Max)
- Off-State Current: 1.5mA (Min)
- Nominal Input Impedance: 11 kΩ
- Power Dissipation: 6.4W @ 60V DC max.
- Flexbus Current: 25mA @ 5V DC
🔧 Installation & Compatibility
- Designed for use with 1794-TB3S or 1794-TB3SK terminal base units.
- Simple installation via DIN rail or direct screw mounting.
- Operates in open-style enclosures for easy integration.
- We recommend using a surge protector for unstable power environments.
📦 Packaging & Shipping
- Package includes one 1794-IC16 module.
- We ship globally using reliable carriers like FedEx, UPS, and DHL.
❔ Frequently Asked Questions (FAQ)
- What is the input voltage range?
The module itself accepts 30-60V DC. With the correct terminal block, the system can handle 5-125V DC. - How many input points are available?
It provides 16 discrete nonisolated sinking input points. - Is it suitable for high-noise areas?
Yes, its high isolation voltage (1900V DC) provides excellent noise immunity. - What are the mounting options?
You can install it on a standard DIN rail or with panel screws.
