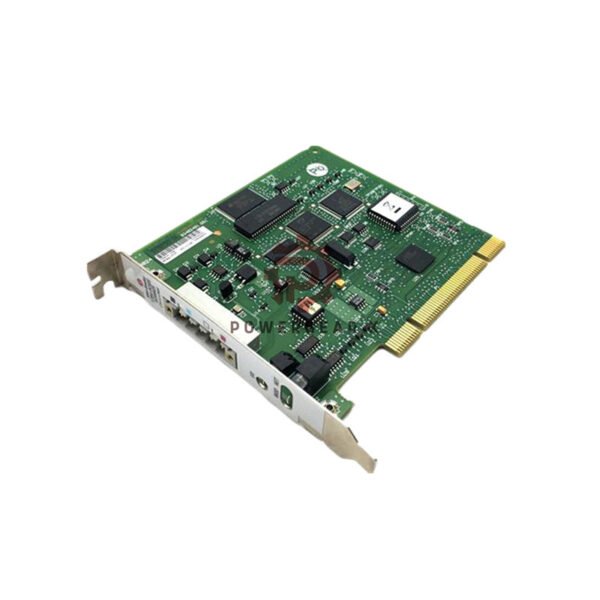

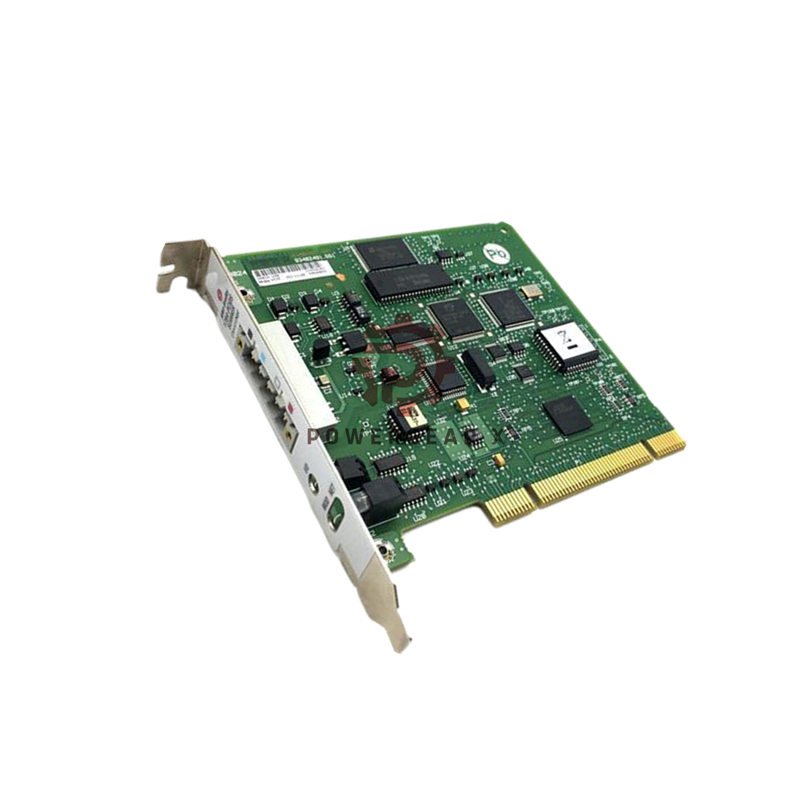

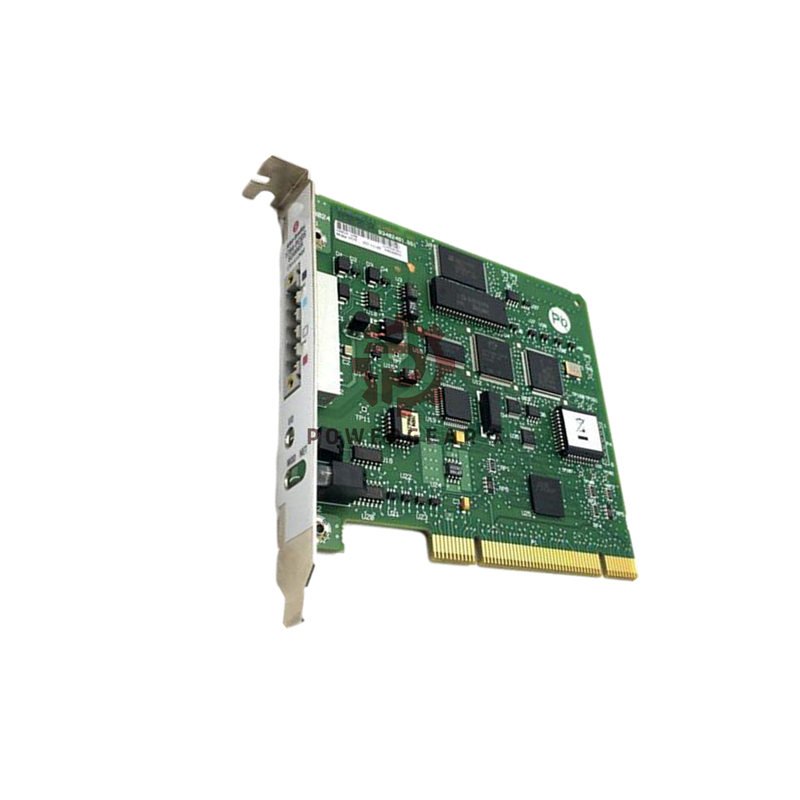

Allen-Bradley 1784-PCIDS DeviceNet PCI Scanner Card
The Allen-Bradley 1784-PCIDS lets your computer talk to DeviceNet networks. This PCI card is easy to install and needs no extra power. It is perfect for monitoring and controlling industrial devices.
📊 Detailed Technical Specifications
- Manufacturer: Rockwell Automation
- Complete Catalog Number: 1784-PCIDS
- Compatible Series: Series A & Series B
- Interface: PCI Rev. 2.1, 5V, 32-bit short card
- Power Consumption: 5V DC @ 625 mA (from PCI slot)
- DeviceNet Power: 24V DC @ 90 mA (Class 2)
- Input Image Table: 2048 bytes
- Output Image Table: 2048 bytes
- Operating Temp: 32°F to 131°F (0°C to 55°C)
- Storage Temp: -40°F to 185°F (-40°C to 85°C)
- Relative Humidity: 5% to 95% (non-condensing)
- Disk Space Required: 2 MB
- Enclosure Type: Open (handle with care)
- Dimensions: 4.2″ H x 4.721″ L
📦 Warranty & Shipping
- ✅ 12-month quality warranty
- ✅ Worldwide shipping via FedEx, UPS, DHL
- ✅ Secure anti-static packaging
- ✅ Fast order processing
❓ Frequently Asked Questions
- What is the difference between Series A and Series B?
Series A works with I/O Linx, Series B works with RSLinx software. - Can I install this card in any computer?
You need a PCI Rev. 2.1 compliant slot with 5V power. - What do the status indicators show?
They show I/O status, network status, and module status. - Is external power required for this card?
No, it receives power directly from the PCI slot. - How should I handle the card during installation?
Touch only the corners and use an anti-static wrist strap.
