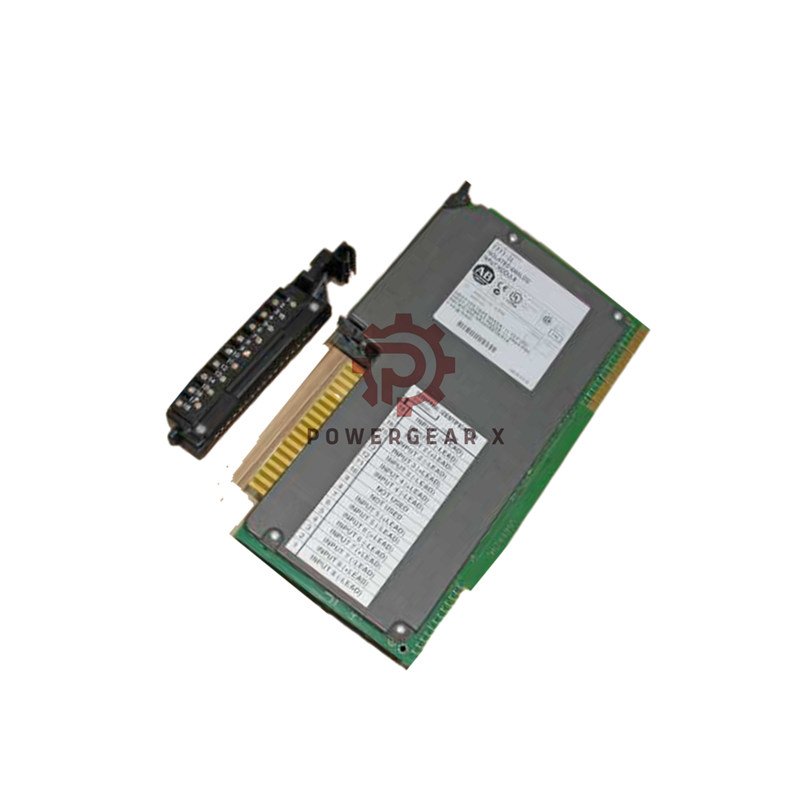

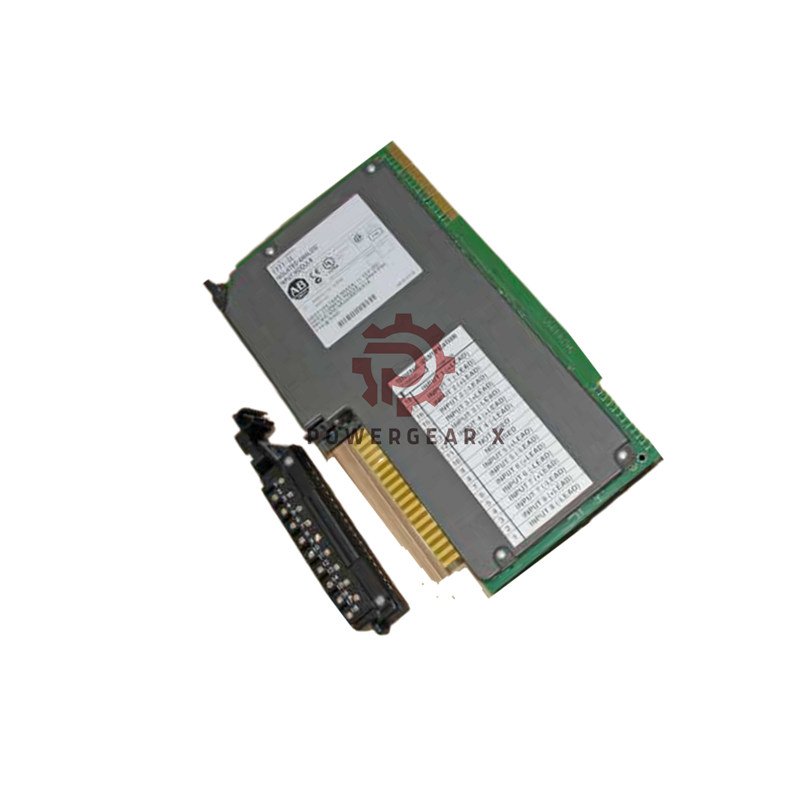

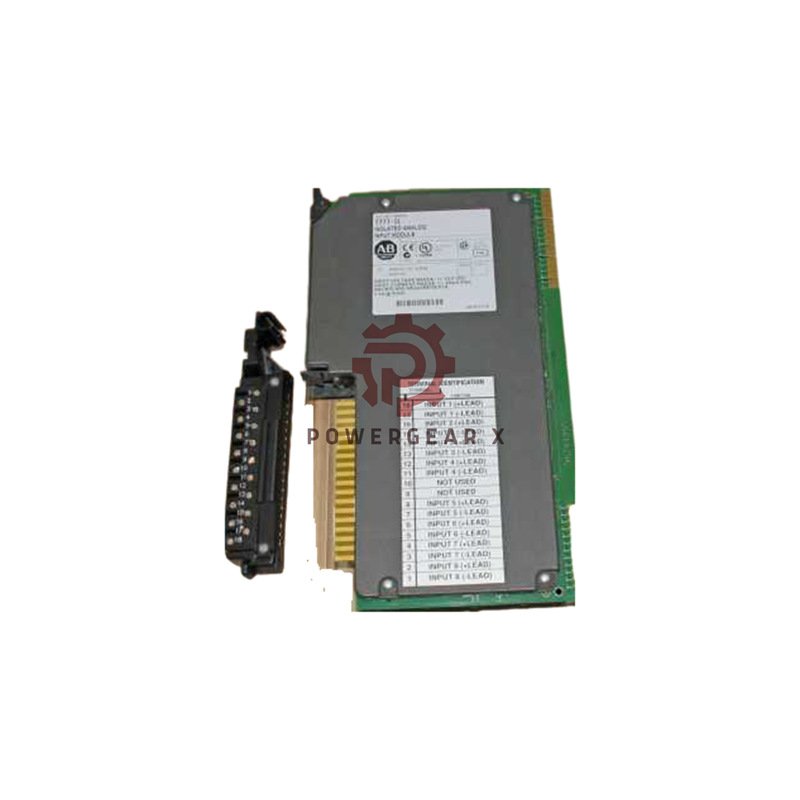

Allen-Bradley 1771-ILK Isolated Analog Input Module

The 1771-ILK module provides precision analog input for PLC 5 systems. It offers high isolation and excellent noise immunity for critical measurements.

Product Highlights

• Brand: Rockwell Automation
• Series: PLC 5
• Model: 1771-ILK
• 8 fully isolated differential inputs (1000V)
• High 15-bit + sign resolution for precise measurements
• No external power supply required
• Conformal coating for protection in harsh environments
• Works with voltage and current signals

Technical Specifications

• Input Channels: 8 isolated differential
• Isolation Rating: 1000V between channels
• Resolution: 15 bits + sign
• Update Time: 500ms for all 8 channels
• Voltage Ranges: 0-5V, 1-5V, ±5V, 0-10V, ±10V DC
• Current Ranges: 4-20mA, 0-20mA, ±20mA
• Data Format: Natural Binary or BCD (±9999)
• Backplane Current: 1.3 Amps
• Operating Temperature: 0-60°C
• Wiring Arm: 1771-WF included

Package Contents

• 1 × 1771-ILK Analog Input Module
• Installation documentation
• 12-month warranty
• Worldwide shipping via FedEx, UPS, DHL
