Product details

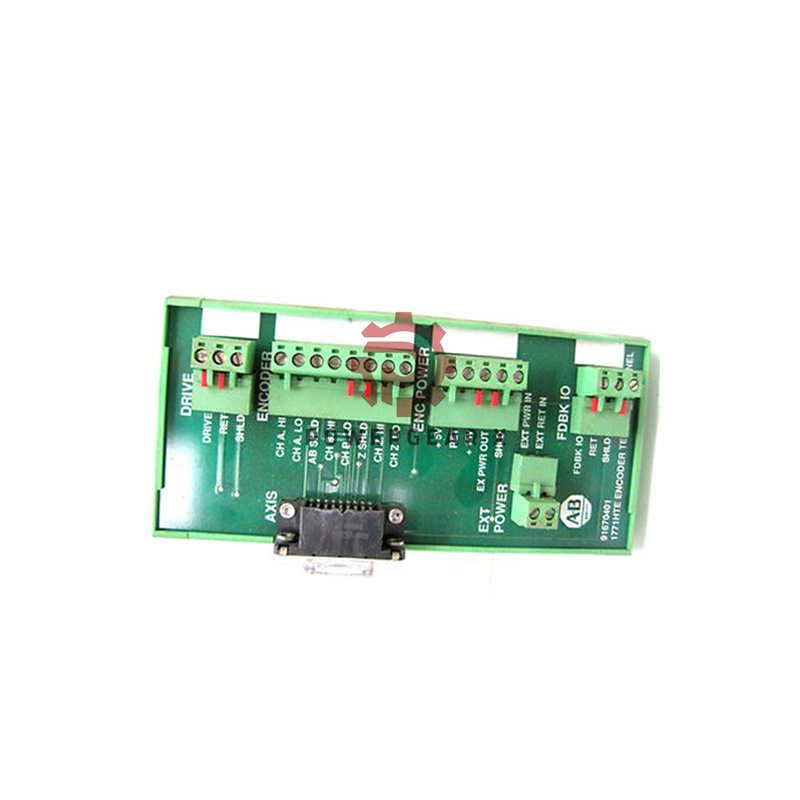

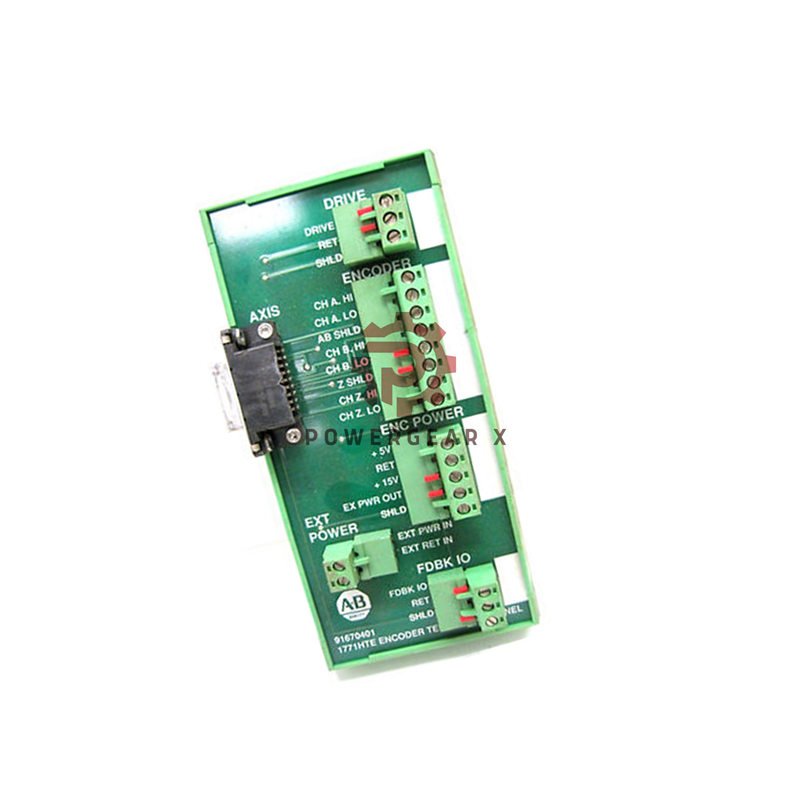

Allen-Bradley 1771-HTE Encoder Termination Module
The Allen-Bradley 1771-HTE provides reliable signal interfacing for PLC-5 systems. This encoder termination module ensures clean signal transmission in industrial environments. It offers easy DIN rail mounting and flexible configuration options.
Detailed Technical Specifications
- Brand: Allen-Bradley
- Manufacturer: Rockwell Automation
- Model Number: 1771-HTE
- Product Type: Encoder Termination Module
- Compatible Series: PLC-5 Systems
- Mounting Method: DIN-type rail
- Power Supply Voltage: 24 V DC
- Maximum Cable Length: 90 feet (with external power)
- Cable Type: 16GA, 1 pair twisted, shielded
- Connector Type: Pluggable connectors
- Dimensions: 6.25 x 3 inches (15.8 x 7.5 cm)
- Encoder Support: +5VDC, +15VDC encoders and resolvers
- Operating Temperature: 0-60°C (32-140°F)
- Signal Integrity: Shielded design prevents interference
- Installation: Uses termination panels for organized wiring
Package Contents
- One 1771-HTE Encoder Termination Module
- Installation documentation and user guide
Shipping & Warranty Information
- All purchases include 12-month warranty
- Fast worldwide shipping via FedEx, UPS, and DHL
Frequently Asked Questions
- What types of encoders work with this module?
The 1771-HTE supports +5VDC encoders, +15VDC encoders, and resolvers. - How far can I run cables with this module?
It supports up to 90 feet with external power and 40 feet without external power. - What mounting options are available?
It features DIN-type rail mounting for easy installation in control panels. - What cable type should I use with this module?
Use 16-gauge, one-pair twisted, shielded cable for best performance. - Is this module compatible with all PLC-5 systems?
Yes, the 1771-HTE works with all Allen-Bradley PLC-5 series controllers.
