1769-PB2 I/O Power Supply – Allen-Bradley CompactLogix Series

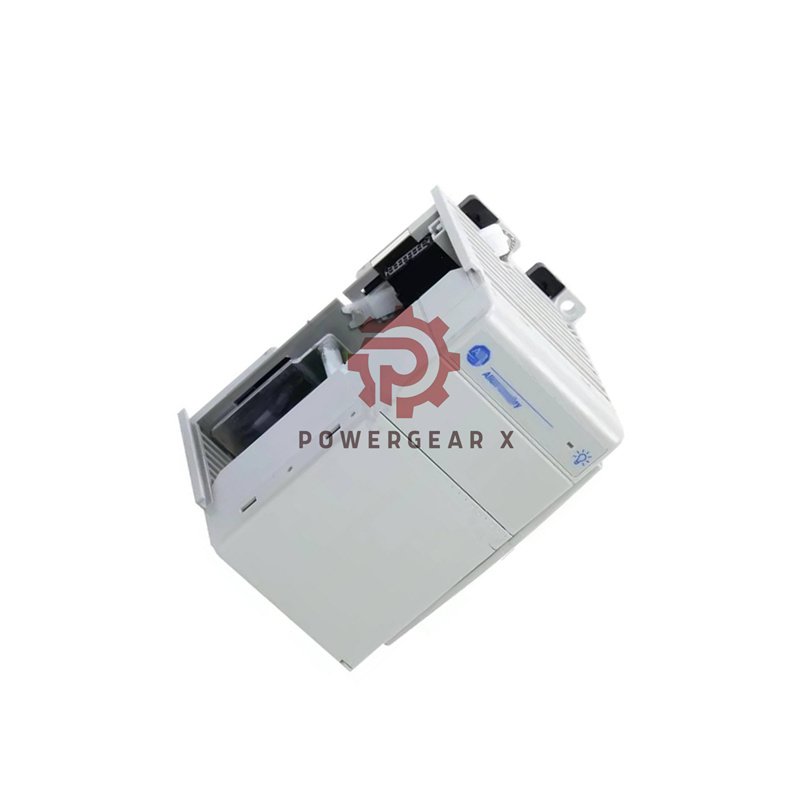

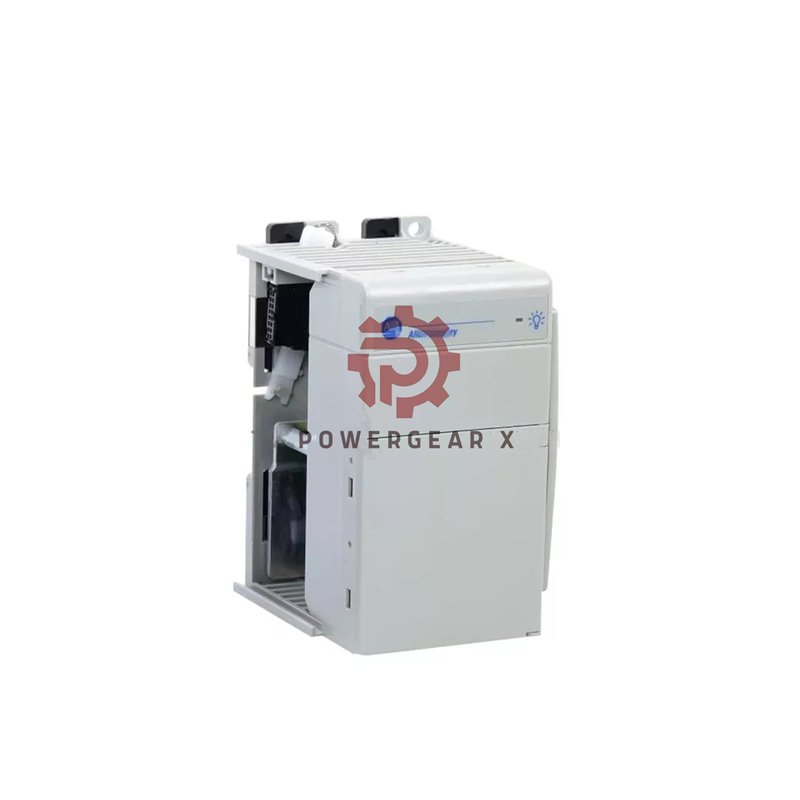

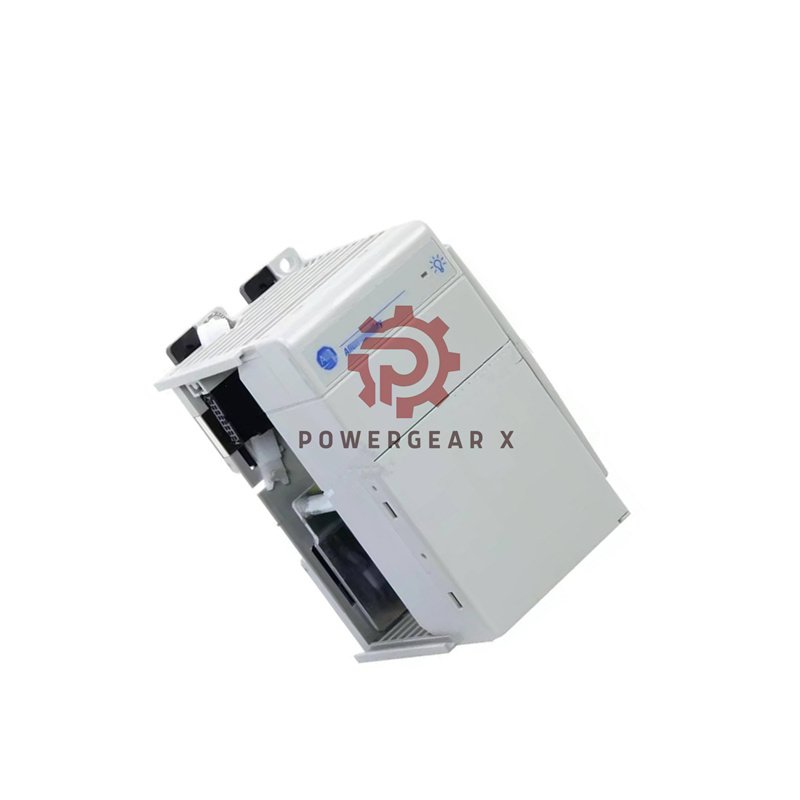

Allen-Bradley 1769-PB2 CompactLogix Power Supply

The 1769-PB2 is a reliable DC power supply for CompactLogix systems. It provides stable power for up to 16 I/O modules. This unit ensures your automation system runs smoothly and efficiently.

Technical Details

• Brand: Allen-Bradley
• Model: 1769-PB2
• Input Voltage: 19.2-31.2V DC
• Output Current: 2.0A @ 5V DC, 0.8A @ 24V DC
• Max Modules: 16 CompactLogix I/O modules
• Power Dissipation: 7.5W @ 60°C
• Inrush Current: 30A maximum
• Fuse Type: Wickmann 19195-3.15A or Littelfuse 02153.15MXP
• Operating Temp: 0°C to 60°C (32°F to 140°F)
• Weight: 1.07 lb (485 g)
• Certifications: c-UL-us, CE, C-Tick

Installation & Support

• Simple mounting on DIN rail or panel
• Use 14 AWG wire for best performance
• Supports modules on both left and right sides
• 12-month warranty included
• Worldwide shipping via FedEx, UPS, DHL

Common Questions

• How many modules can it power?
  It supports up to 16 CompactLogix I/O modules.
• What input voltage does it need?
  It works with 19.2-31.2V DC input.
• Is the fuse user-replaceable?
  Yes, it uses standard replaceable fuses.
• Can it handle power surges?
  Yes, it withstands up to 30A inrush current.
• What safety certifications does it have?
  It is c-UL-us, CE, and C-Tick certified.
