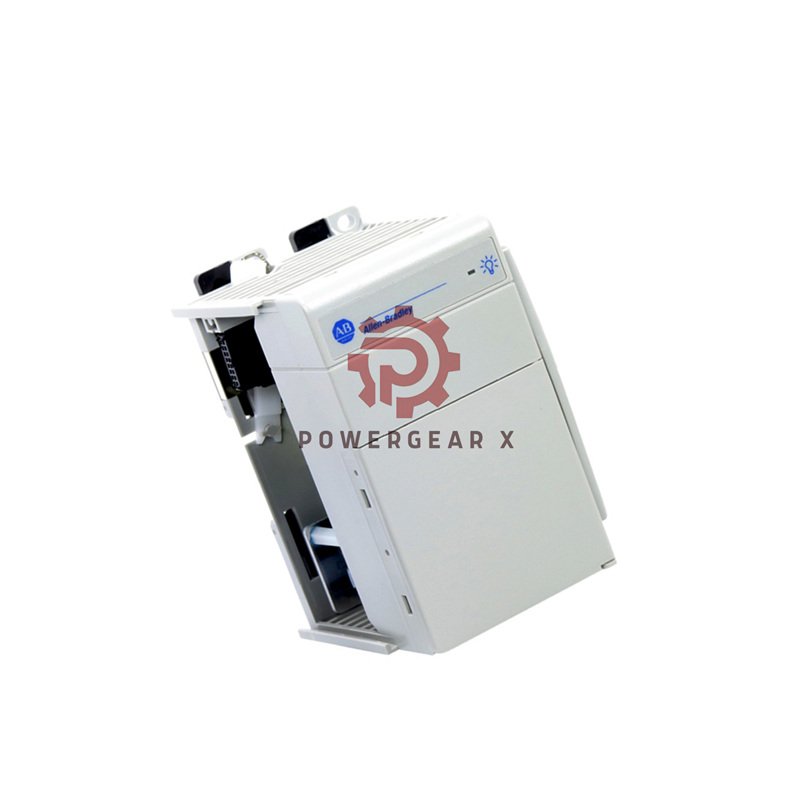

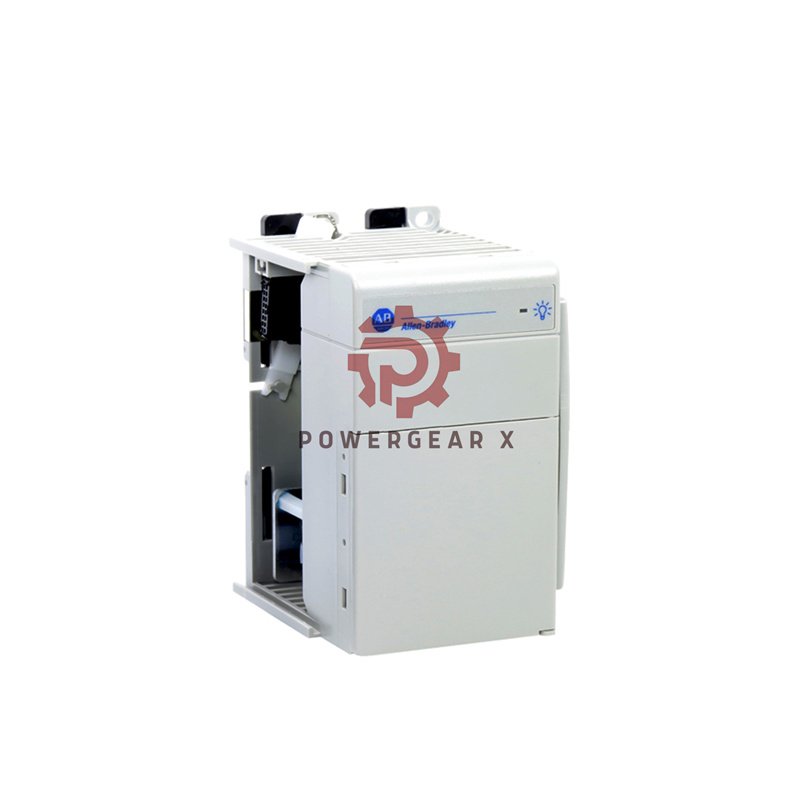

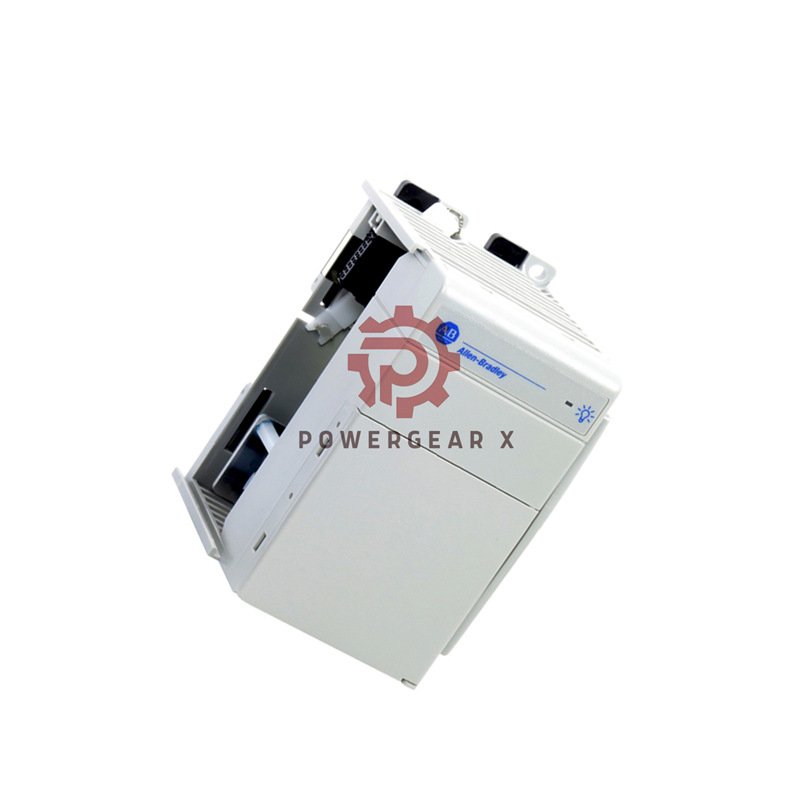

Allen-Bradley 1769-PA2 CompactLogix AC Power Supply
The 1769-PA2 is a reliable power supply module for CompactLogix systems. It provides stable power for your automation components. This unit fits right into your 1769 assembly with easy installation.
Technical Details
- Model: Allen-Bradley 1769-PA2
- Input Voltage: 85-265V AC
- Input Frequency: 47-63 Hz
- Output Current: 2.0A @ 5V DC, 0.8A @ 24V DC
- Power Rating: 100VA @ 120V AC, 130VA @ 240V AC
- Fuse: 3.15A (Wickmann 19195 or Littelfuse 02183.15MXP)
- Weight: 1.16 lb (525 g)
- Dimensions: 4.65 x 2.76 x 3.43 inches
- Wire Size: 14-22 AWG solid, 16-22 AWG stranded
- Shipping: 2 lbs, 8x8x5 inches via FedEx, UPS, DHL
- Warranty: 12 months
Frequently Asked Questions
- How many modules can this power supply support?
It can power up to 16 I/O modules (8 on each side). - What is the replacement fuse part number?
Use Wickmann 19195-3.15A or Littelfuse 02183.15MXP. - Can I use this power supply in different countries?
Yes, it accepts 85-265V AC, suitable for most regions. - Does it require special cooling?
Keep 50mm space around it for proper air flow. - Is this power supply certified for industrial use?
Yes, it has UL, CE, and C-Tick certifications.
