Product details

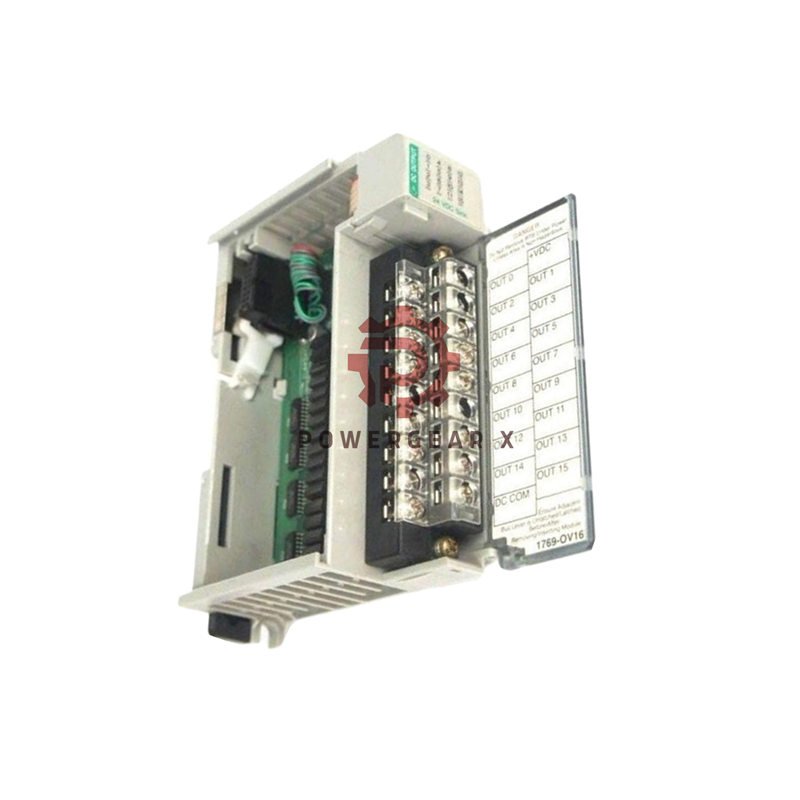

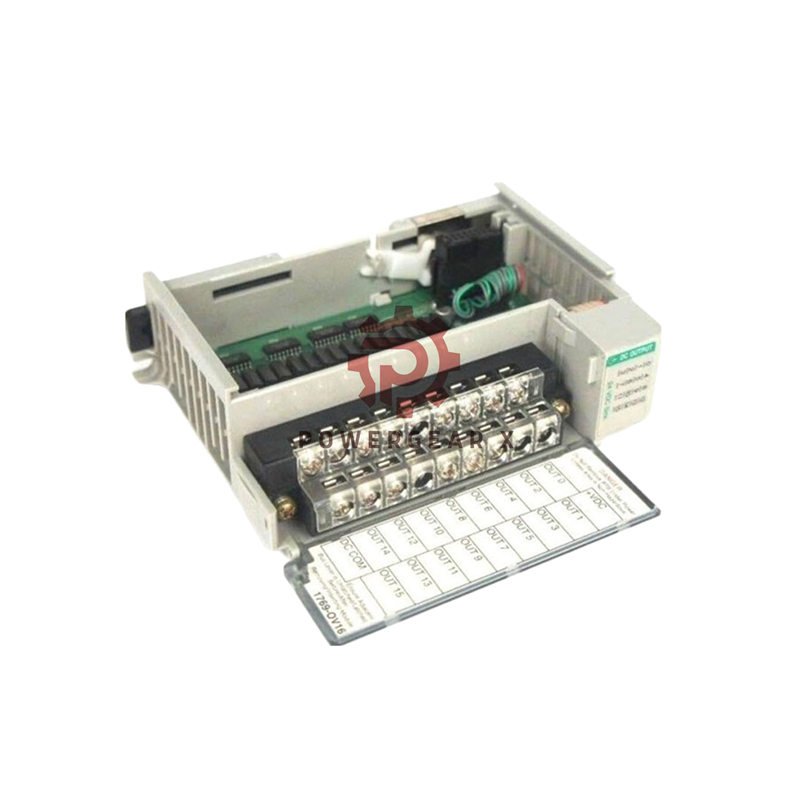

Allen-Bradley 1769-OV16: 16-Channel Sinking Output Module
The Allen-Bradley 1769-OV16 provides sixteen sinking output channels for industrial control applications. This CompactLogix module delivers reliable 24V DC switching for various automation needs. It offers excellent performance in a compact design.
Technical Specifications
- Brand & Model: Allen-Bradley 1769-OV16
- Output Channels: 16 sinking outputs
- Voltage Range: 20.4-26.4V DC (24V DC nominal)
- Current Rating: 0.5A @ 60°C, 1.0A @ 30°C per point
- Module Current: 4.0A @ 60°C, 8.0A @ 30°C total
- Surge Current: 2.0A for 10ms (repeatable every 2s)
- Response Time: 0.1ms ON, 1.0ms OFF
- Leakage Current: 1.0mA maximum @ 26.4V DC
- Backplane Current: 200mA @ 5.1V DC
- Power Dissipation: 2.06W maximum
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Wire Size: 14-22 AWG solid, 16-22 AWG stranded
- Weight: 0.61lbs (277g)
Package Contents
- 1769-OV16 Output Module
- Removable terminal block
- Installation documentation
- 12-month warranty
- Shipped via FedEx, UPS, or DHL
Frequently Asked Questions
- What does sinking output mean?
It means the module provides ground connection to activate devices - How does temperature affect performance?
Current rating decreases from 1.0A to 0.5A as temperature rises from 30°C to 60°C - Can it handle surge currents?
Yes, 2.0A for 10ms repeated every 2 seconds - What controllers work with this module?
CompactLogix and MicroLogix 1500 systems - Is diagnostic feedback available?
Yes, includes output status indicators for each channel
