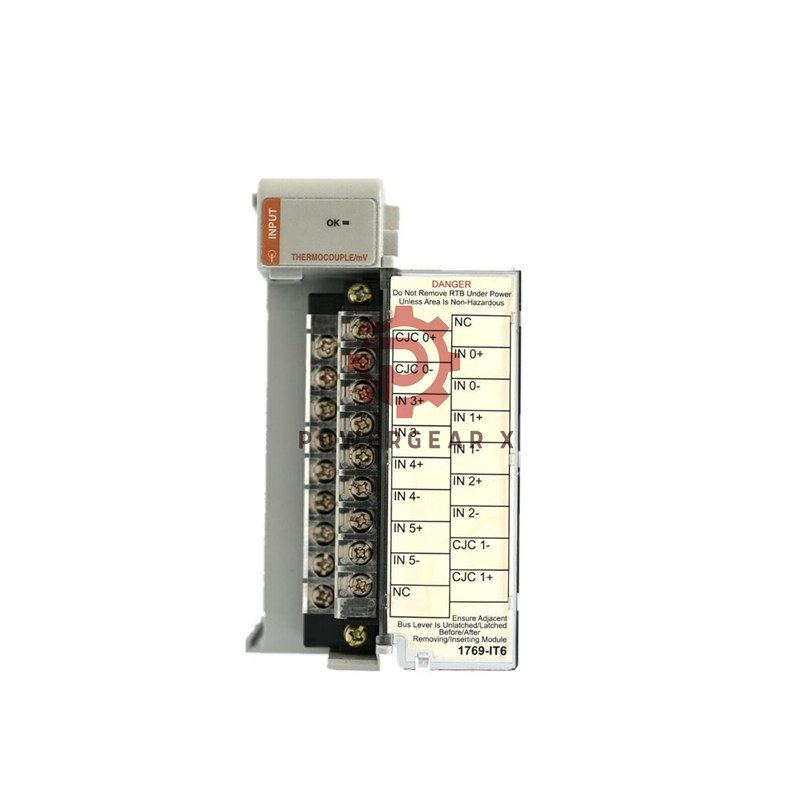

Allen-Bradley 1769-IT6: 6-Channel Thermocouple/mV Input Module
The Allen-Bradley 1769-IT6 offers six isolated input channels for temperature and millivolt measurement. This CompactLogix module works with various thermocouple types and low-voltage signals. It provides high accuracy for industrial process applications.
Technical Specifications
- Brand & Model: Allen-Bradley 1769-IT6
- Input Channels: 6 isolated channels + 2 CJC sensors
- Thermocouple Types: J, K, T, E, R, S, B, N, C
- Millivolt Ranges: ±10mV, ±50mV
- Accuracy: ±0.03% nonlinearity
- CJC Accuracy: ±1.0°C (±1.8°F)
- Resolution: 16-bit delta-sigma converter
- Update Rate: Configurable 10Hz to 1kHz
- Isolation: Channel-to-channel and channel-to-bus
- Power Consumption: 100mA @ 5.1V DC, 40mA @ 24V DC
- Operating Temperature: 0° to 60°C (32° to 140°F)
- Wire Size: 14-22 AWG (2.5-0.5mm²)
- Noise Rejection: 115dB CMRR, 85dB NMRR
Package Contents
- 1769-IT6 Thermocouple/mV Input Module
- Removable terminal block
- Installation documentation
- 12-month warranty
- Shipped via FedEx, UPS, or DHL
Frequently Asked Questions
- What thermocouple types are supported?
Types J, K, T, E, R, S, B, N, and C thermocouples - Does it require external power?
No, it receives power through the backplane - How often does auto-calibration occur?
At power-up and can be programmed every 5 minutes - What is the temperature measurement range?
-270°C to +2315°C depending on thermocouple type - Can I mix different sensor types?
Yes, each channel can be individually configured
