Product details

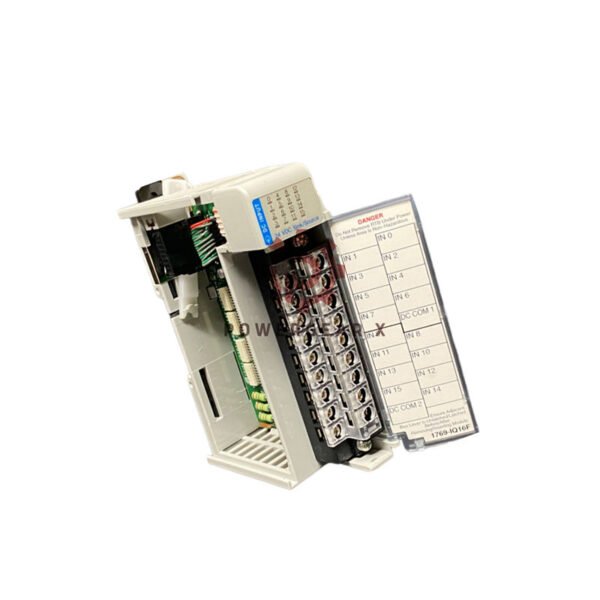

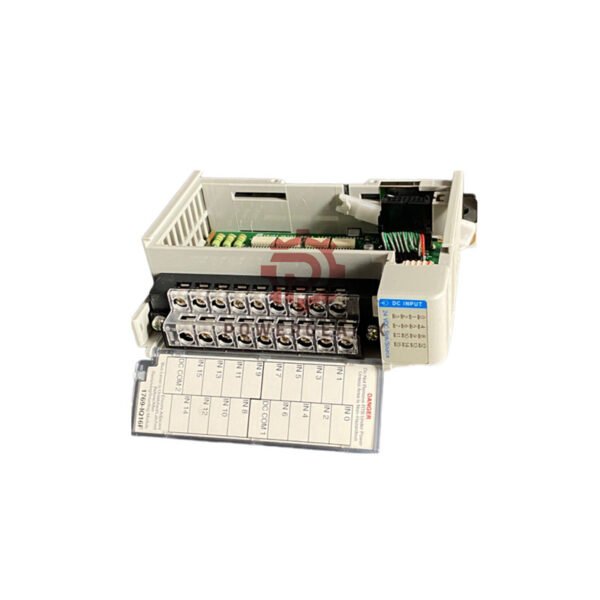

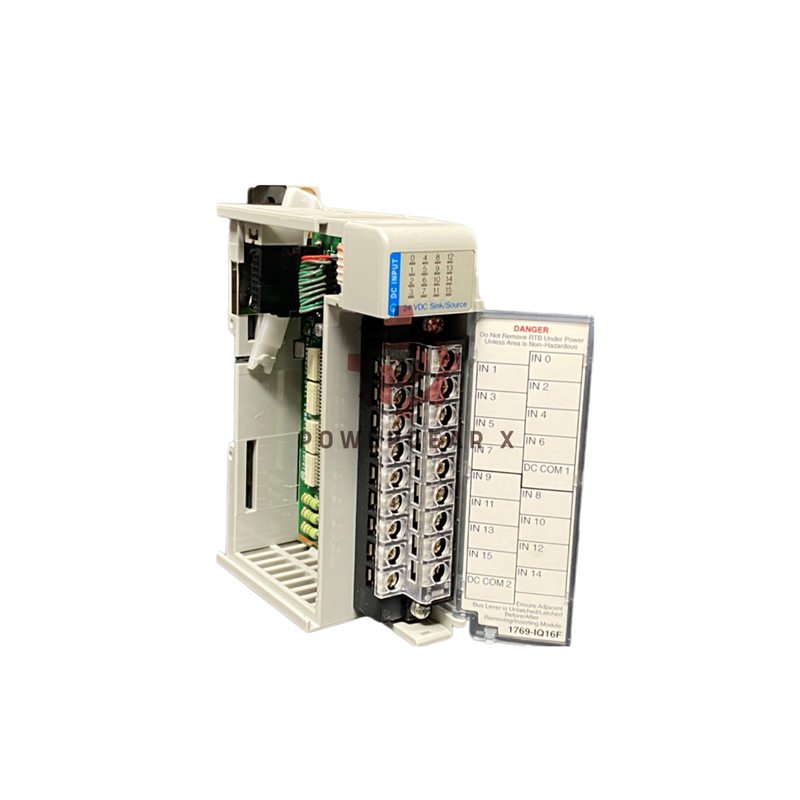

Allen-Bradley 1769-IQ16F: High-Speed Digital Input Module
The Allen-Bradley 1769-IQ16F is a premium 16-point DC input module. It is part of the renowned CompactLogix series from Rockwell Automation. This module offers exceptional flexibility by supporting both sinking and sourcing field devices. Its high-speed operation makes it ideal for demanding automation applications.
Complete Technical Specifications
- Brand: Allen-Bradley (Rockwell Automation)
- Model: 1769-IQ16F (Series A & B)
- Type: 16-Point Sink/Source Digital Input
- Voltage Range: 10-30V DC
- Current Consumption: 110mA @ 5.1V DC
- Power Dissipation: 3.55 Watts
- Isolation: 75V DC (tested at 1679V DC for 1s)
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Wire Size: 22-14 AWG (solid or stranded copper)
- Weight: 2 lbs (0.9 kg)
Packaging List & Shipping
- One (1) Allen-Bradley 1769-IQ16F module.
- Shipping Dimensions: 8 x 8 x 5 inches.
- Shipping Weight: 2 pounds.
- Fast global shipping via FedEx, UPS, or DHL.
Frequently Asked Questions (FAQ)
- What is the 1769-IQ16F used for? It reads digital signals from sensors and switches.
- Is it suitable for high-speed applications? Yes, it offers selectable filter times for high-speed counting.
- Can I replace the terminal block? Yes, the replaceable part number is 1769-RTBN18.
- What controllers is it compatible with? It works with CompactLogix control systems.
