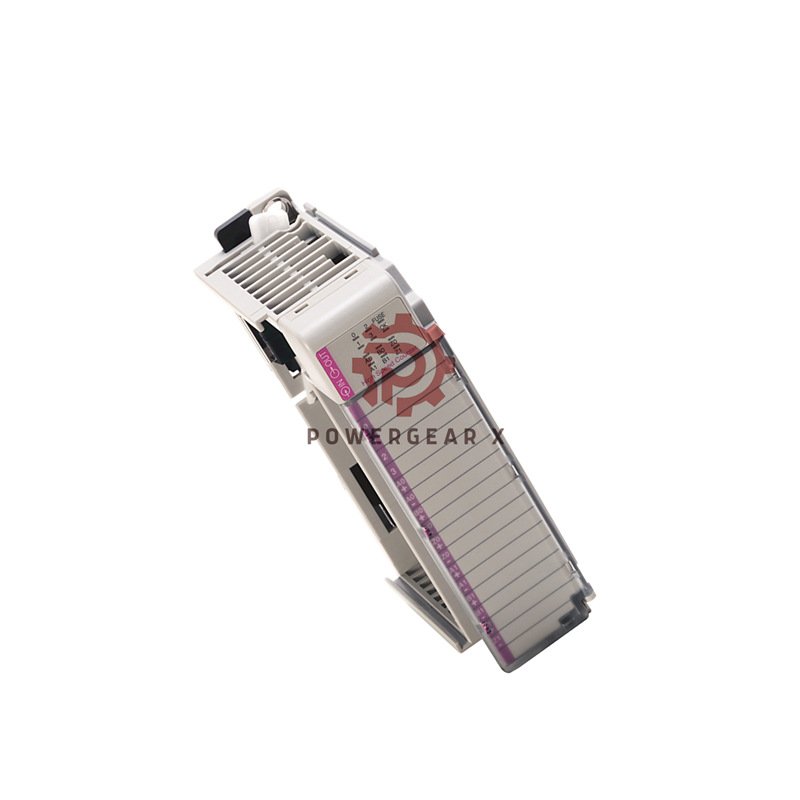

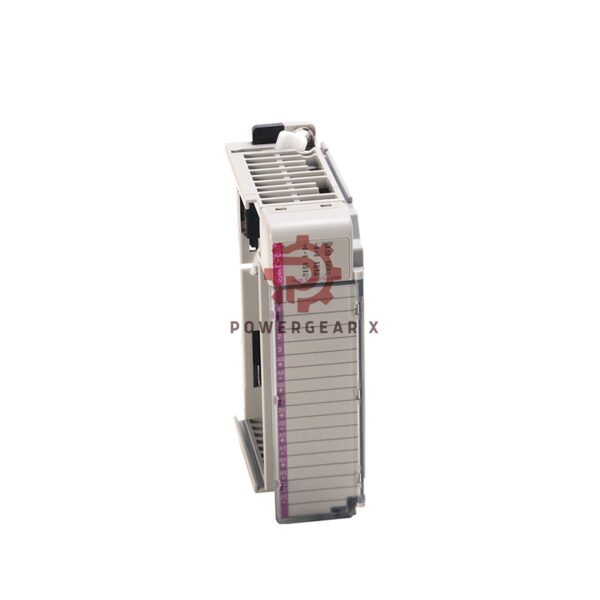

Allen-Bradley 1769-IM12 240V AC Input Module
The 1769-IM12 is a high-quality 12-point AC input module from Allen-Bradley’s CompactLogix series. It provides reliable 240V AC signal handling for industrial control systems with robust performance.
Technical Specifications
- Brand: Allen-Bradley / Rockwell Automation
- Model: 1769-IM12
- Input Points: 12 AC inputs
- Voltage Range: 159-264V AC
- Frequency: 47-63Hz
- Input Current: 100mA normal, 12mA inrush
- Input Impedance: 27kΩ at 50Hz, 23kΩ at 60Hz
- Isolation Voltage: 132V AC operational, 1836V AC tested
- Power Dissipation: 3.65W
- Response Time: 20ms ON/OFF delay
- Wire Size: 22-14 AWG (solid), 22-16 AWG (stranded)
- Operating Temperature: 0-60°C (32-140°F)
- Weight: 300g (0.61 lbs)
- Dimensions: 118 x 35 x 87 mm (4.65 x 1.38 x 3.43 in)
Compatibility & Installation
- Compatible Systems: CompactLogix control systems
- Terminal Block: 1769-RTBN18 replacement
- Mounting: DIN rail or panel mount
- Distance Rating: 8 modules from power supply
- Enclosure: Open-style for heat dissipation
Environmental Ratings
- Shock Resistance: 30G maximum
- Vibration Resistance: 5G at 10-500Hz
- Altitude Rating: 2000 meters (6561 feet)
- Humidity Tolerance: 95% non-condensing
- Certification: IEC Class 2 reinforced insulation
Package Contents
- One 1769-IM12 AC input module
- Installation documentation
- 12-month manufacturer warranty
Shipping & Delivery
- Shipping Weight: 2 lbs (packaged)
- Box Dimensions: 8 x 8 x 5 inches
- Carriers: FedEx, UPS, DHL
- Delivery Time: 2-5 business days
Frequently Asked Questions
- What voltage range does the 1769-IM12 support?
It supports 159-264V AC input range at 47-63Hz frequency. - Is this module compatible with standard wiring?
Yes, it works with 22-14 AWG solid or 22-16 AWG stranded copper wire. - What is the response time of this input module?
It has a 20ms response time for both ON and OFF signals. - Can this module withstand industrial environments?
Yes, it’s rated for 30G shock and 5G vibration resistance. - What safety certifications does this module have?
It features IEC Class 2 reinforced insulation tested at 1836V AC.
