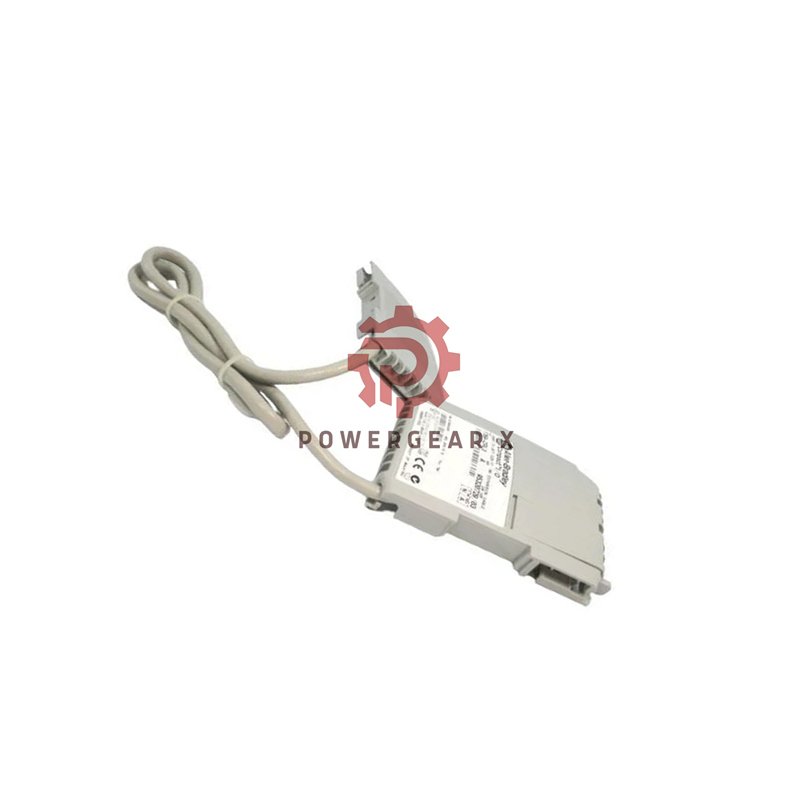

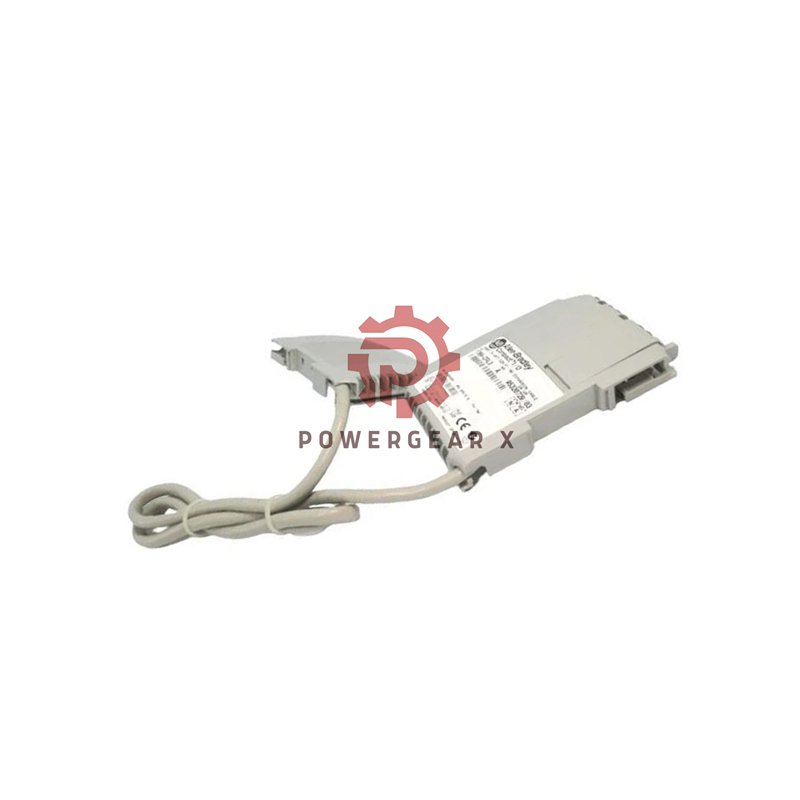

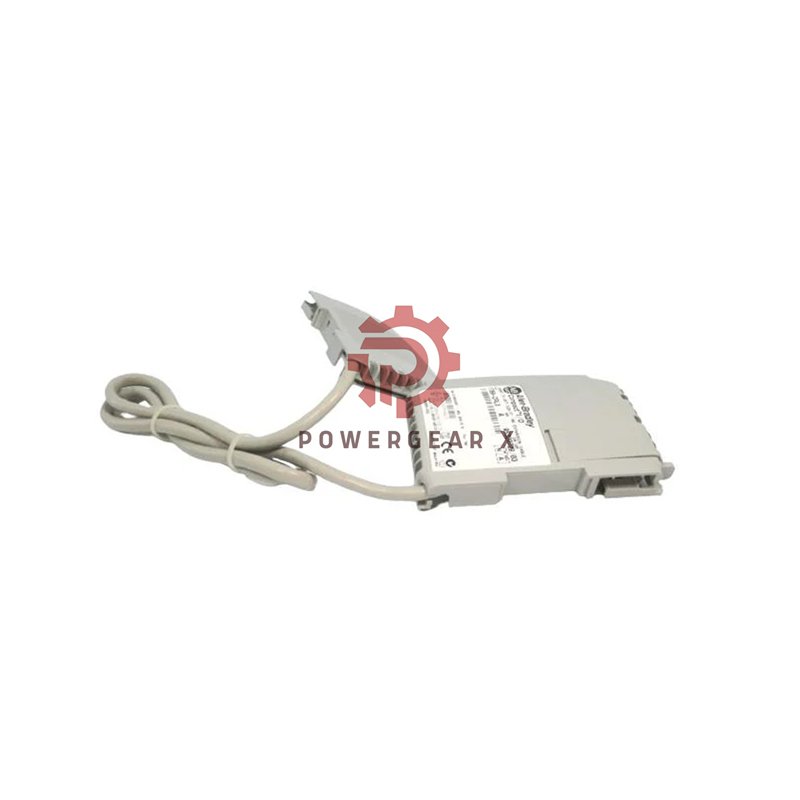

Allen-Bradley 1769-CRL3 CompactLogix Expansion Cable
The 1769-CRL3 is a right-to-left expansion cable for CompactLogix systems. It connects I/O banks and extends your automation setup. This 1-meter cable offers flexible configuration options.
Technical Specifications
- Model: Allen-Bradley 1769-CRL3
- Length: 1 meter (3.28 feet)
- Operating Temperature: 0 to 60°C (32 to 140°F)
- Isolation Voltage: 30V continuous
- Backplane Current: 1.4A at 24V
- Power Consumption: 33.6W maximum
- Vibration Resistance: 5G operating, 7.5G panel mounted
- Shock Resistance: 30G operating, 40G non-operating
- Humidity Rating: 5-95% non-condensing
- Altitude Rating: Up to 6561 feet
- Shipping: 2 lbs, 8x8x5 inches via FedEx, UPS, DHL
- Warranty: 12 months
Common Questions
- How many cables can I use in one system?
Maximum 2 cables for 3 I/O banks with power supplies. - What mounting orientations does it support?
Both horizontal and vertical system configurations. - What is the temperature range for operation?
It works from 0 to 60°C (32 to 140°F). - Can this cable connect different module types?
Yes, it works with all 1769 CompactLogix modules. - What is the cable’s vibration resistance?
It handles 5G during operation and 7.5G when panel mounted.
